Solenoid Valve for Gas/Air, NC, 500 mbar, IP65, EN 161
Mfr # KS88024718
Zoro # G315419839
Specifications
Product Information
Description

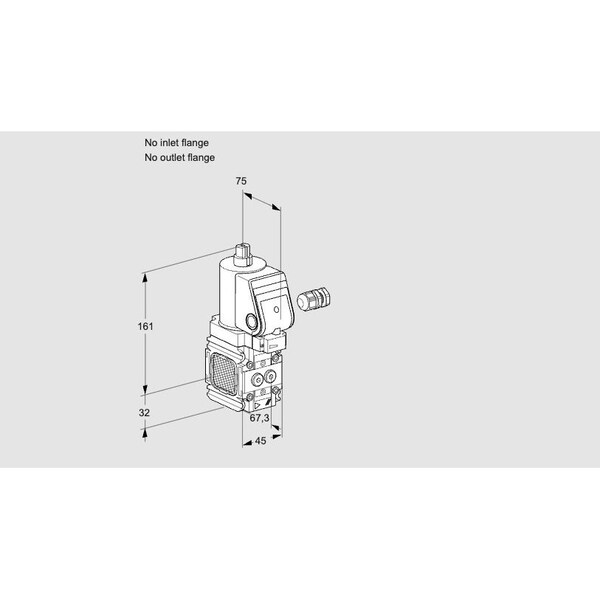

The HONEYWELL KROMSCHRODER VAS1-R/NWGR is a Class A solenoid valve intended for use in systems requiring automatic shut-off of gas and air, meeting EN 161 standards. The valve is normally closed (NC) and opens upon energization. It is rated for a maximum operating pressure of 500 mbar. It features a pilot lamp, flow adjustment capability, and an IP65 rating for ingress protection. The unit holds EU certification as well as FM and CSA approvals, with compatibility with systems that require components meeting SIL 3 and PL e standards.
Key features include:
- Size range: 1 to 9; nominal diameter (DN): 10 to 125
- Connection options: threaded or flanged
- Operation modes: quick opening/quick closing or slow opening/quick closing
- Mains voltage options: 24 V DC, 120 V AC, or 230 V AC
- Electrical connection via terminal block
- Available versions include models with position indicator, visual indicator, fitted bypass/pilot gas valve, or integrated pressure switches
