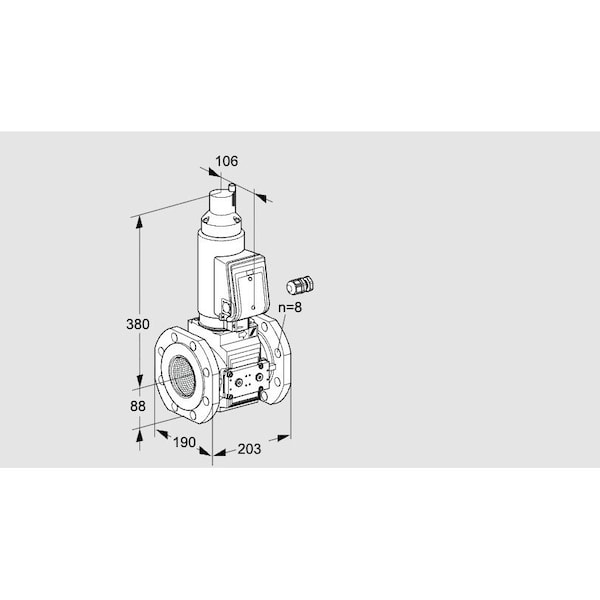

Solenoid Valve - VAS780F05L, 80mm Flange, Gas Shut-Off, IP65

The HONEYWELL KROMSCHRODER VAS780F05L is a solenoid valve intended for use in applications requiring automatic shut-off of gas and air. Classified as a Class A valve to EN 161 standards, it operates in a normally closed position when de-energized and supports maximum operating pressures up to 500 mbar. This model features an ISO flange connection (80 mm nominal diameter), pilot lamp, flow adjustment mechanism, and IP65-rated enclosure. It holds EU certification as well as FM and CSA approvals.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125 mm
• Connection options: Threaded or flanged
• Available in quick opening/closing or slow opening/quick closing variants
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Additional versions offered with position indicators, visual indicators, fitted bypass/pilot gas valves, or pressure switches (DG../VC)
• Holds certification indicating compliance with requirements up to SIL 3 and PL e
