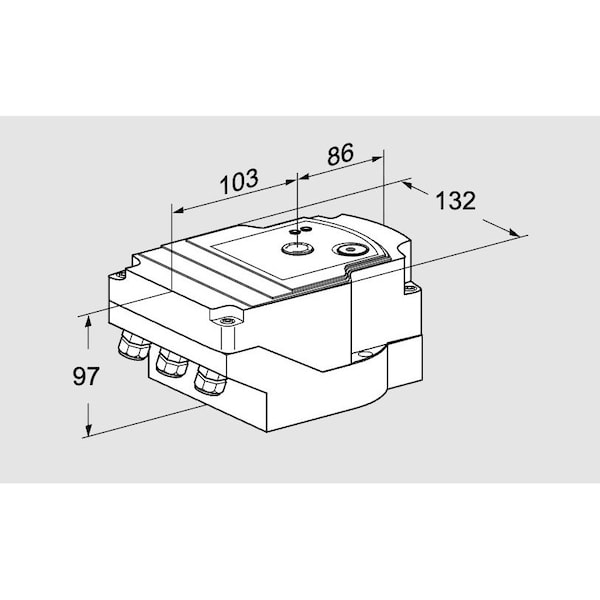

Valve Actuator - IC40A2A, 0-90° Rotary, 100-230V AC, Programmable

The HONEYWELL KROMSCHRODER IC40A2A is a reversible gear motor intended for use with gas and air valve actuation, capable of rotary movement within a range of 0 to 90 degrees. Classified as a valve actuator, this unit supports complex applications with programmable functions for adjustment according to application requirements. It also includes statistics and fault history functionalities.

Key features include:

• Programmable running time
• Mains voltage range: 100 to 230 V AC
• Torque output: 2.5 Nm (at 50 Hz) and 3 Nm
• Multiple control options: three-point step, two-point, PLC, or continuous signal
• Integrated position feedback and externally readable position indicator
