Shop HONEYWELL

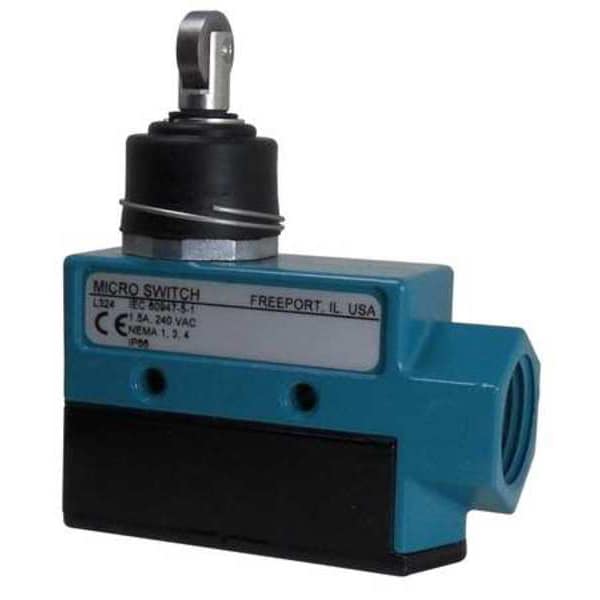

Limit Switch, Cross Roller, Plunger, 1NC/1NO, 15A at 600V AC, Actuator Location: Top

  • Mfr # BZE6-2RN81
  • Zoro # G3941725
product price:
$
182.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Cross Roller, Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
15A at 600V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
BZE6-2RN81
Zoro #
G3941725
UPC #
-
Country of Origin
United States
Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Cross Roller, Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
15A at 600V
DC Contact Rating - Limit Switch
2A at 250V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Actuator Style
Cross Roller-Plunger
Actuator Location
Top
Contact Form
1NO/1NC
Mounting Hole Spacing - Limit Switch
1.00 in
AC Contact Rating
15 A @ 600 V
Standards
CE, CSA, UL Listed
Mounting Hole - Limit Switch
(2) 0.22 in dia
NEMA Rating
1, 3, 4
Roller Material
Steel
Operating Temp. Range
-25 Degrees to 160 Degrees F
Electrical Connection
Screw Terminals
Series
BZE6
Boot Sealed Actuator (Limit Switch)
Yes
Limit Switch Style
General Purpose Limit Switch
Wiring Entry
1/2 in NPT
Basic Actuator Style (Limit Switch)
Plunger
Operating Force
9 oz to 24 oz
DC Contact Rating
2 A @ 250 V
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Travel
Differential Travel 0.0004 in to 0.0020 in, Maximum Pretravel 0.078 in, Minimum Over Travel 0.219 in
Stem Thread - Limit Switch
No Stem
Contact Form - Limit Switch
1NC/1NO
Body Material
Metal
Movement
Release Force 0.25 lb min
Voltage Rating
600V AC, 250V DC
Actuator Style (Limit Switch)
Plunger, Cross Roller
Actuator Location (Limit Switch)
Top
IP Rating
IP66
Body Style (Limit Switch)
Miniature
Boot Sealed Actuator - Limit Switch
Yes
Number of Poles
1
Amps
15 Ind./2 Ind./0.5 Res./0.25 Res
Differential Travel
0.002 in
Mounting Hole Horizontal Center to Center Distance
1 in
Overtravel
0.22 in
Mounting Style
Surface
Pretravel
0.08 in
Operating Temperature - Maximum
160 Degrees F
Operating Force - Maximum
6.67 N
NEMA Enclosure Rating
1, 3, 4
Boot Sealed Actuator
Boot Included
Operating Temperature - Minimum
-25 Degrees F
Body Configuration
Non Plug-In
Number of Mounting Holes
2
Operating Force - Minimum
2.5 N
Over Travel - Linear
0.219 in
Differential Travel - Linear
0.002 in
Pre-Travel - Linear
0.078 in

Dimensions

Width
1.00 in
Roller Width
0.18 in
Body Depth - Limit Switch
1.0 in
Roller Dia.
0.5 in
Body Width - Limit Switch
3.04 in
Depth
3.04"
Height
2.50"
Body Height - Limit Switch
1.75 in
Actuator Length - Limit Switch
1.48 in
Actuator Length
1.48"
Roller Diameter
0.5 in
Body Depth
1 in
Overall Depth
1 in
Body Height
1.75 in
Overall Width
3.04 in
Body Width
3.04 in
Mounting Hole Diameter
25 mm

Description

Limit Switch, Actuator Style - Limit Switch Cross Roller, Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 15A @ 600V, DC Contact Rating - Limit Switch 2A @ 250V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 1.48 in, Body Height - Limit Switch 1.75 in, Body Width - Limit Switch 3.04 in, Body Depth - Limit Switch 1 in, Boot Sealed Actuator - Limit Switch Yes, Body Style - Limit Switch Miniature, NEMA Rating 1, 3, 4, Mounting - Limit Switch Surface
