Shop HONEYWELL

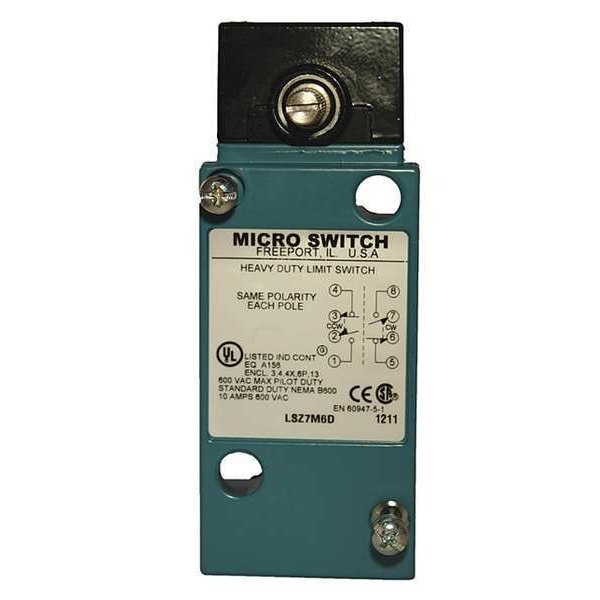

Limit Switch Head, Wbbl Stick, Top, 2NO/2NC

  • Mfr # LSZ7M6D

  • Zoro # G4593346

product price:
$
312.99
/ea
Free Shipping & Returns

Key Features

Actuator Style
Rotary Lever
Actuator Location
Side
Actuator Length
Not Specified
Contact Form
2NO/ 2NC
For Use With
Mfr. No. LSM6D
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LSZ7M6D
Zoro #
G4593346
UPC #
-
Country of Origin
United States

Dimensions

Actuator Length
Not Specified

Details

Item
Limit Switch Head
Actuator Style
Rotary Lever
Actuator Location
Side
Contact Form
2NO/ 2NC
For Use With
Mfr. No. LSM6D
NEMA Rating
1, 3, 4, 4X, 6, 6P
Movement
CW and CCW
Travel
Pretravel 18 Degrees Max., Overtravel 57 Degrees Min., Differential Travel 10 Degrees Max.
Standards
RoHS
Voltage Rating
600VAC/250VDC
Amps
10
Operating Temp.
30 Degrees to 250 Degrees F
IP Rating
Not Rated
AC Contact Rating
10A @ 600V
Type
Heavy Duty Plug-In Limit Switch Body
Head Action
Spring Return, Standard
Compatible with Brand
Honeywell
Operating Temperature - Minimum
30 Degrees F
Compatible with Manufacturer Model Number
LSM6D
NEMA Enclosure Rating
1, 3, 4, 4X, 6, 6P
Directional Movement
CCW/CW
Operating Temperature - Maximum
250 Degrees F
Compatible with Series
LS
Series
HDLS
Compatible Manufacturer Part Number
LSM6D
Compatible Manufacturer Model Number
LSM6D
Compatible with Manufacturer Model No.
LSM6D
Compatible with Mfr. Model No.
LSM6D
For Use with Mfr Model Number
LSM6D
For Use With Mfr. Model Number
LSM6D
Compatible Pump Manufacturer Part Number
LSM6D
Compatible Mfr. Model Number
LSM6D
For Manufacturer Part Number
LSM6D
Compatible with Mfr. Model Number
LSM6D

Description

Limit Switch Head, Contact Form 2NO/ 2NC, For Use With Mfr. No. LSM6D, AC Contact Rating 10A @ 600V, NEMA Rating 1, 3, 4, 4X, 6, 6P, IP Rating Not Rated, Operating Temp. 30 Degrees to 250 Degrees F, Standards RoHS
