  15. Limit Switch, Lever, Plunger, 1NC/1NO, 15A at 600V AC, Actuator Location: Top

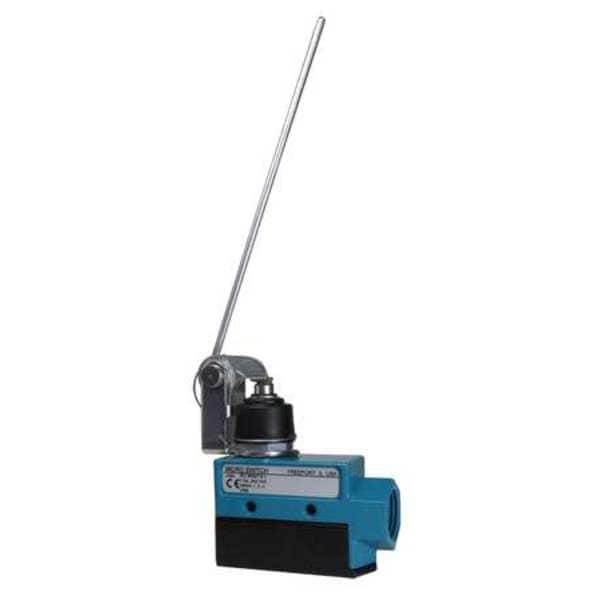

Honeywell Limit Switch, Lever, Plunger, 1NC/1NO, 15A at 600V AC, Actuator Location: Top BZE6-2RN62 - main

Limit Switch, Lever, Plunger, 1NC/1NO, 15A at 600V AC, Actuator Location: Top

  • Mfr # BZE6-2RN62

  • Zoro # G4093512

product price: $176.94
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Lever, Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
15A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BZE6-2RN62
Zoro #
G4093512
UPC #
-
Country of Origin
United States

Dimensions

Width
1.00"
Body Depth - Limit Switch
1.0 in
Body Height - Limit Switch
1.75 in
Body Width - Limit Switch
3.04 in
Height
2.50"
Actuator Length
6.00"
Depth
3.04"
Actuator Length - Limit Switch
6.0 in
Connection Size
1/2 in. NPT
Body Height
1.75 in
Body Width
3.04 in
Overall Depth
1 in
Mounting Hole Diameter
0.98 in
Body Depth
1 in
Overall Width
3.04 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Lever, Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
15A at 600V
DC Contact Rating - Limit Switch
2A at 250V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Standards
CSA, UL
Body Material
Zinc Die Cast
AC Contact Rating
15A at 600V
DC Contact Rating
2A at 250V
Basic Actuator Style (Limit Switch)
Plunger
Voltage Rating
600VAC/250VDC
Body Style (Limit Switch)
Miniature
Mounting Hole Spacing - Limit Switch
1.00 in
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Actuator Style
Rod Lever, Boot Sealed
Boot Sealed Actuator - Limit Switch
Yes
Boot Sealed Actuator (Limit Switch)
Yes
Limit Switch Style
General Purpose Limit Switch
Operating Temp. Range
-25 Degrees to 160 Degrees F
Actuator Style (Limit Switch)
Plunger, Lever
IP Rating
66
Contact Form - Limit Switch
1NC/1NO
Actuator Location
Top
Electrical Connection
Screw Terminals
Movement
Release Force 1 oz min
Wiring Entry
1/2 in NPT
Actuator Location (Limit Switch)
Top
Travel
Differential Travel 0.229 in, Maximum Pretravel 0.718 in, Minimum Over Travel 0.838 in
Arm Material
Steel
Operating Force
3 oz to 7 oz
Contact Form
1NC/1NO, SPDT
NEMA Rating
1, 3, 4
Amps
15 Ind./2 Ind./0.5 Res./0.25 Res
Series
BZ
Mounting Hole - Limit Switch
(2) 0.22 in dia
Number of Poles
1
Stem Thread - Limit Switch
No Stem
Connection Type
Threaded Entry
Differential Travel
0.23 in
Poles/Contacts
SPDT 1NO 1NC
Body Construction
Die Cast Zinc
Electrical Rating - VAC/DC
15A 600VAC (VDC Rated)
Pre-Travel - Travel To Operate
0.718 in (18.24mm) PT
Head/Operator
Top Push Rod Lever
Type
Compact Limit Switch
Head Action
Spring Return, Standard
Current Rating - nominal
15A
Operating Temperature - max
160 deg F (71 deg C)
Rating - NEMA
NEMA 4
Operating Temperature - min
-25 deg F (-32 deg C)
Over-Travel/Total-Travel
0.838 in (21.29mm) OT
Operator Configuration
Adjustable
Differential-Travel - Travel To Reset
0.229 in (5.82mm) DT
Number of Mounting Holes
2
NEMA Enclosure Rating
1, 3, 4
Overtravel
0.84 in
Body Configuration
Non Plug-In
Boot Sealed Actuator
Boot Included
Operating Temperature - Minimum
-25 Degrees F
Operating Force - Minimum
3 ozf
Operating Temperature - Maximum
160 Degrees F
Mounting Style
Surface
Pretravel
0.718 in
Mounting Hole Horizontal Center to Center Distance
25 mm
Operating Force - Maximum
7 ozf

Description

Non Plug-In Limit Switch, Actuator Style - Limit Switch Lever, Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 15A @ 600V, DC Contact Rating - Limit Switch 2A @ 250V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 6 in, Body Height - Limit Switch 1.75 in, Body Width - Limit Switch 3.04 in, Body Depth - Limit Switch 1 in, Boot Sealed Actuator - Limit Switch Yes, Body Style - Limit Switch Miniature, NEMA Rating 1, 3, 4
