Shop HONEYWELL

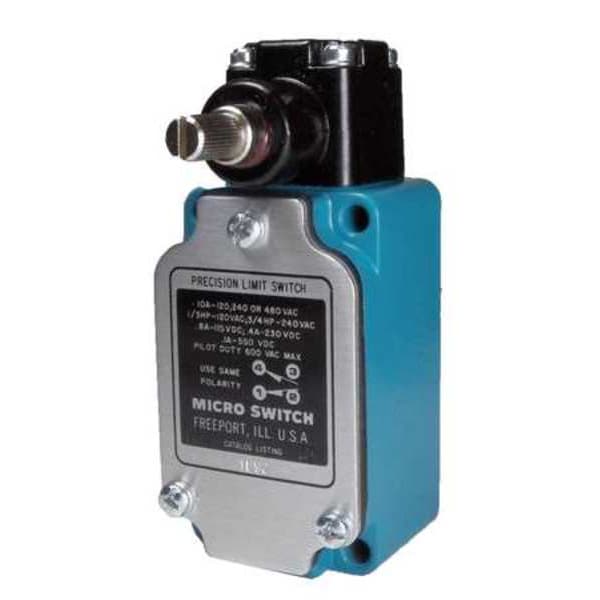

Limit Switch, No Lever, Rotary, 1NC/1NO, 10A at 480V AC, Actuator Location: Side

  • Mfr # 1LS56

  • Zoro # G3989097

product price:
$
323.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 480V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
1LS56
Zoro #
G3989097
UPC #
078454955580
Country of Origin
United States
Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 480V
DC Contact Rating - Limit Switch
Not Rated
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Mounting Hole Spacing - Limit Switch
2.31 in x 1.19 in
NEMA Rating
1, 13, 3, 4, 6
Voltage Rating
480VAC
Boot Sealed Actuator (Limit Switch)
No
Amps
10
Limit Switch Style
General Purpose Limit Switch
AC Contact Rating
10 A @ 120 V, 10 A @ 240 V, 10 A @ 480 V
Contact Form
1NO/1NC
Number of Poles
1
Wiring Entry
1/2 in NPT
Mounting Hole Pattern - Limit Switch
4 Hole Rectangular
Contact Form - Limit Switch
1NC/1NO
DC Contact Rating
Not Rated
Actuator Location
Side
Body Material
Metal
Mounting Hole - Limit Switch
(4) 0.19 in dia
Actuator Style (Limit Switch)
Rotary, No Lever
Stem Thread - Limit Switch
No Stem
Actuator Style
Rotary Lever
Movement
Rotary
Boot Sealed Actuator - Limit Switch
No
Operating Temp. Range
-20 Degrees to 160 Degrees F
Basic Actuator Style (Limit Switch)
Rotary
Travel
Differential Travel 4 Degrees , Maximum Pretravel 5 Degrees , Minimum Over Travel 30 Degrees
Actuator Location (Limit Switch)
Side
Series
LS
Body Style (Limit Switch)
Miniature
IP Rating
IP67
Electrical Connection
Screw Terminals
Standards
CE
Operating Force
15 in-oz
Differential Travel
4 Degrees
Operating Temperature - Maximum
160 Degrees F
Operating Torque - Maximum
1.7 in-lb
Mounting Hole Horizontal Center to Center Distance
60 mm
Overtravel
30 Degrees
Pretravel
5 Degrees
Boot Sealed Actuator
No Boot Included
Includes Actuator
No Actuator Included
Number of Mounting Holes
4
Body Configuration
Non Plug-In
Mounting Style
Surface
Operating Temperature - Minimum
-20 Degrees F
Mounting Hole Vertical Center to Center Distance
30 mm
NEMA Enclosure Rating
1, 13, 3, 4, 6

Description

Limit Switch, Actuator Style - Limit Switch No Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 480V, DC Contact Rating - Limit Switch Not Rated, Contact Form- Switches 1NC/1NO, Body Height - Limit Switch 2.7 in, Body Width - Limit Switch 1.19 in, Body Depth - Limit Switch 1.13 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 13, 3, 4, 6, Mounting - Limit Switch Surface
