Shop HONEYWELL

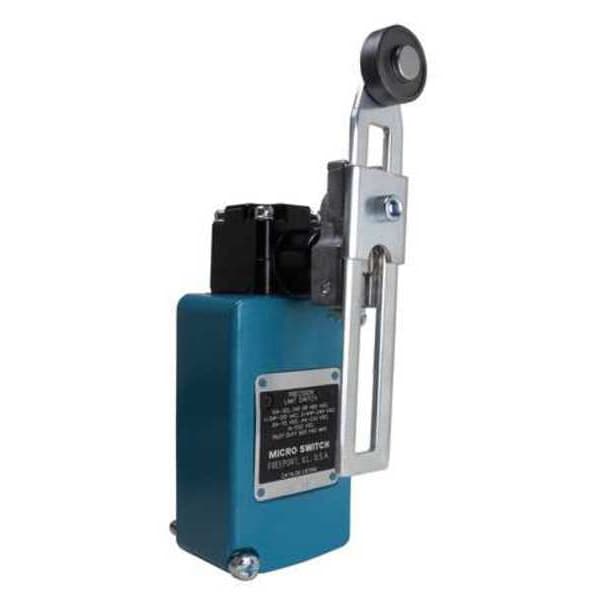

Limit Switch, Roller Lever, Rotary, 1NC/1NO, 10A at 480V AC, Actuator Location: Side

  • Mfr # 201LS3

  • Zoro # G3887834

product price:
$
732.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 480V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
201LS3
Zoro #
G3887834
UPC #
-
Country of Origin
United States

Dimensions

Body Depth - Limit Switch
1.6 in
Actuator Length - Limit Switch
1.20 in to 3.50 in
Body Height - Limit Switch
3.05 in
Body Width - Limit Switch
1.92 in
Height
3.05"
Depth
1.60"
Body Width
1.92 in
Mounting Hole Diameter
0.22 in
Body Height
3.05 in
Body Depth
1.6 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 480V
DC Contact Rating - Limit Switch
Not Rated
Body Style - Limit Switch
Standard
Mounting - Limit Switch
Surface
Standards
CE
Amps
10
Stem Thread - Limit Switch
No Stem
DC Contact Rating
Not Rated
Boot Sealed Actuator (Limit Switch)
No
Basic Actuator Style (Limit Switch)
Rotary
Mounting Hole - Limit Switch
(2) 0.22 in dia
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Operating Force
3.0 in-lb
NEMA Rating
1, 13, 3, 4, 6
Contact Form - Limit Switch
1NC/1NO
Body Style (Limit Switch)
Standard
Voltage Rating
480VAC
Actuator Location
Side
Boot Sealed Actuator - Limit Switch
No
Series
200LS
Actuator Style (Limit Switch)
Rotary, Roller Lever
Actuator Location (Limit Switch)
Side
Mounting Hole Spacing - Limit Switch
3.19 in x 1.48 in
Contact Form
1NO/1NC
IP Rating
IP67
AC Contact Rating
10 A @ 480 V
Travel
Differential Travel 12 Degrees max, Overtravel 30 Degrees min, Pretravel 20 Degrees max
Actuator Style
Roller Lever Plunger
Movement
CCW, CW
Limit Switch Style
General Purpose Limit Switch
Electrical Connection
Screw Terminal
Body Material
Metal
Differential Travel
12 Degrees
Rating - NEMA
NEMA 4,6
Operating Temperature - min
-20 deg F (-29 deg C)
Operator Configuration
Adjustable
Poles/Contacts
SPDT 1NO 1NC
Type
General Purpose Plug-In Limit Switch Body
Head Action
Spring Return, Standard
Over-Travel/Total-Travel
30 deg OT
Enclosure Listings
NEMA 1,3,4,6,13
Head/Operator
Side Rotary Roller Lever
Differential-Travel - Travel To Reset
12 deg DT
Operating Temperature - max
160 deg F (71 deg C)
Receptacle - not included
18PA1
Current Rating - nominal
10A
Travel Direction
CW or CCW
Electrical Rating - VAC/DC
10A 480VAC (VDC Rated)
Body Construction
Die Cast Zinc
Pre-Travel - Travel To Operate
20 deg PT
Overtravel
30 Degrees
Boot Sealed Actuator
No Boot Included
Number of Mounting Holes
2
Directional Movement
CCW/CW
NEMA Enclosure Rating
1, 13, 3, 4, 6
Mounting Style
Surface
Operating Torque - Maximum
3 in-lb
Pretravel
20 Degrees
Body Configuration
Plug-In
Mounting Hole Horizontal Center to Center Distance
38 mm
Mounting Hole Vertical Center to Center Distance
81 mm

Description

Limit Switch, Actuator Style - Limit Switch Roller Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 480V, DC Contact Rating - Limit Switch Not Rated, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 1.20 in to 3.50 in, Body Height - Limit Switch 3.05 in, Body Width - Limit Switch 1.92 in, Body Depth - Limit Switch 1.6 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 1, 13, 3, 4, 6
