  6. Line Volt Mechanical Tstat, Open/Close on Rise, Vertical, 4

This item is Discontinued.

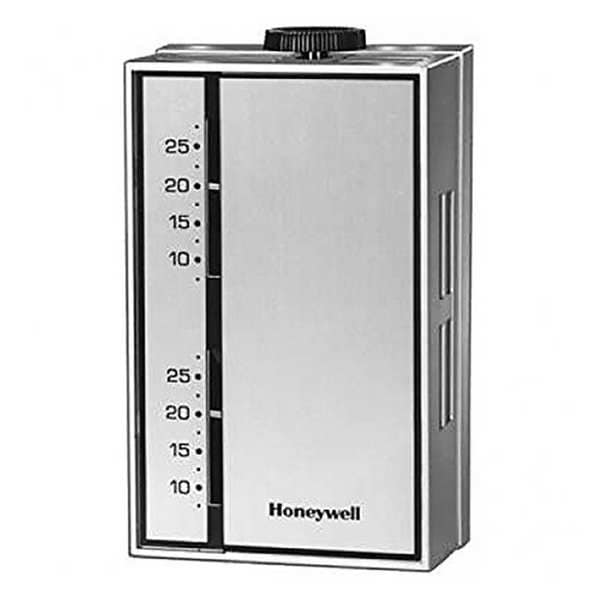

Honeywell Line Volt Mechanical Tstat, Open/Close on Rise, Vertical, 4 T6051A1016

Line Volt Mechanical Tstat, Open/Close on Rise, Vertical, 4 (Discontinued)

  • Mfr # T6051A1016
  • Zoro # G2313656
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
T6051A1016
Zoro #
G2313656
UPC #
085267089203
Country of Origin
Mexico

Dimensions

Width
3 1/8 in
Height
5 in
Depth
1 5/8 in
Overall Width
3 1/8 in
Mounting Hole Diameter
9/32 in
Overall Height
5 5/16 in
Overall Depth
1 5/8 in

Details

Switch Action
Open/Close on Rise
Voltage
120 to 240V AC
Sensor Type
Vapor-Filled Dual-Diaphragm
Differential
1 Degrees F
Display Type
Analog
Thermostat Control Range
46 Degrees to 84 Degrees F
Mounting Location
Vertical
Switch Type
SPDT
Color
Tan
Full Load Amps @ 240VAC
8 A
Item
Line Volt Mechanical Tstat
Number of Switches
1
Locked Rotor Amps @ 120V
96 A
Mounting Type
Vertical or Horizontal
Contact Rating Resistive @ 240V
22 A
Full Load Amps @ 120VAC
15 A
Pilot Duty Contacts (VA)
125 VA
Contact Rating Resistive @ 120V
22 A
Remote Sensing Capability
No
Locked Rotor Amps @ 240V
48 A
Thermostat Item
Line Voltage Mechanical Thermostat
Thermostat Switch Type
4
Thermostat Voltage
120 to 240V AC
Thermostat Heating/Cooling
Heating/Cooling
Standards
CSA Certified, UL Listed
Includes
Removable Set Point Knob Prevents Tampering, Removable Locking Cover
Thermostat Programmable
No
Control Range
46 Degrees to 84 Degrees F
Remote Sensing Bulb Included
No
For Use With
Coils, Fans, Contactors, Circulator Motors, Motor Starters and Valves
Application
Heat and Cool
Mounting
Standard 2 x 4" Vertical or Horizontal Box
Agency Compliance
UL File No. E4436, Guide No. XAPX
Contact Rating Resistive @ 277V
19 A
Thermostat Type
Line Voltage
Display
Analog
Features
Heavy Duty, Lockable, Q651A, B Subbases for System and Fan Switching
Voltage Range
120 to 240VAC
Type
Heating/Cooling
Control Type
Exposed Dial
Full Load Amps @ 120V AC
16 A
Changeover Type
Automatic
Compatible System Type
Fan Coil Units
Number of Poles
1
Fan Settings
No Fan Setting
Electrical Connection Type
Screw Terminals
Switch Type/Action
SPDT, Open/Close on Rise
Number of Heating Stages
1
Frequency
50 Hz, 60 Hz
Contact Type
Snap Action
Differential Type
Fixed
Full Load Amps @ 240V AC
8 A
Number of Cooling Stages
1
Pilot Duty Rating
125 VA
Maximum Control Temperature
84 Degrees F
Temperature Control Range
46 Degrees to 84 Degrees F
Mounting Direction
Vertical
Includes Positive Off
No
Temperature Scale
Fahrenheit
Enclosure Color
Beige
Temperature Differential
1 Degrees F
Contact Rating
120 to 240V AC
Stages
1H/1C
Housing Material
Plastic
Housing Color
Beige
Minimum Control Temperature
46 Degrees F
System Settings
Auto

Description

Line Volt Mechanical Tstat, Thermostat Switch Type SPDT, Thermostat Control Range 46 Degrees to 84 Degrees F, Thermostat Voltage 120 to 240V AC, Full Load Amps @ 120VAC 15 A, Full Load Amps @ 240VAC 8 A, Thermostat Programmable No, Remote Sensing Capability No, Thermostat Heating/Cooling Heating/Cooling, Remote Sensing Bulb Included No, Switch Action Open/Close on Rise, Number of Switches 1, Differential 1 Degrees F, Height 5 in, Width 3 1/8 in, Depth 1 5/8 in

Restrictions

Hazardous material
