  6. 1NC/1NO Safety Interlock Switch Plunger IP 67

This item is Discontinued.

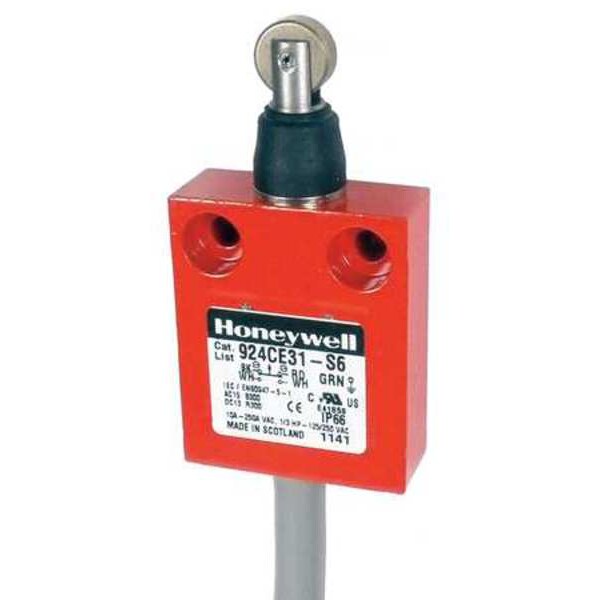

Honeywell Micro Switch 1NC/1NO Safety Interlock Switch Plunger IP 67 924CE31S6

1NC/1NO Safety Interlock Switch Plunger IP 67 (Discontinued)

  • Mfr # 924CE31S6
  • Zoro # G4076807
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
924CE31S6
Zoro #
G4076807
UPC #
078454908852
Country of Origin
United Kingdom

Dimensions

Actuator Length
1.19 in
Height
1.93 in
Width
1.57 in
Depth
0.63 in
Cable Length
6 ft
Overall Width
1.57 in
Overall Depth
0.63 in
Overall Height
1.93 in

Details

Item
Safety Interlock Switch
Style
Sintered Iron Roller Plunger with Boot Seal
Series
924CE
AC Contact Rating
100mA to 10A @ 240V
DC Contact Rating
100mA to 10A @ 250V
Contact Form
1NO/1NC, Break Before Make, Direct Opening, Slow Action
Connection Type
6 ft Dead End Cable
IP Rating
IP67
Operating Temp. Range
32 Degrees to 221 Degrees F
Description/Special Features
Bottom Exit, Mechanical Life 10 Million Operations, Roller 0.49 in dia x 0.19 in wide
Over Travel
5mm
Movement
Lateral
NEMA Rating
1, 12, 13, 3, 4
Differential Travel
2 +/-0.5 mm
Body Material
Zinc
Contact Material
Silver
Actuator Style
Plunger, Roller
Pre-travel
4mm
Operating Force
5.06 lb
Standards
CE, CSA, SIL 3 Capable, UL
Electrical Connection
6 ft Dead End Cable
Overtravel
5 mm
Pretravel
4 mm
NEMA Enclosure Rating
1, 12, 13, 3, 4

Description

Safety Interlock Switch, Sintered Iron Roller Plunger with Boot Seal, Contact Form 1NO/1NC, Break Before Make, Direct Opening, Slow Action, Actuator Length 1.19 in, Connection Type 6 ft Dead End Cable, AC Contact Rating 100mA to 10A @ 240V, Series 924CE, DC Contact Rating 100mA to 10A @ 250V, Height 1.93 in, Width 1.57 in, Depth 0.63 in, NEMA Rating 1, 12, 13, 3, 4, IP Rating IP67, Operating Temp. Range 32 Degrees to 221 Degrees F, Contact Material Silver, Cable Length 6 ft, Body Material Zinc
