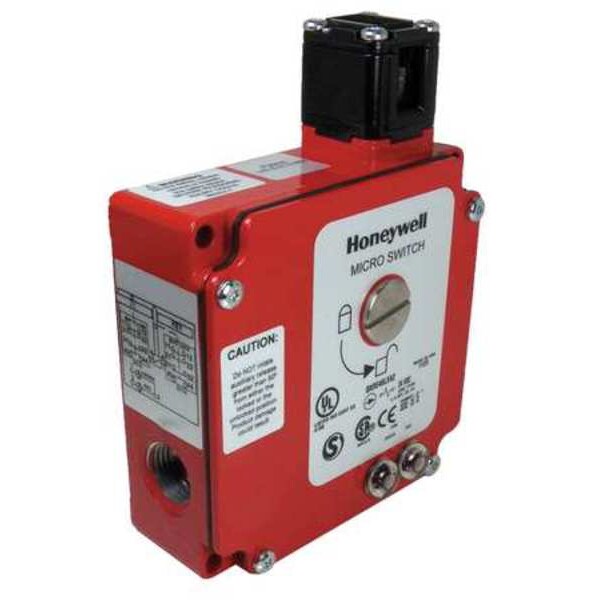

3NC/1NO Safety Interlock Switch Nema 1, 4, 6P, 12, 13 (Discontinued)
- Mfr # GKRE36MXA2
- Zoro # G4036706
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
GKRE36MXA2
Zoro #
G4036706
UPC #
-
Country of Origin
United States
Dimensions
Width
4.33 in
Conduit Size
1/2 in NPT
Depth
1.92 in
Height
5.85 in
Details
Item
Safety Interlock Switch
Contact Form
1NO, 2 Slow Action, 3NC, Break Before Make, Direct Opening
Contact Material
Gold Plated
AC Contact Rating
1 to 100mA @ 1 to 50V
Description/Special Features
Operating Temp. Range
-13 Degrees to 104 Degrees F
DC Contact Rating
1 to 100mA @ 1 to 50V
Style
Right and Top Opening, Right Position, Solenoid Power to Unlock
Body Material
Zinc Die Cast
Standards
CE, CSA, SIL 3 Capable, UL
Series
GKR
Head Material
Zinc Die-Cast
NEMA Rating
1, 12, 13, 4, 6P
Operating Force
8 lb
IP Rating
68
Connection Type
1/2 in NPT Conduit
Description
Safety Interlock Switch, Right and Top Opening, Right Position, Solenoid Power to Unlock, Contact Form 1NO, 2 Slow Action, 3NC, Break Before Make, Direct Opening, Connection Type 1/2 in NPT Conduit, AC Contact Rating 1 to 100mA @ 1 to 50V, Series GKR, DC Contact Rating 1 to 100mA @ 1 to 50V, Height 5.85 in, Width 4.33 in, Depth 1.92 in, NEMA Rating 1, 12, 13, 4, 6P, IP Rating 68, Operating Temp. Range -13 Degrees to 104 Degrees F, Contact Material Gold Plated, Conduit Size 1/2 in NPT
