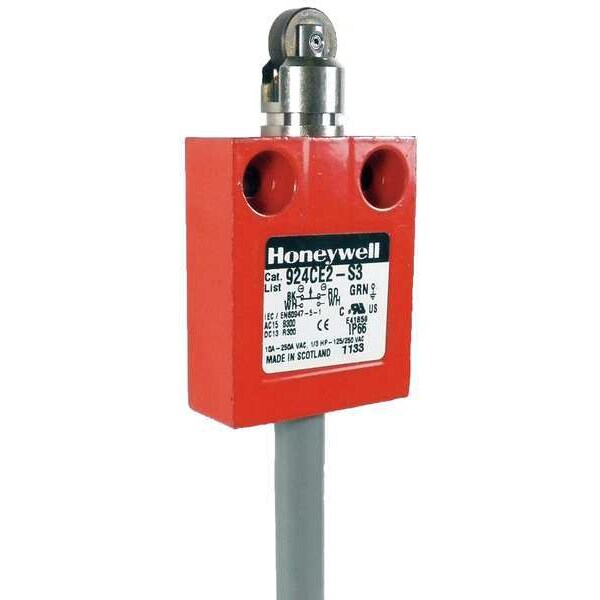

Honeywell Micro Switch Safety Interlock Switch 1NC/1NO Plunger IP 66 924CE2-S3

Safety Interlock Switch 1NC/1NO Plunger IP 66 (Discontinued)

  • Mfr # 924CE2-S3
  • Zoro # G4049814
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
924CE2-S3
Zoro #
G4049814
UPC #
-
Country of Origin
United Kingdom

Dimensions

Actuator Length
1.19 in
Height
1.93 in
Width
1.57 in
Depth
0.63 in
Cable Length
3 ft
Overall Depth
0.63 in
Overall Width
1.57 in
Overall Height
1.93 in

Details

Item
Safety Interlock Switch
Style
Sintered Iron Roller Plunger
Series
924CE
AC Contact Rating
100mA to 10A @ 240V
DC Contact Rating
100mA to 10A @ 250V
Contact Form
1NO/1NC, Break Before Make, Direct Opening, Slow Action
Connection Type
3 ft Dead End Cable
IP Rating
IP66
Operating Temp. Range
32 Degrees to 221 Degrees F
Standards
CE, CSA, SIL 3 Capable, UL
Operating Force
5.06 lb
Actuator Style
Plunger, Roller
Description/Special Features
Bottom Exit, Mechanical Life 10 Million Operations, Roller 0.49 in dia x 0.19 in wide
Movement
Lateral
Pre-travel
2.2mm
NEMA Rating
1, 12, 13, 3, 4
Over Travel
5mm
Body Material
Zinc
Differential Travel
0.7 +/-0.5 mm
Contact Material
Silver
Electrical Connection
3 ft Dead End Cable
NEMA Enclosure Rating
1, 12, 13, 3, 4
Overtravel
5 mm
Pretravel
2.2 mm

Description

Safety Interlock Switch, Sintered Iron Roller Plunger, Contact Form 1NO/1NC, Break Before Make, Direct Opening, Slow Action, Actuator Length 1.19 in, Connection Type 3 ft Dead End Cable, AC Contact Rating 100mA to 10A @ 240V, Series 924CE, DC Contact Rating 100mA to 10A @ 250V, Height 1.93 in, Width 1.57 in, Depth 0.63 in, NEMA Rating 1, 12, 13, 3, 4, IP Rating IP66, Operating Temp. Range 32 Degrees to 221 Degrees F, Contact Material Silver, Cable Length 3 ft, Body Material Zinc
