  6. Safety Interlock Switch 1NC/1NO Plunger IP 67

This item is Discontinued.

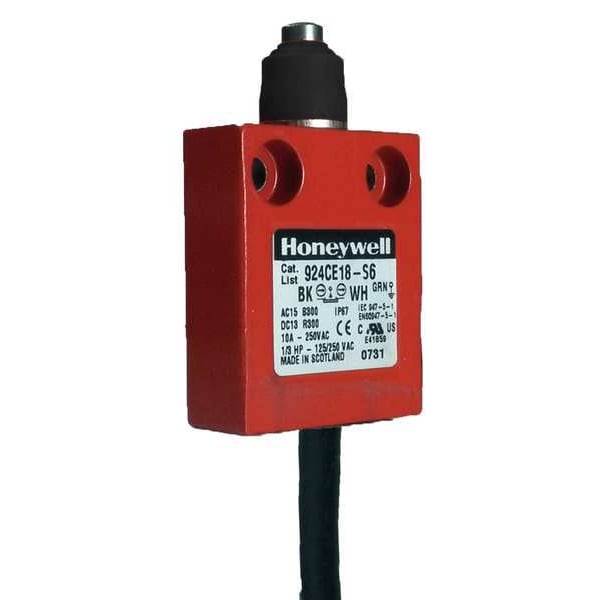

Honeywell Micro Switch Safety Interlock Switch 1NC/1NO Plunger IP 67 924CE18S6

Safety Interlock Switch 1NC/1NO Plunger IP 67 (Discontinued)

  • Mfr # 924CE18S6
  • Zoro # G3895936
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
924CE18S6
Zoro #
G3895936
UPC #
-
Country of Origin
United Kingdom

Dimensions

Actuator Length
1.17 in
Height
1.93 in
Width
1.57 in
Depth
0.63 in
Cable Length
6 ft
Overall Width
1.57 in
Overall Height
1.93 in
Overall Depth
0.63 in

Details

Item
Safety Interlock Switch
Style
0.28 in dia Stainless Steel Pin Plunger with Boot Seal
Series
924CE
AC Contact Rating
100mA to 10A @ 240V
DC Contact Rating
100mA to 10A @ 250V
Contact Form
1NO/1NC, Break Before Make, Direct Opening, Slow Action
Connection Type
6 ft Dead End Cable
IP Rating
IP67
Operating Temp. Range
32 Degrees to 221 Degrees F
Pre-travel
2.2mm
Operating Force
5.06 lb
Standards
CE, CSA, SIL 3 Capable, UL
Actuator Style
Plunger, Boot Sealed
Description/Special Features
Bottom Exit, Mechanical Life 10 Million Operations
Differential Travel
2 +/-0.5 mm
Movement
Lateral
Over Travel
5mm
Contact Material
Silver
NEMA Rating
1, 12, 13, 3, 4
Body Material
Zinc
Electrical Connection
6 ft Dead End Cable
NEMA Enclosure Rating
1, 12, 13, 3, 4
Pretravel
2.2 mm
Overtravel
5 mm

Description

Safety Interlock Switch, 0.28 in dia Stainless Steel Pin Plunger with Boot Seal, Contact Form 1NO/1NC, Break Before Make, Direct Opening, Slow Action, Actuator Length 1.17 in, Connection Type 6 ft Dead End Cable, AC Contact Rating 100mA to 10A @ 240V, Series 924CE, DC Contact Rating 100mA to 10A @ 250V, Height 1.93 in, Width 1.57 in, Depth 0.63 in, NEMA Rating 1, 12, 13, 3, 4, IP Rating IP67, Operating Temp. Range 32 Degrees to 221 Degrees F, Contact Material Silver, Cable Length 6 ft
