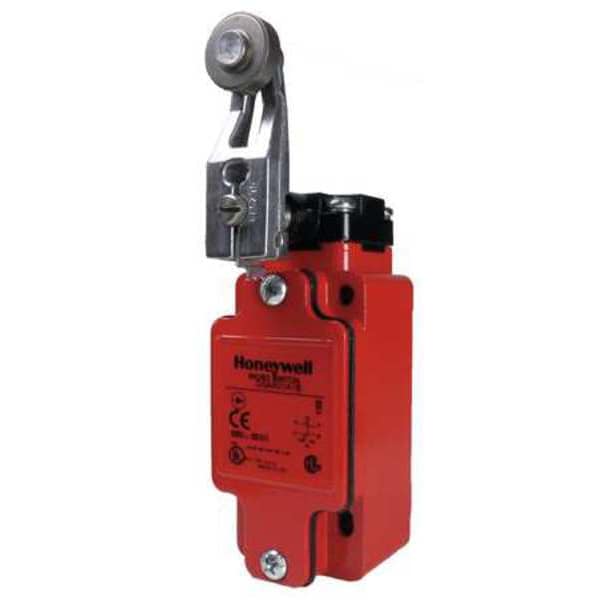

Honeywell Micro Switch Safety Interlock Switch 2NC/2NO Nema 1, 4, 12, 13 GSAA20A1B

Safety Interlock Switch 2NC/2NO Nema 1, 4, 12, 13 (Discontinued)

  • Mfr # GSAA20A1B
  • Zoro # G4154814
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
GSAA20A1B
Zoro #
G4154814
UPC #
-
Country of Origin
United States

Dimensions

Actuator Length
1.5 in
Height
3.23 in
Width
1.65 in
Depth
1.65 in
Conduit Size
1/2 in NPT
Overall Width
1.65 in
Overall Depth
1.65 in
Overall Height
3.23 in

Details

Item
Safety Interlock Switch
Style
Side Rotary with Fixed Lever
Series
GSA
AC Contact Rating
100mA to 10A @ 600V
DC Contact Rating
100mA to 10A @ 250V
Contact Form
2NO/2NC, Direct Opening, Double Pole, Snap Action
Connection Type
1/2 in NPT Conduit
IP Rating
IP67
Operating Temp. Range
-13 Degrees to 185 Degrees F
Positive Travel
55 Degrees
Body Material
Zinc
Over Travel
85 Degrees
Contact Material
Silver
NEMA Rating
1, 12, 13, 4
Movement
Rotation
Standards
CE, CSA, Sil 3 Capable, UL
Differential Travel
12 Degrees
Rotation
CW/CCW
Operating Force
2.9 in-lb Max
Pre-travel
26 Degrees
Description/Special Features
Metal Roller 0.75 in x 0.25 in, EN50041 Body Type, Non Plug-In, Shock 50G per IEC 68-2-27, Vibration 10G per IEC 68-2-26, Expected Mechanical Life 15 Million Operations, FP, OP, OT, PT All to EN50041, Levers May be Attached to the Shaft at 90 Degrees Increments, They May Also be Attached, But Not Keyed, Anywhere on the Shaft
Electrical Connection
1/2 in NPT Conduit
Pretravel
26 Degrees
NEMA Enclosure Rating
1, 12, 13, 4
Overtravel
85 Degrees

Description

Safety Interlock Switch, Side Rotary with Fixed Lever, Contact Form 2NO/2NC, Direct Opening, Double Pole, Snap Action, Actuator Length 1.5 in, Connection Type 1/2 in NPT Conduit, AC Contact Rating 100mA to 10A @ 600V, Series GSA, DC Contact Rating 100mA to 10A @ 250V, Height 3.23 in, Width 1.65 in, Depth 1.65 in, NEMA Rating 1, 12, 13, 4, IP Rating IP67, Operating Temp. Range -13 Degrees to 185 Degrees F, Contact Material Silver, Conduit Size 1/2 in NPT, Body Material Zinc
