  6. Miniature Snap Action Switch, Lever, Long Actuator, SPDT, 3A @ 240V AC Contact Rating

This item is Discontinued.

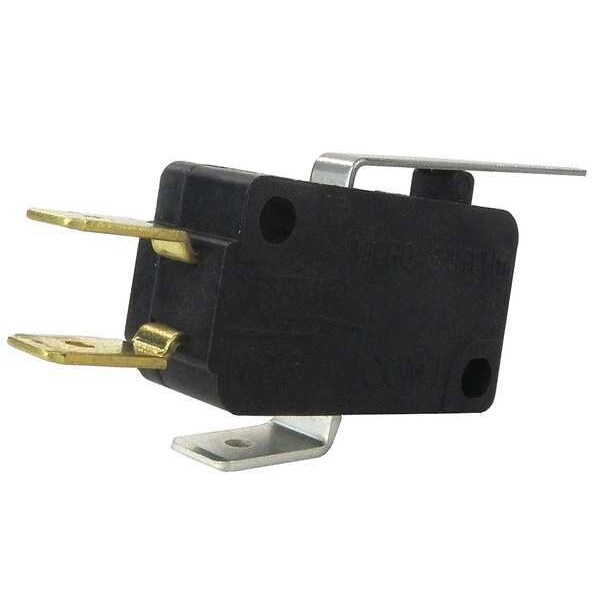

Honeywell Miniature Snap Action Switch, Lever, Long Actuator, SPDT, 3A @ 240V AC Contact Rating V7-6B19E9-022

Miniature Snap Action Switch, Lever, Long Actuator, SPDT, 3A @ 240V AC Contact Rating (Discontinued)

  • Mfr # V7-6B19E9-022
  • Zoro # G4628233
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
V7-6B19E9-022
Zoro #
G4628233
UPC #
078454991830
Country of Origin
Mexico

Dimensions

Lever Actuator Length - Snap Action Switch
1.08 in
Height - Snap Action Switch
0.63 in
Width - Snap Action Switch
1.14 in
Depth - Snap Action Switch
0.4 in
Mounting Dimension - Snap Action Switch
0.87 in Centers
Mounting Dimension
0.41 x 0.87" Centers
Depth
0.4"
Length
1.14"
Height
0.63"
Actuator Length
1.08"
Lever Actuator Length
1.08 in
Overall Width
1.14 in
Overall Depth
0.4 in
Overall Height
0.63 in

Details

Item
Miniature Snap Action Switch
Actuator Type - Snap Action Switch
Lever, Long
AC Contact Rating - Snap Action Switch
11 A 1/3 HP 125 V, 250 V or 277 V
DC Contact Rating - Snap Action Switch
1/2 A 125 V; 1/4 A 250 V
Contact Form- Switches
SPDT
Release Force
1.34 oz
Housing Material
PCT Polyester Thermoplastic
Terminal Type
Quick Connect
Voltage Rating
250VAC
Current Rating
3A
Operating Temp. Range
-40 Degrees C to 85 Degrees C [-40 Degrees F to 185 Degrees F], options for 175 Degrees C [347 Degrees F]
Watertight - Snap Action Switch
No
Standards
CSA, ENEC, UL Listed
Differential Travel
0.03 in
Max. Pretravel
0.128 in
Type of Actuator
Long Straight Lever
Operating Force
215 gf max.
Contact Form
SPDT
Over Travel
0.051 in
Series
V7
Electrical Connection - Snap Action Switch
3/16 in Quick Connect
AC Contact Rating
11 A @ 125 V, 11 A @ 250 V, 11 A @ 277 V
DC Contact Rating
0.25 A @ 250 V, 0.5 A @ 125 V
Actuator Style
Lever
Differential Travel - Maximum
0.03 in
Operating Force - Maximum
7.5 ozf
Body Material
Thermoplastic
Electrical Connection
3/16 in Quick Connect

Description

Miniature Snap Action Switch, Lever, Long, AC Contact Rating - Snap Action Switch 11 A 1/3 HP 125 V, 250 V or 277 V, DC Contact Rating - Snap Action Switch 1/2 A 125 V; 1/4 A 250 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1.08 in, Height - Snap Action Switch 0.63 in, Width - Snap Action Switch 1.14 in, Depth - Snap Action Switch 0.4 in, Electrical Connection - Snap Action Switch 3/16 in Quick Connect, Mounting Dimension - Snap Action Switch 0.87 in Centers
