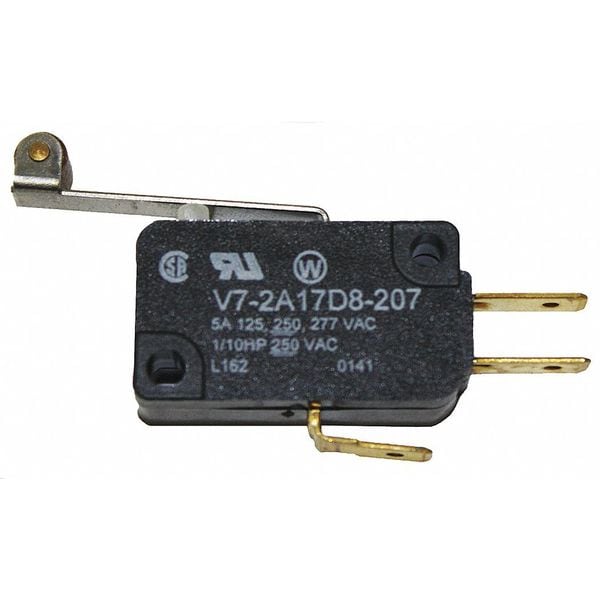

Miniature Snap Action Switch, Lever, Roller Actuator, SPDT

Mfr # V7-2A17D8-207
Zoro # G4725332

Key Features

Actuator Type - Snap Action Switch

Lever, Roller

AC Contact Rating - Snap Action Switch

5 A 125 V, 250 V, 277 V 1/10 HP 250 V

Contact Form- Switches

SPDT

Lever Actuator Length - Snap Action Switch

1.35 in

Height - Snap Action Switch

0.63 in

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: V7-2A17D8-207
Zoro #: G4725332
UPC #: -
Country of Origin: Mexico

Dimensions

Lever Actuator Length - Snap Action Switch: 1.35 in
Height - Snap Action Switch: 0.63 in
Width - Snap Action Switch: 1.14 in
Depth - Snap Action Switch: 0.4 in
Actuator Length: 1.35"
Mounting Dimension: 0.41 x 0.87" Centers
Mounting Dimension - Snap Action Switch: 0.87 in Centers
Length: 1.14"
Depth: 0.4"
Height: 0.63"
Mounting Hole Diameter: 1/8 in
Overall Depth: 0.4 in
Body Height: 0.63 in
Lever Actuator Length: 1.35 in
Overall Height: 0.63 in
Body Width: 1.14 in
Body Depth: 0.4 in
Overall Width: 1.14 in

Details

Item: Miniature Snap Action Switch
Actuator Type - Snap Action Switch: Lever, Roller
AC Contact Rating - Snap Action Switch: 5 A 125 V, 250 V, 277 V 1/10 HP 250 V
Contact Form- Switches: SPDT
Operating Force: 75 g max.
Contact Form: 1NO/1NC
Operating Temp. Range: -40 Degrees C to 85 Degrees C [-40 Degrees F to 185 Degrees F], options for 175 Degrees C [347 Degrees F]
Type of Actuator: Roller Lever
Watertight - Snap Action Switch: No
Series: V7
Voltage Rating: 250VAC
Over Travel: 0.06 in
Release Force: 0.1 ozf
Max. Pretravel: 2.92 mm
Differential Travel: 0.0251 in
Electrical Connection - Snap Action Switch: 3/16 in Quick Connect
Current Rating: 5A
Standards: CSA, ENEC, RoHS, UL Listed
Housing Material: PCT Polyester Thermoplastic
Terminal Type: Quick Connect
AC Contact Rating: 5 A @ 250 V
Operating Force - Minimum: 0.42 N
Electrical Connection: Quick Connect
Actuator Style: Roller Lever
Body Material: Polyester
Pretravel: 0.115 in
Differential Travel - Maximum: 0.0251 in
Overtravel: 0.06 in
Center Mounting Hole Distance: 0.88 in
Operating Temperature - Minimum: -40 Degrees F
Operating Temperature - Maximum: 365 Degrees F
Operating Force - Maximum: 1.5 ozf
Mounting Hole Horizontal Center to Center Distance: 22 mm

Description

Miniature Snap Action Switch, Lever, Roller, AC Contact Rating - Snap Action Switch 5 A 125 V, 250 V, 277 V 1/10 HP 250 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1.35 in, Height - Snap Action Switch 0.63 in, Width - Snap Action Switch 1.14 in, Depth - Snap Action Switch 0.4 in, Electrical Connection - Snap Action Switch 3/16 in Quick Connect, Mounting Dimension - Snap Action Switch 0.87 in Centers, Series V7
