Shop TELEMECANIQUE SENSORS

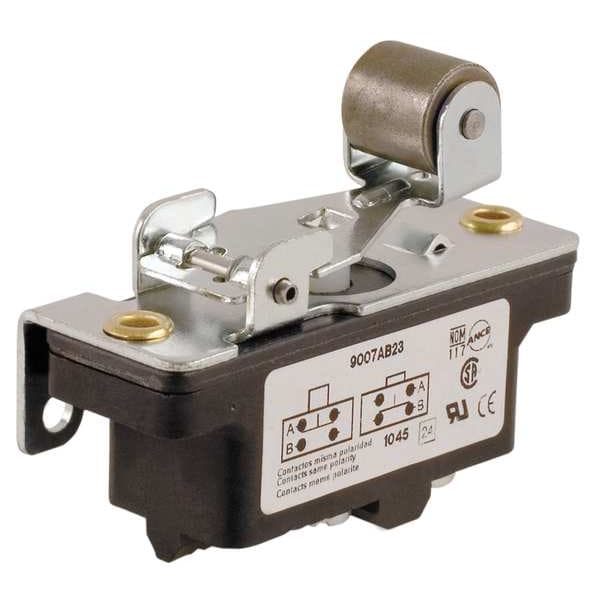

Snap Action Switch, Lever, Roller Actuator, 1NC/1NO, 15 A at 600 V AC Contact Rating

  • Mfr # 9007AB23

  • Zoro # G2368423

product price:  $76.15
/ea

Key Features

Actuator Type - Snap Action Switch
Lever, Roller
AC Contact Rating - Snap Action Switch
15 A @ 600 V
DC Contact Rating - Snap Action Switch
2 A @ 125 V
Contact Form- Switches
1NC/1NO
Lever Actuator Length - Snap Action Switch
1.65 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9007AB23
Zoro #
G2368423
UPC #
785901890010
Country of Origin
Mexico

Dimensions

Lever Actuator Length - Snap Action Switch
1.65 in
Height - Snap Action Switch
0.83 in
Width - Snap Action Switch
2.5 in
Depth - Snap Action Switch
1.03 in
Mounting Dimension - Snap Action Switch
2.10 in Centers
Length
2.5"
Height
0.828"
Actuator Length
1.65"
Mounting Dimension
2.10" Centers
Depth
1.03"
Width
0.95 in
Body Height
2.5 in
Body Depth
2.44 in
Body Width
0.95 in
Lever Actuator Length
1.65 in
Overall Depth
2.44 in
Manufacturer Warranty Length
18 mo
Roller Diameter
0.5 in
Overall Width
0.95 in
Overall Height
2.5 in
Roller Width
0.47 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Lever, Roller
AC Contact Rating - Snap Action Switch
15 A @ 600 V
DC Contact Rating - Snap Action Switch
2 A @ 125 V
Contact Form- Switches
1NC/1NO
Over Travel
0.06 in
Terminal Type
Screw
Operating Temp. Range
-13 Degrees to 185 Degrees F
Operating Force
8 oz
Type of Actuator
Rigid Roller Lever
Watertight - Snap Action Switch
No
Differential Travel
0.078 in
Includes
Acutuator
Current Rating
15A
Standards
CE, CSA, UL Listed
Series
9007AB
Voltage Rating
600VAC
Contact Form
1NO/1NC
Housing Material
Plastic
Max. Pretravel
0.16 in
Electrical Connection - Snap Action Switch
Screw
DC Contact Rating
0.02 A @ 600 V, 0.2 A @ 250 V, 0.5 A @ 125 V
AC Contact Rating
10 A @ 240 V, 15 A @ 120 V, 5 A @ 600 V, 6 A @ 480 V
Material
metal
Pretravel
0.16 in
Body Material
Cast Zinc
Center Mounting Hole Distance
2.1 in
Operating Temperature - Maximum
185 Degrees F
Actuator Style
Roller Lever
Operating Temperature - Minimum
-20 Degrees F
Operating Force - Minimum
2.22 N
Operating Force - Maximum
8 ozf
Overtravel
0.06 in
Differential Travel - Maximum
0.078 in
Electrical Connection
Screw Terminal
Type Of Operator
spring return roller lever plunger metal RH bracket + 0.47" roller
Body Type
fixed
Contacts Material
silver contacts
Operator Profile
plunger head
[Ie] Rated Operational Current
5 A 600 V AC, A600 NEMA rating designation || 6 A 480 V AC, A600 NEMA rating designation || 10 A 240 V AC, A600 NEMA rating designation || 15 A 120 V AC, A600 NEMA rating designation || 0.02 A 600 V DC || 0.2 A 250 V DC || 0.5 A 125 V DC
Ambient Air Temperature For Operation
-20-185°F
Positive Opening
without
Number Of Steps
1
Type Of Approach
traverse approach, 2 directions
[Ithe] Conventional Enclosed Thermal Current
15 A
Contact Operation
snap action
Product Or Component Type
snap limit switch
Ambient Air Temperature For Storage
-20-185°F
Contacts Type And Composition
NC-NO SPDT-DB
Fixing Mode
by the body
[Ui] Rated Insulation Voltage
600 V 3)UL 508 contact block || 600 VCSA C22.2 No 14 contact block
Operator Material
cast zinc
Number Of Poles
1
Series Name
heavy duty
Minimum Force For Tripping
0.5 lbf
Switch Actuation
by 30° cam
Device Short Name
9007AO/CO
Movement Of Operating Head
linear
Terminals Description Iso N°1
(3-4)NO || (1-2)NC
Ip Degree Of Protection
IP20 conforming to IEC 60529
Nema Degree Of Protection
NEMA 1 Nema type 250
Maximum Force For Tripping
0.5 lbf
Roller Material
Metal
Mounting Hole Horizontal Center to Center Distance
53 mm

Description

Snap Action Switch, Lever, Roller, AC Contact Rating - Snap Action Switch 15 A @ 600 V, DC Contact Rating - Snap Action Switch 2 A @ 125 V, Contact Form- Switches 1NC/1NO, Lever Actuator Length - Snap Action Switch 1.65 in, Height - Snap Action Switch 0.83 in, Width - Snap Action Switch 2.5 in, Depth - Snap Action Switch 1.03 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 2.10 in Centers
