  13. Miniature Snap Action Switch, Lever, Roller, Short Actuator, SPDT

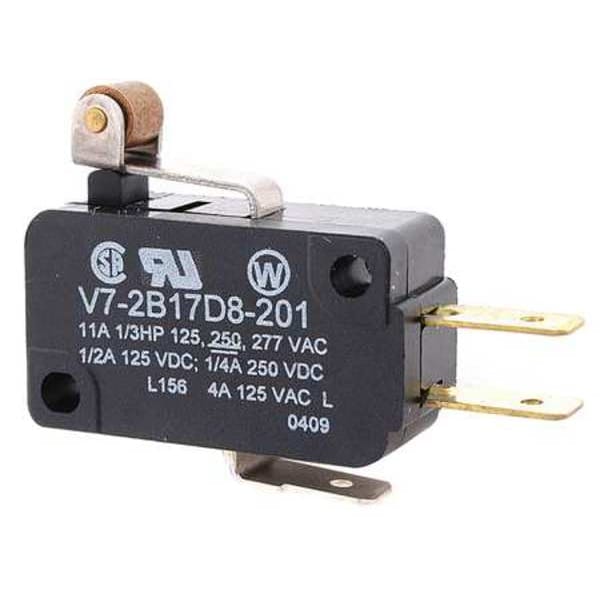

Honeywell Miniature Snap Action Switch, Lever, Roller, Short Actuator, SPDT V7-2B17D8-201 - main

Miniature Snap Action Switch, Lever, Roller, Short Actuator, SPDT

  • Mfr # V7-2B17D8-201

  • Zoro # G4557707

product price: $4.45
/ea

Key Features

Actuator Type - Snap Action Switch
Lever, Roller, Short
AC Contact Rating - Snap Action Switch
11 A 1/3 HP 125 V, 250 V or 277 V
DC Contact Rating - Snap Action Switch
1 /2A 125 V; 1/4 A 250 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
0.82 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
V7-2B17D8-201
Zoro #
G4557707
UPC #
-
Country of Origin
Mexico

Dimensions

Lever Actuator Length - Snap Action Switch
0.82 in
Height - Snap Action Switch
0.63 in
Width - Snap Action Switch
1.14 in
Depth - Snap Action Switch
0.4 in
Mounting Dimension - Snap Action Switch
0.87 in Centers
Height
0.63"
Length
1.14"
Actuator Length
0.82"
Mounting Dimension
0.41 x 0.87" Centers
Depth
0.4"
Body Depth
0.4 in
Body Width
1.14 in
Lever Actuator Length
0.82 in
Overall Depth
0.4 in
Mounting Hole Diameter
1/8 in
Body Height
0.63 in
Overall Width
1.14 in
Overall Height
0.63 in

Details

Item
Miniature Snap Action Switch
Actuator Type - Snap Action Switch
Lever, Roller, Short
AC Contact Rating - Snap Action Switch
11 A 1/3 HP 125 V, 250 V or 277 V
DC Contact Rating - Snap Action Switch
1 /2A 125 V; 1/4 A 250 V
Contact Form- Switches
SPDT
Housing Material
PCT Polyester Thermoplastic
Watertight - Snap Action Switch
No
Release Force
0.25 ozf
Operating Force
3.1 oz.
Electrical Connection - Snap Action Switch
3/16 in Quick Connect
Series
V7
Max. Pretravel
0.052 in
Contact Form
1NO/1NC
Over Travel
0.041 in
Terminal Type
Quick Connect
Type of Actuator
Short Roller Lever
Operating Temp. Range
-40 Degrees C to 85 Degrees C [-40 Degrees F to 185 Degrees F], options for 175 Degrees C [347 Degrees F]
Current Rating
3A
Standards
CSA, ENEC, RoHS, UL Listed
Differential Travel
0.012 in
Voltage Rating
250VAC
AC Contact Rating
11 A @ 125 V
DC Contact Rating
0.25 A @ 250 V, 0.5 A @ 125 V
Current Rating - nominal
10A
Force to Operate
3.1 oz (0.88N) OF
Differential-Travel - max
0.011 in (0.28mm) DT
Operator Configuration
Standard
Contact Rating
11A 125-277V AC 0.25A 250V DC
Head
Roller Lever
Pre-Travel - max
0.05 in (1.27mm) PT
Connection Configuration
Spade Tab, 0.188 in.Wide x 0.020 in.Thick
Head Action
Spring Return, Standard
Connection
Quick Connect Terminal
Operating Temperature
-40°F (-40°C) to 185°F (85°C)
Type
Miniature Limit Switch
Over-Travel
0.04 in (1.02mm) OT
Overtravel
0.04 in
Center Mounting Hole Distance
0.88 in
Operating Temperature - Maximum
365 Degrees F
Pretravel
0.05 in
Operating Force - Maximum
3.1 ozf
Electrical Connection
Quick Connect
Differential Travel - Maximum
0.011 in
Operating Temperature - Minimum
-40 Degrees F
Body Material
Polyester
Actuator Style
Roller Lever

Description

Miniature Snap Action Switch, Lever, Roller, Short, AC Contact Rating - Snap Action Switch 11 A 1/3 HP 125 V, 250 V or 277 V, DC Contact Rating - Snap Action Switch 1 /2A 125 V; 1/4 A 250 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 0.82 in, Height - Snap Action Switch 0.63 in, Width - Snap Action Switch 1.14 in, Depth - Snap Action Switch 0.4 in, Electrical Connection - Snap Action Switch 3/16 in Quick Connect
