Shop TELEMECANIQUE SENSORS

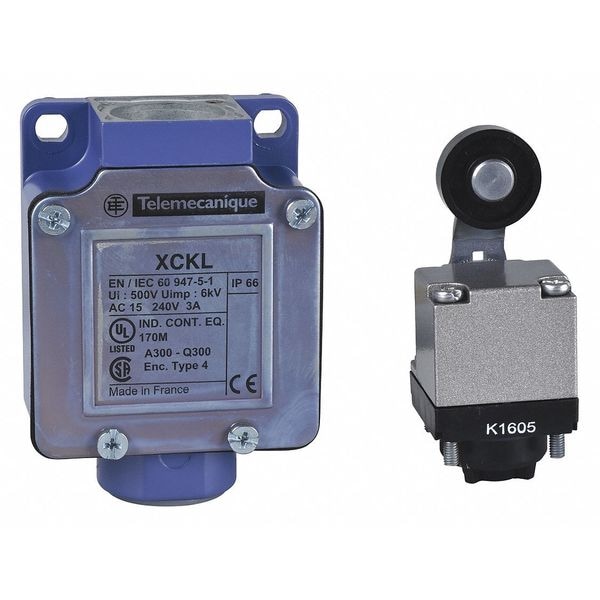

Limit Switch, Roller Lever, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Top

  • Mfr # XCKL115

  • Zoro # G0560905

product price:  $159.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A @ 240V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XCKL115
Zoro #
G0560905
UPC #
785901646495
Country of Origin
France

Dimensions

Width
52 mm
Body Depth - Limit Switch
30 mm
Body Height - Limit Switch
72mm

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A @ 240V
Amps
10
Movement
rotary
IP Rating
IP66 conforming to EN/IEC 60529
Electrical Connection
screw-clamp terminals 1 x 0.34, 2 x 1.5 sq mm
Standards
IEC 60204-1, CSA C22.2 No 14, IEC 60947-5-1, EN 60204-1, EN 60947-5-1, UL 508
Body Material
zamak
Operating Temp. Range
-25-70 Degrees C
Series
XCKL
Special Features
lateral approach, 2 directions
Actuator Style
Roller Lever Plunger
Certification
CSA, UL
Body Style (Limit Switch)
fixed
Contact Action
snap action
Weight
0.285 kg
Mechanical Durability
15000000 cycles
Min. Actuation Velocity Horizontal
1.5 m/s
Shock Resistance
50 gn 11 ms EN/IEC 60068-2-27
Short Circuit Protection
10 A cartridge fuse gG
Head Type
rotary head
Actuation Type
by 30 Degree cam
Electrical Durability
5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, inductive, 24 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, inductive, 48 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Vibration Resistance
25 gn 10-500 Hz)EN/IEC 60068-2-6
Type Of Operator
spring return roller lever thermoplastic
Number Of Poles
2
Operating Torque - Maximum
0.89 in-lb

Description

Limit Switch
