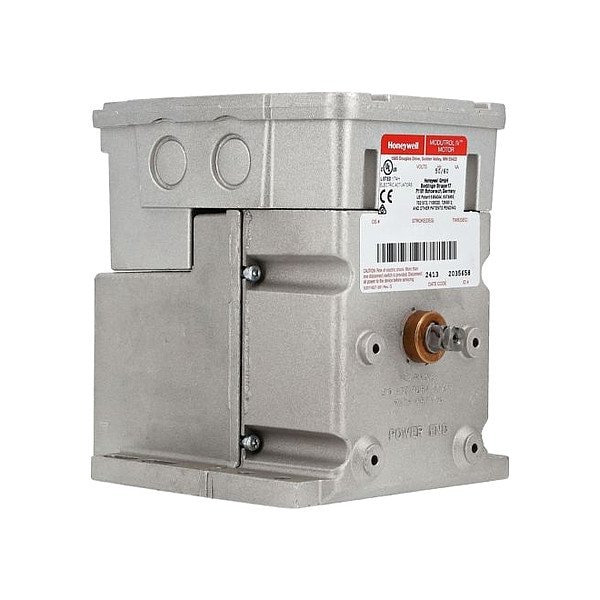

Modutrol Actuator, 5.5 in W
- Mfr # M9164D1009/U
- Zoro # G416381417
product price:Â
$
850.99
/ea
Free Shipping & Returns
Key Features
Voltage
24V AC
Operating Temperature - Maximum
150 Degrees F
Stroke Degree
160 Degrees
Number of Auxiliary Switches
0
Power Consumption
10 VA
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- M9164D1009/U
- Zoro #
- G416381417
- UPC #
- 085267059435
- Country of Origin
- United States
- Item
- Modutrol Actuator
- Voltage
- 24V AC
- Operating Temperature - Maximum
- 150 Degrees F
- Stroke Degree
- 160 Degrees
- Number of Auxiliary Switches
- 0
- Power Consumption
- 10 VA
- Control Signal
- Proportional
- Cycle Time
- 30 sec
- Standards
- CSA, File No. LR1620, Guide 400-E, UL File No. ED4436, Guide No. XAPX
- Installation Orientation
- Horizontal
- Operating Temperature - Minimum
- 40 Degrees F
- Torque
- 35 lb-in
- Frequency
- 50 or 60 Hz
- NEMA Rating
- 3
- Housing Material
- Aluminum
- Return Action
- Non-Spring Return
- Electrical Connection Type
- Quick Connect Terminals
- Minimum Operating Temperature
- 40 Degrees F
- Maximum Operating Temperature
- 150 Degrees F
- Rated Torque
- 35 lb-in
- Input Voltage
- 24V AC
- Application
- Dampers
Dimensions
- Overall Width
- 5 1/2 in
- Overall Height
- 6 1/2 in
- Overall Depth
- 7 3/8 in
Description
Modutrol Actuator, Rated Torque 35 lb-in, Input Voltage 24V AC, Electrical Connection Type Quick Connect Terminals, NEMA Rating 3, Stroke Degree 160 Degrees , Maximum Operating Temperature 150 Degrees F, Minimum Operating Temperature 40 Degrees F, Overall Width 5 1/2 in, Application Dampers, Number of Auxiliary Switches 0
