This item is Discontinued.

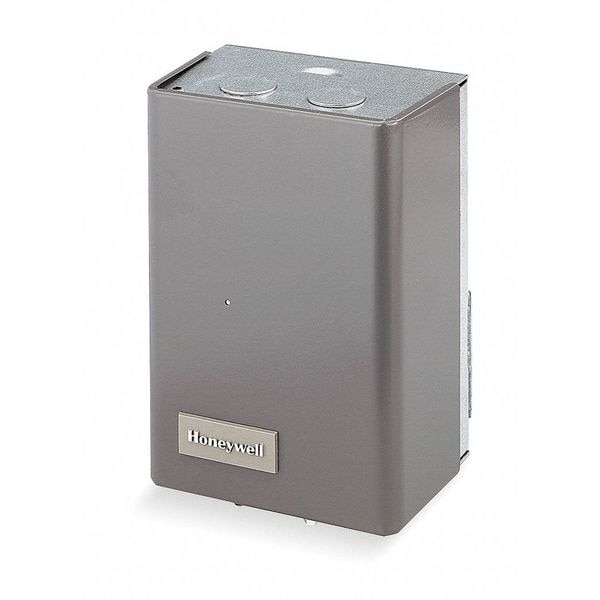

Honeywell Relay, Aquastat L8148J1009

Relay, Aquastat (Discontinued)

  • Mfr # L8148J1009
  • Zoro # G4793597
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L8148J1009
Zoro #
G4793597
UPC #
-
Country of Origin
United States

Dimensions

Height (In.)
4 5/16 in
Width (In.)
6 1/8 in
Depth (In.)
3 1/8 in
Overall Height
4 3/8 in
Height
4 5/16"
Width
6 1/8"
Insulation Depth (In.)
1 1/2 to 3 less well
Overall Width
6 1/8 in
Overall Depth
3 1/8 in

Details

Item
Immersion Controller, Multizone
Type
High Limit and Relay Control of Burner and Circulation Control
Full Load Amps @ 120VAC
7.4
Full Load Amps @ 240VAC
3.7
Temp. Range
High Limit 120 Degrees to 240 Degrees F
System Switching
SPST
Application
Aquastat Relay
Burner Control Circuit
24V or mV
Locked Rotor Amps @ 120V
44.4
Requires
High Limit Protection with Switching Relay Control of Burner and Circulator Motors
Includes
Tradeline
Mounting
Horizontal or Vertical
Burner Control Circuit @ 24V (A)
0.8
Agency Compliance
UL
Differential
8 Degrees F Fixed
Humidity Range (% RH)
Non-Condensing 0 To 95
Locked Rotor Amps @ 240V
22.7
Product Type
Immersion Controller
Full Load Current @ 120V AC
7.4 A
Maximum Control Temperature
240 Degrees F
Locked Rotor Current @ 120V
44.4 A
Full Load Current @ 240V AC
3.7 A
Differential Temperature
8 Degrees F Fixed
Locked Rotor Current @ 240V
22.7 A
Minimum Control Temperature
120 Degrees F
Mounting Orientation
Horizontal, Vertical

Description

Immersion Controller, Multizone, Application Aquastat Relay, Maximum Control Temperature 240 Degrees F, Minimum Control Temperature 120 Degrees F, Differential Temperature 8 Degrees F Fixed, Mounting Orientation Horizontal, Vertical, Product Type Immersion Controller, Overall Depth 3 1/8 in, Overall Height 4 3/8 in, Overall Width 6 1/8 in, Full Load Current @ 120V AC 7.4 A, Full Load Current @ 240V AC 3.7 A
