Shop HONEYWELL

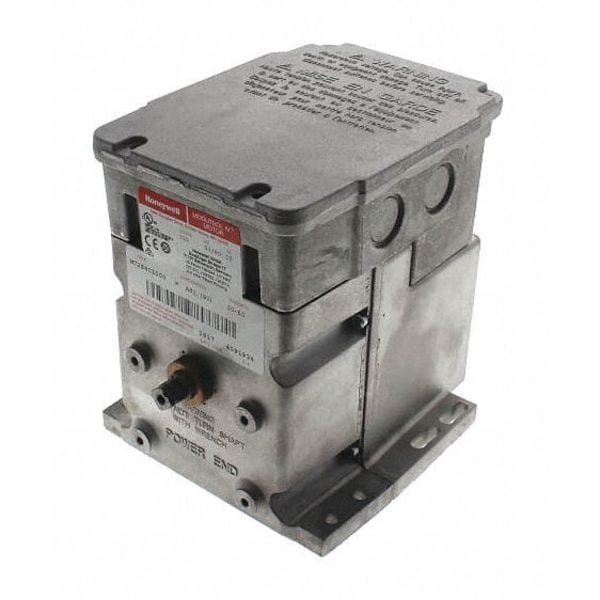

Replaces M744T1004. 120- V 50/60 Hz. 15V

  • Mfr # M7284C1000/U

  • Zoro # G0477657

product price:  $1,422.99
/ea
Free Shipping & Returns

Key Features

Mounting Type
Foot Mounted
Spring Return
Non-Spring Return
Signal Type
Proportional
Torque
150 in-lb
Voltage
120V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M7284C1000/U
Zoro #
G0477657
UPC #
-
Country of Origin
United States

Dimensions

Width
5 1/2 in
Depth
7 5/16 in
Height
6 7/16 in
Overall Height
6 1/2 in
Overall Width
5 1/2 in
Overall Depth
7 3/8 in

Details

Mounting Type
Foot Mounted
Spring Return
Non-Spring Return
Signal Type
Proportional
Torque
150 in-lb
Voltage
120V AC
Shaft Type
Double-Ended
For Use With
Combustion Air Dampers Used In Residential or Commercial HVAC Equipment, Control of Economizer Systems, Ventilation Dampers
Includes
Transformer
Replaces Honeywell Motors
Mfr. No. M744T1004
Power Consumption
15 VA
Switch Type
2 SPDT
Motor Direction
CW
Item
Actuator
Stroke Deg.
90 to 160
Timing
30 to 60 sec
Power Rating
13W
Ambient Temp. Range
-40 Degrees to 150 Degrees F
Electrical Connections
Screw Terminals
Minimum Operating Temperature
-40 Degrees F
Shaft Rotation
CW
NEMA Rating
3
Stroke Degree
90 to 160 Degrees
Electrical Connection Type
Screw Terminals
Product Type
Actuator
Valve Application
Damper
Rated Torque
150 in-lb
Time to Close
60 sec
Application
Dampers, Economizers
Contact Form
SPDT
Maximum Operating Temperature
150 Degrees F
Number of Auxiliary Switches
2
Input Voltage
120V AC

Description

Actuator, Valve Application Damper, Signal Type Proportional, Rated Torque 150 in-lb, Input Voltage 120V AC, Contact Form SPDT, Electrical Connection Type Screw Terminals, NEMA Rating 3, IP Rating Not Applicable, Spring Return Non-Spring Return, Time to Close 60 sec, Shaft Type Double-Ended, Shaft Rotation CW, Stroke Degree 90 to 160 Degrees , Mounting Type Foot Mount, Maximum Operating Temperature 150 Degrees F, Minimum Operating Temperature -40 Degrees F, Overall Width 5 1/2 in
