  11. Round Motorized Damper, Retrofit, Dia 8 In

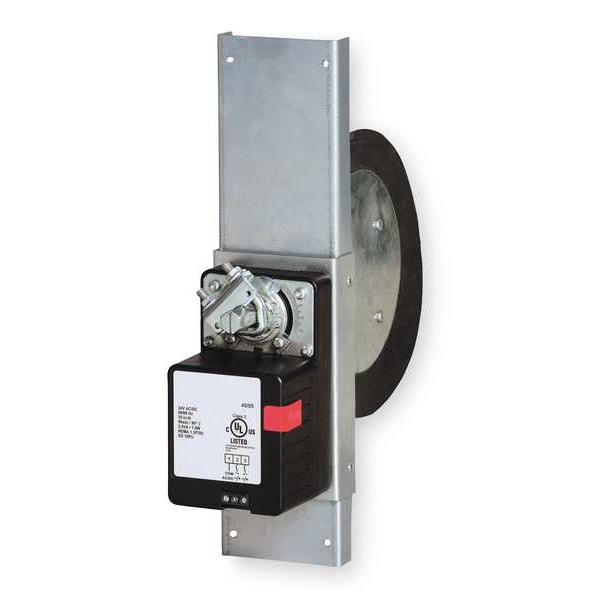

Honeywell Round Motorized Damper, Retrofit, Dia 8 In RRD8 - main

Round Motorized Damper, Retrofit, Dia 8 In

  • Mfr # RRD8

  • Zoro # G4777759

product price: $264.99
/ea
Free Shipping & Returns

Key Features

Includes
(12) Mounting Screws; (4) 1-1/2 in Self-Drilling Hex Washer Head Screws; Adhesive Backed Cutout Template
Type
Retrofit Zoning
Output Amps
2.5 VA
Depth (In.)
10 3/8 in
Width (In.)
10 3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RRD8
Zoro #
G4777759
UPC #
-
Country of Origin
Mexico

Dimensions

Depth (In.)
10 3/8 in
Width (In.)
10 3/4 in
Height (In.)
2 5/8 in
Dia. (In.)
8 in
Overall Width
2 5/8 in
Overall Height
3 1/8 in
Rough Opening Width
8 in
Overall Diameter
8 in
Blade Material Thickness
20 ga
Overall Length
3 1/2 in
For Nominal Duct Diameter
8 in
Rough Opening Diameter
8 in
Rough Opening Length
8 in

Details

Item
Round Motorized Damper
Includes
(12) Mounting Screws; (4) 1-1/2 in Self-Drilling Hex Washer Head Screws; Adhesive Backed Cutout Template
Type
Retrofit Zoning
Output Amps
2.5 VA
For Use With
4XA22, 4XA24, 4XA26
Torque (In.-Lbs.)
35 in-lb
Voltage (AC)
24
Terminal Designations
M1, M4, M6
Requires
Zone Control Panel
Rotation Angle (Deg.)
90 Degrees
Connection
3 Wires
Timing (Sec.)
90 sec
Application
Heating And Cooling Systems
Ambient Temp. Range
45 to 122 F
Standards
UL Listed
Nameplate Voltage
24V DC
Damper Application
Motorized
Frequency
50/60 Hz
For Duct Shape
Round
Blade Material
Galvanized Steel
Rough Opening Shape
Round
Frame Material
Steel
Includes Motor
Yes
Maximum Temperature Rating
122 Degrees F
Full Load Current
2.5 A
Electrical Connection
Hardwired
Damper Type
Dynamic

Description

Round Motorized Damper, For Nominal Duct Diameter 8 in, Damper Application Motorized, Number of Panels Not Applicable, Overall Height 3 1/8 in, Overall Length 3 1/2 in, Rough Opening Shape Round, For Duct Shape Round, Overall Width 2 5/8 in, Frame Material Thickness Not Applicable, Blade Material Galvanized Steel, Maximum Air Pressure Not Applicable, Overall Diameter 8 in, Rough Opening Length 8 in, Rough Opening Width 8 in, Damper Type Dynamic, Maximum Air Velocity Not Applicable
