  11. Single-Gas Detector, Audible, Vibrating, Visual, 1 yr Battery Life

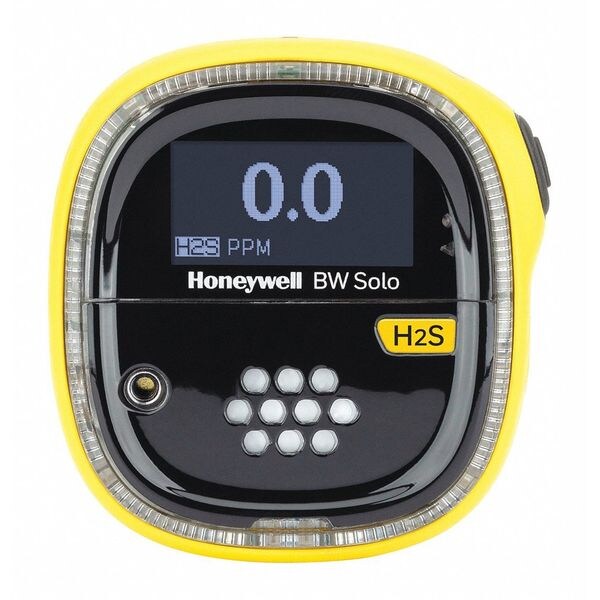

Honeywell Single-Gas Detector, Audible, Vibrating, Visual, 1 yr Battery Life BWS1-H2-Y - main

Single-Gas Detector, Audible, Vibrating, Visual, 1 yr Battery Life

  • Mfr # BWS1-H2-Y

  • Zoro # G5721163

product price: $503.99
/ea
Free Shipping & Returns

Key Features

Gas Type
H2S
Operating Temp. Range
-40 Degrees to 60 Degrees C
Alarm Setting
High 15 ppm, Low 10 ppm
Detects
hydrogen Sulfide
Standards
ABS Type Approved 21-2143903-PDA, AEx/Ex ia IIC T4 Ga -40 Degrees C Less Than or Equal To Tamb Less Than or Equal To 60 Degrees C, ATEX Sira 18ATEX2243, CSA Certified, CE 2460 Ex II 1G Ex ia IIC T4 Ga, Ex I M1 Ex ia I Ma -40 Degrees C Less Than or Equal To Tamb Less Than or Equal To 60 Degrees C, FCC ID: SU3BWS1, IC:20969-BWS1, IECEX: IECEX SIR 18.0058 Ex ia IIC T4 Ga/Ex ia I Ma -40 Degrees C Less Than or Equal To Tamb Less Than or Equal To 60 Degrees C, INMETRO: DNV 19.0109 Ex ia IIC T4 Ga -40 Degrees C Less Than or Equal To Ta Less Than or Equal To 60 Degrees C, RED:RE-D Directive 2014/53/EU
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BWS1-H2-Y
Zoro #
G5721163
UPC #
-
Country of Origin
Mexico

Dimensions

Height
2 5/8 in
Width
2 5/8 in
Depth
1 5/8 in
Overall Width
2.6 in
Overall Depth
1.4 in
Battery Size
2/3 AA
Manufacturer Warranty Length
3 yr
Overall Height
2.7 in

Details

Item
Single-Gas Detector
Gas Type
H2S
Operating Temp. Range
-40 Degrees to 60 Degrees C
Alarm Setting
High 15 ppm, Low 10 ppm
Detects
hydrogen Sulfide
Standards
ABS Type Approved 21-2143903-PDA, AEx/Ex ia IIC T4 Ga -40 Degrees C Less Than or Equal To Tamb Less Than or Equal To 60 Degrees C, ATEX Sira 18ATEX2243, CSA Certified, CE 2460 Ex II 1G Ex ia IIC T4 Ga, Ex I M1 Ex ia I Ma -40 Degrees C Less Than or Equal To Tamb Less Than or Equal To 60 Degrees C, FCC ID: SU3BWS1, IC:20969-BWS1, IECEX: IECEX SIR 18.0058 Ex ia IIC T4 Ga/Ex ia I Ma -40 Degrees C Less Than or Equal To Tamb Less Than or Equal To 60 Degrees C, INMETRO: DNV 19.0109 Ex ia IIC T4 Ga -40 Degrees C Less Than or Equal To Ta Less Than or Equal To 60 Degrees C, RED:RE-D Directive 2014/53/EU
Features
Compatible with Honeywell IntelliDoX, Complete with an Extensive Selection of Sensor Options, Connected Bluetooth Low Energy (BLE) Capabilities Quick Specs, Display for Multiple Languages, Serviceability, User-Friendly Operation
Battery Type
Lithium
Interchangeable Sensors
No
Resolution
0.1 ppm
Sensor Range
0 to 500 ppm
Display
LCD
Alarm Type
Audible, Vibrating, Visual
Battery Life
1 yr
Housing Color
Yellow
Includes
Concussion Proof Housing, Stainless Steel Alligator Clip, Test Cap with 1 ft of Hose
Operating Humidity - Maximum
95 %
Hazardous Location Specification
Class I Divisions 1, Zone 0 Groups IIC
Communication Protocol
Bluetooth
Temperature Code
T4
Display Type
Digital
Visual Alert Type
Red LED
Measurement Range
Hydrogen Sulfide (0 to 200 ppm)
Maintainability
Maintainable
Operating Frequency
2402 to 2480 MHz
Sensor Type
Electrochemical
Resistance Properties
Dust Resistant, Water Resistant
Alarm Setting Adjustment
Adjustable Alarm Setting
Chemical Formula
CIO2, CL2, CO, ETO, H2, H2S, HCN, NH3, NO, NO2, O2, O3, PH3, SO2
Battery Chemistry
Lithium
Number of Sensors
1
Rechargeable Battery
No
Status Indicator
LED
Replaceable Battery
Yes
Sensor Life
2 yr
Alert Type
Light, Sound, Vibration
IP Rating
IP68
Compatible Systems and Services
Android, iOS
Operating Temperature - Minimum
-40 Degrees F
Number of Gases Detected
1
Series
BW Solo
Operating Humidity - Minimum
5 %
Includes Probe
No
Operating Temperature - Maximum
140 Degrees F
Power Source
Battery
Mount Type
Portable/Handheld
Alarm Volume Level
95 dB
For Location
Outdoor
Data Logger
Yes
Voltage
3.6V
Operating Voltage
3.6V

Description

Single-Gas Detector, Replaceable Battery Yes, Product Type Single-Gas Detector, Display Screen Type LCD Dot Matrix, Includes Probe No, Housing Color Yellow, Gas Detected Hydrogen Sulfide, Communication Protocol Bluetooth, Series BW Solo, Sub-Brand BW, Battery Size 2/3 AA, Operating Humidity - Maximum 95 Percent, Status Indicator LED, Rechargeable Battery No, Resistance Properties Dust Resistant, Water Resistant, Operating Humidity - Minimum 5 Percent, Sensor Type Electrochemical
