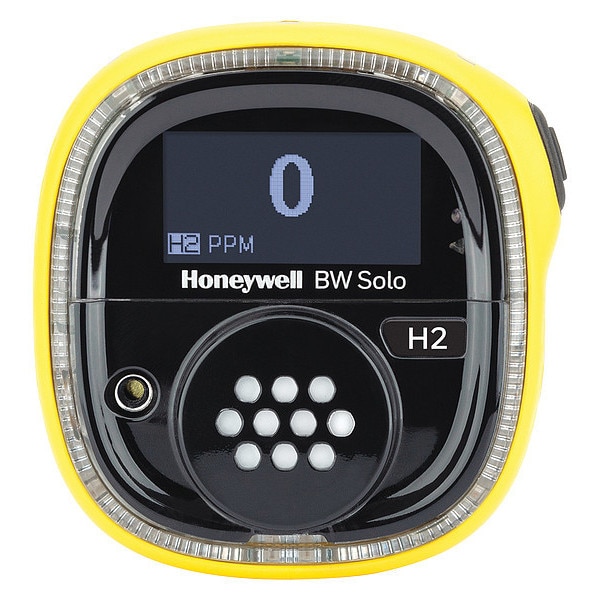

Honeywell Single-Gas Detector, Audible, Vibrating, Visual, 1 yr Battery Life BWS1-R-Y - main

Single-Gas Detector, Audible, Vibrating, Visual, 1 yr Battery Life

  • Mfr # BWS1-R-Y

  • Zoro # G3943841

product price: $1,005.99
/ea
Free Shipping & Returns

Key Features

Gas Type
H2
Operating Temp. Range
-20 Degrees to 50 Degrees C, -4 Degrees to 122 Degrees F
Alarm Setting
High 500 ppm, Low 100 ppm
Detects
Hydrogen
Standards
ABS Type Approved 21-2143903-PDA, AEx/Ex ia IIC T4 Ga -40 Degrees C Less Than or Equal To Tamb Less Than or Equal To 60 Degrees C, ATEX Sira 18ATEX2243, CSA Certified, CE 2460 Ex II 1G Ex ia IIC T4 Ga, Ex I M1 Ex ia I Ma -40 Degrees C Less Than or Equal To Tamb Less Than or Equal To 60 Degrees C, FCC ID: SU3BWS1, IC:20969-BWS1, IECEX: IECEX SIR 18.0058 Ex ia IIC T4 Ga/Ex ia I Ma -40 Degrees C Less Than or Equal To Tamb Less Than or Equal To 60 Degrees C, INMETRO: DNV 19.0109 Ex ia IIC T4 Ga -40 Degrees C Less Than or Equal To Ta Less Than or Equal To 60 Degrees C, RED:RE-D Directive 2014/53/EU
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BWS1-R-Y
Zoro #
G3943841
UPC #
-
Country of Origin
Mexico

Dimensions

Height
2 5/8 in
Width
2 5/8 in
Depth
1 5/8 in
Manufacturer Warranty Length
3 yr
Overall Height
2.7 in
Overall Width
2.6 in
Overall Depth
1.4 in
Battery Size
2/3 AA

Details

Item
Single-Gas Detector
Gas Type
H2
Operating Temp. Range
-20 Degrees to 50 Degrees C, -4 Degrees to 122 Degrees F
Alarm Setting
High 500 ppm, Low 100 ppm
Detects
Hydrogen
Standards
ABS Type Approved 21-2143903-PDA, AEx/Ex ia IIC T4 Ga -40 Degrees C Less Than or Equal To Tamb Less Than or Equal To 60 Degrees C, ATEX Sira 18ATEX2243, CSA Certified, CE 2460 Ex II 1G Ex ia IIC T4 Ga, Ex I M1 Ex ia I Ma -40 Degrees C Less Than or Equal To Tamb Less Than or Equal To 60 Degrees C, FCC ID: SU3BWS1, IC:20969-BWS1, IECEX: IECEX SIR 18.0058 Ex ia IIC T4 Ga/Ex ia I Ma -40 Degrees C Less Than or Equal To Tamb Less Than or Equal To 60 Degrees C, INMETRO: DNV 19.0109 Ex ia IIC T4 Ga -40 Degrees C Less Than or Equal To Ta Less Than or Equal To 60 Degrees C, RED:RE-D Directive 2014/53/EU
Features
Compatible with Honeywell IntelliDoX, Complete with an Extensive Selection of Sensor Options, Connected Bluetooth Low Energy (BLE) Capabilities Quick Specs, Display for Multiple Languages, Serviceability, User-Friendly Operation
Power Source
Battery
Display
LCD
Status Indicator
LED
Battery Life
1 yr
IP Rating
IP68
Sensor Life
2 yr
Alarm Type
Audible, Vibrating, Visual
Sensor Range
0 to 1000 ppm
Resolution
2 ppm
Includes
Concussion Proof Housing, Stainless Steel Alligator Clip, Test Cap with 1 ft of Hose
Housing Color
Yellow
Interchangeable Sensors
No
Battery Type
Lithium
Rechargeable Battery
No
Resistance Properties
Dust Resistant, Water Resistant
For Location
Outdoor
Battery Chemistry
Lithium
Replaceable Battery
Yes
Sensor Type
Electrochemical
Alert Type
Light, Sound, Vibration
Operating Humidity - Maximum
95 %
Maintainability
Maintainable
Temperature Code
T4
Includes Probe
No
Operating Humidity - Minimum
5 %
Chemical Formula
CIO2, CL2, CO, ETO, H2, H2S, HCN, NH3, NO, NO2, O2, O3, PH3, SO2
Operating Temperature - Minimum
-40 Degrees F
Operating Frequency
2402 to 2480 MHz
Compatible Systems and Services
Android, iOS
Number of Gases Detected
1
Number of Sensors
1
Visual Alert Type
Red LED
Measurement Range
H2 (0 to 1,000 ppm)
Communication Protocol
Bluetooth
Operating Temperature - Maximum
140 Degrees F
Mount Type
Portable/Handheld
Alarm Volume Level
95 dB
Data Logger
Yes
Alarm Setting Adjustment
Adjustable Alarm Setting
Hazardous Location Specification
Class I Divisions 1, Zone 0 Groups IIC
Series
BW Solo
Display Type
Digital
Voltage
3.6V
Operating Voltage
3.6V

Description

Single-Gas Detector, Replaceable Battery Yes, Product Type Single-Gas Detector, Display Screen Type LCD Dot Matrix, Includes Probe No, Housing Color Yellow, Gas Detected Hydrogen, Communication Protocol Bluetooth, Series BW Solo, Sub-Brand BW, Battery Size 2/3 AA, Operating Humidity - Maximum 95 Percent, Status Indicator LED, Rechargeable Battery No, Resistance Properties Dust Resistant, Water Resistant, Operating Humidity - Minimum 5 Percent, Sensor Type Electrochemical, Temperature Code T4

Restrictions

Hazardous material
