  7. Snap Action Switch, Finger Grip, Plunger Actuator, SPDT, 10 A at 240 V AC Contact Rating

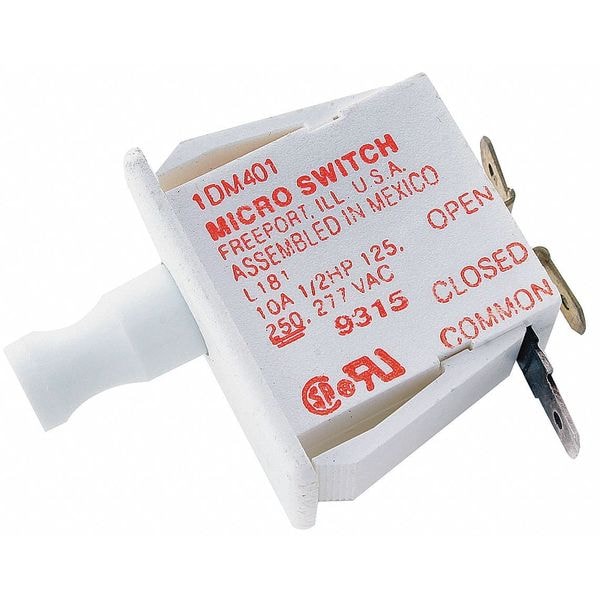

Honeywell Snap Action Switch, Finger Grip, Plunger Actuator, SPDT, 10 A at 240 V AC Contact Rating 1DM401 - main

Snap Action Switch, Finger Grip, Plunger Actuator, SPDT, 10 A at 240 V AC Contact Rating

  • Mfr # 1DM401

  • Zoro # G4716126

product price:  $12.59
/ea

Key Features

Actuator Type - Snap Action Switch
Finger Grip, Plunger
AC Contact Rating - Snap Action Switch
10 A @ 240 V
Contact Form- Switches
SPDT
Height - Snap Action Switch
1.12 in
Width - Snap Action Switch
1.25 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1DM401
Zoro #
G4716126
UPC #
-
Country of Origin
Mexico

Dimensions

Height - Snap Action Switch
1.12 in
Width - Snap Action Switch
1.25 in
Depth - Snap Action Switch
0.55 in
Length
1.25"
Depth
0.55"
Actuator Length
1.25"
Height
1.12"
Mounting Dimension
1.12 x 0.55" Panel Hole
Mounting Dimension - Snap Action Switch
1.12 in x 0.55 in Panel Hole
Nominal Dimensions
Mtg Hole HxW 1.12x0.55" (28.4x14.0mm)
Body Height
0.92 in
Overall Depth
0.55 in
Overall Height
1.12 in
Body Width
0.52 in
Overall Width
1.25 in
Body Depth
0.97 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Finger Grip, Plunger
AC Contact Rating - Snap Action Switch
10 A @ 240 V
Contact Form- Switches
SPDT
Over Travel
0.52 in
Electrical Connection - Snap Action Switch
Quick Connect
Differential Travel
0.045 in
Terminal Type
Quick Connect
Release Force
3 ozf
Voltage Rating
250VAC
Standards
CSA, UL Listed
Operating Force
15 oz
Current Rating
10A
Operating Temp. Range
-35 Degrees to 180 Degrees F
Series
DM
Max. Pretravel
0.18 in
Contact Form
1NO/1NC
Watertight - Snap Action Switch
No
Housing Material
Polyester
Type of Actuator
Finger Grip Plunger
AC Contact Rating
10 A @ 240 V
Electrical Rating
10A/125-277V AC
Poles/Contacts
SPDT 1NO 1NC
Connection
Quick Connect Terminal
Free Position
0.700 (17.8mm) Extended
Construction
Polyester Housing, White Plunger, White Faceplate
Operating Temperature
-35 to 180 Degree F (-37 to 82 Degree C)
Switch Type
Snap-in Panel Mount Door Switch
Differential Travel - Maximum
0.045 in
Body Material
Polyester
Operating Temperature - Minimum
-35 Degrees F
Overtravel
0.52 in
Electrical Connection
Quick Connect
Pretravel
0.18 in
Actuator Style
Plunger
Operating Force - Maximum
15 ozf
Operating Temperature - Maximum
180 Degrees F

Description

Snap Action Switch, Finger Grip, Plunger, AC Contact Rating - Snap Action Switch 10 A @ 240 V, Contact Form- Switches SPDT, Height - Snap Action Switch 1.12 in, Width - Snap Action Switch 1.25 in, Depth - Snap Action Switch 0.55 in, Electrical Connection - Snap Action Switch Quick Connect, Mounting Dimension - Snap Action Switch 1.12 in x 0.55 in Panel Hole, Series DM
