Shop HONEYWELL

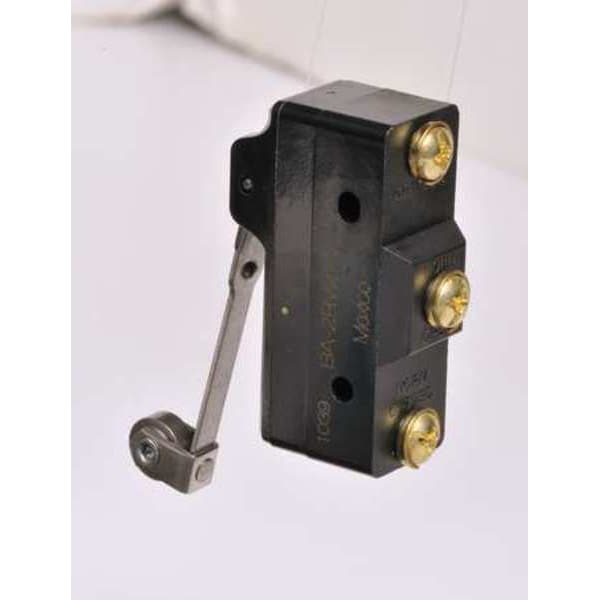

Snap Action Switch, Lever, Roller Actuator, SPDT, 20 A at 480 V AC Contact Rating

  • Mfr # BA-2RV2-A2

  • Zoro # G0358994

product price:  $27.59
/ea

Key Features

Actuator Type - Snap Action Switch
Lever, Roller
AC Contact Rating - Snap Action Switch
20 A @ 480 V
DC Contact Rating - Snap Action Switch
20 A @ 230 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
1.9 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BA-2RV2-A2
Zoro #
G0358994
UPC #
-
Country of Origin
Mexico

Dimensions

Lever Actuator Length - Snap Action Switch
1.9 in
Height - Snap Action Switch
0.95 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.07 in
Depth
0.069"
Mounting Dimension
1.00" Centers
Length
1.94"
Height
0.95"
Actuator Length
1.90"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Mounting Hole Diameter
1/8 in
Overall Depth
0.07 in
Lever Actuator Length
1.9 in
Overall Width
1.94 in
Overall Height
0.95 in
Body Depth
0.07 in
Body Width
1.94 in
Body Height
0.95 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Lever, Roller
AC Contact Rating - Snap Action Switch
20 A @ 480 V
DC Contact Rating - Snap Action Switch
20 A @ 230 V
Contact Form- Switches
SPDT
Housing Material
Phenolic
Operating Force
3.5 oz
Over Travel
0.06 in
Electrical Connection - Snap Action Switch
Screw
Differential Travel
0.085 in
Voltage Rating
125/250/480VAC
Series
BA
Contact Form
1NO/1NC
Watertight - Snap Action Switch
No
Standards
CE, CSA, ENEC, UKCA, UL Listed
Max. Pretravel
0.47 in
Terminal Type
Screw
Type of Actuator
Roller Lever
Operating Temp. Range
-67 Degrees to 185 Degrees F
Release Force
0.5 ozf
Current Rating
20A
DC Contact Rating
0.25 A @ 250 V, 0.5 A @ 125 V
AC Contact Rating
20 A @ 125 to 480 V
Contact Rating
20A 125-480Vac (10A125Vac Tungsten) 0.5A 125Vdc 0.25A 250Vdc
Connection
Screw Terminal
Connection Configuration
Bottom Facing Screw w/Cup Washer, 6-32 x 0.218 in.
Over-Travel
0.06 in (1.52mm) OT
Force to Operate
3.5 oz (0.97N) OF
Operating Temperature
-67 Degrees F (-55 Degrees C) to 185 Degrees F (85 Degrees C)
Pre-Travel - max
0.47 in (11.9mm) PT
Head Action
Spring Return, Standard
Differential-Travel - max
0.085 in (2.16mm) DT
Operator Configuration
Standard
Type
Basic Limit Switch
Differential Travel - Maximum
0.085 in
Body Material
Phenolic
Electrical Connection
Screw Terminal
Operating Force - Maximum
3.5 ozf
Center Mounting Hole Distance
1 in
Operating Temperature - Minimum
-67 Degrees F
Pretravel
0.468 in
Overtravel
0.06 in
Operating Temperature - Maximum
185 Degrees F
Operating Force - Minimum
0.97 N
Actuator Style
Roller Lever
Mounting Hole Horizontal Center to Center Distance
1 in

Description

Snap Action Switch, Lever, Roller, AC Contact Rating - Snap Action Switch 20 A @ 480 V, DC Contact Rating - Snap Action Switch 20 A @ 230 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1.9 in, Height - Snap Action Switch 0.95 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.07 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series BA
