Shop HONEYWELL

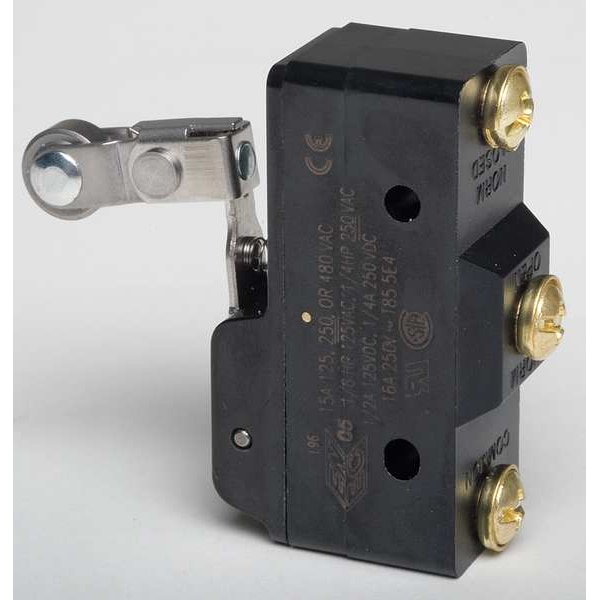

Snap Action Switch, Lever, Long, Roller Actuator, SPDT, 15 A at 480 V AC Contact Rating

  • Mfr # BZ-2RW826-A2

  • Zoro # G3032127

product price:
$
30.15
/ea

Key Features

Actuator Type - Snap Action Switch
Lever, Long, Roller
AC Contact Rating - Snap Action Switch
15 A @ 480 V
DC Contact Rating - Snap Action Switch
15 A @ 240 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
1.26 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
BZ-2RW826-A2
Zoro #
G3032127
UPC #
-
Country of Origin
Mexico
Item
Snap Action Switch
Actuator Type - Snap Action Switch
Lever, Long, Roller
AC Contact Rating - Snap Action Switch
15 A @ 480 V
DC Contact Rating - Snap Action Switch
15 A @ 240 V
Contact Form- Switches
SPDT
Terminal Type
Screw
Release Force
1.5 ozf
Current Rating
15a
Over Travel
0.094 in
Max. Pretravel
0.078 in
Electrical Connection - Snap Action Switch
Screw
Operating Force
6 oz
Standards
CE, CSA, ENEC, UKCA, UL Listed
Operating Temp. Range
-67 Degrees to 185 Degrees F
Watertight - Snap Action Switch
No
Housing Material
Phenolic
Differential Travel
0.003 to 0.020 in
Series
BZ
Contact Form
1NO/1NC
Voltage Rating
125/250/480VAC
Type of Actuator
Long Roller Lever
AC Contact Rating
15 A @ 480 V
DC Contact Rating
15 A @ 240 V
Operating Temperature
-67°F (-55°C) to 185°F (85°C)
Operator Configuration
One-Way
Force to Operate
6 oz (1.67N) OF
Differential-Travel - max
0.02 in (0.51mm) DT
Connection
Screw Terminal
Type
Basic Limit Switch
Contact Rating
15A 125-480V AC 0.5A 125V DC 0.25A 250V DC
Head
Roller Lever
Over-Travel
0.094 in (2.39mm) OT
Head Action
Spring Return, Standard
Connection Configuration
Bottom Facing Screw w/Cup Washer, 6-32 x 0.218 in.
Overtravel
0.094 in
Body Material
Phenolic
Electrical Connection
Screw Terminal
Operating Temperature - Maximum
185 Degrees F
Differential Travel - Maximum
0.02 in
Actuator Style
Roller Lever
Operating Force - Maximum
6 ozf
Center Mounting Hole Distance
1 in
Operating Force - Minimum
1.67 N
Differential Travel - Minimum
0.003 in
Pretravel
0.078 in
Operating Temperature - Minimum
-67 Degrees F
Mounting Hole Horizontal Center to Center Distance
1 in

Description

Snap Action Switch, Lever, Long, Roller, AC Contact Rating - Snap Action Switch 15 A @ 480 V, DC Contact Rating - Snap Action Switch 15 A @ 240 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1.26 in, Height - Snap Action Switch 0.95 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.07 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series BZ
