  7. Snap Action Switch, Lever, Roller, Short Actuator, SPDT, 15 A at 240 V AC Contact Rating

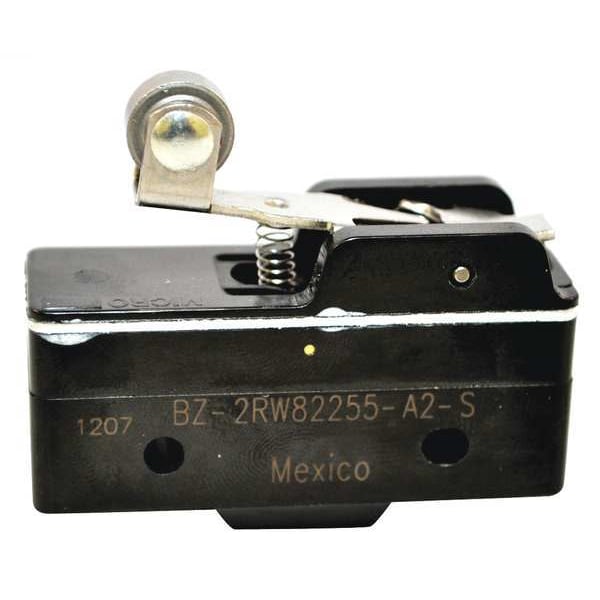

Honeywell Snap Action Switch, Lever, Roller, Short Actuator, SPDT, 15 A at 240 V AC Contact Rating BZ-2RW82255-A2-S - main

Snap Action Switch, Lever, Roller, Short Actuator, SPDT, 15 A at 240 V AC Contact Rating

  • Mfr # BZ-2RW82255-A2-S

  • Zoro # G4634777

product price:  $42.49
/ea

Key Features

Actuator Type - Snap Action Switch
Lever, Roller, Short
AC Contact Rating - Snap Action Switch
15 A @ 240 V
DC Contact Rating - Snap Action Switch
15 A @ 240 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
1.05 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BZ-2RW82255-A2-S
Zoro #
G4634777
UPC #
078454918141
Country of Origin
Mexico

Dimensions

Lever Actuator Length - Snap Action Switch
1.05 in
Height - Snap Action Switch
1 in
Width - Snap Action Switch
2 in
Depth - Snap Action Switch
0.7 in
Height
1.0"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Mounting Dimension
1.00" Centers
Actuator Length
1.05"
Length
2.0"
Depth
0.7"
Overall Depth
0.7 in
Body Height
1 in
Overall Height
1 in
Body Width
2 in
Body Depth
0.7 in
Lever Actuator Length
1.05 in
Mounting Hole Diameter
1/8 in
Overall Width
2 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Lever, Roller, Short
AC Contact Rating - Snap Action Switch
15 A @ 240 V
DC Contact Rating - Snap Action Switch
15 A @ 240 V
Contact Form- Switches
SPDT
Standards
CE, CSA, ENEC, UKCA, UL Listed
Watertight - Snap Action Switch
No
Contact Form
1NO/1NC
Type of Actuator
Short Roller Lever
Over Travel
0.094 in
Differential Travel
0.003 to 0.020 in
Electrical Connection - Snap Action Switch
Screw
Housing Material
General Purpose Phenolic
Current Rating
15a
Terminal Type
Screw
Voltage Rating
250VAC
Release Force
1.5 ozf
Operating Temp. Range
-67 Degrees to 185 Degrees F
Series
BZ
Max. Pretravel
0.078 in
Operating Force
6 oz
DC Contact Rating
15 A @ 240 V
AC Contact Rating
15 A @ 240 V
Operator Configuration
Sealed
Over-Travel
0.094 in (2.39mm) OT
Connection Configuration
Bottom Facing Screw w/Cup Washer, 6-32 x 0.218 in.
Construction
Phenolic
Head
Roller Lever
Force to Operate
6 oz (1.67N) OF
Type
Basic Limit Switch
Contact Rating
15A 125-480V AC 0.5A 125V DC 0.25A 250V DC
Connection
Screw Terminal
Operating Temperature
-67°F (-55°C) to 185°F (85°C)
Differential-Travel - max
0.02 in (0.51mm) DT
Head Action
Spring Return, Standard
Pretravel
0.078 in
Body Material
Phenolic
Center Mounting Hole Distance
1 in
Operating Temperature - Minimum
-67 Degrees F
Operating Temperature - Maximum
185 Degrees F
Overtravel
0.094 in
Differential Travel - Maximum
0.02 in
Differential Travel - Minimum
0.003 in
Operating Force - Maximum
6 ozf
Actuator Style
Roller Lever
Electrical Connection
Screw

Description

Snap Action Switch, Lever, Roller, Short, AC Contact Rating - Snap Action Switch 15 A @ 240 V, DC Contact Rating - Snap Action Switch 15 A @ 240 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1.05 in, Height - Snap Action Switch 1 in, Width - Snap Action Switch 2 in, Depth - Snap Action Switch 0.7 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series BZ
