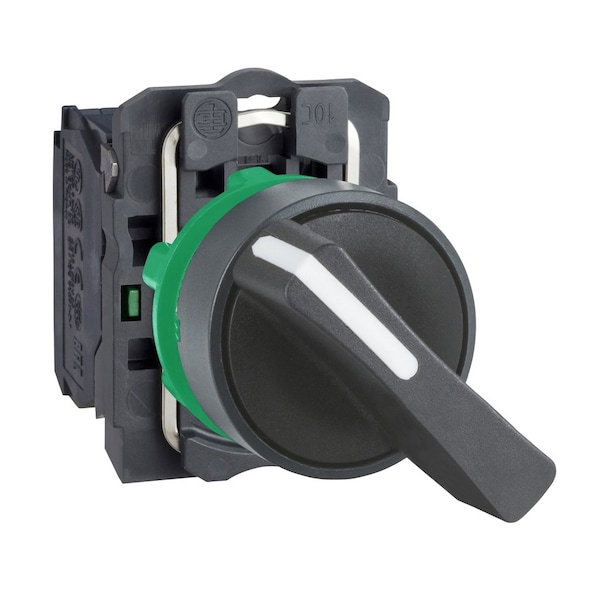

Non-Illum Selector Switch, Polyamide, 2P

original price: $45.39
5% off
new price: $42.95
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Size 22 mm
  • Basic Material Plastic
  • Type of Operator Extended Lever
  • Action Maintained / Maintained
  • Contact Form 1NO
See all product information

Product Information

Dimensions

Size 22 mm
Height 48 mm
Depth 70 mm
Width 30 mm
Mounting Diameter 22 mm

Details

Item Non-Illuminated Selector Switch
Basic Material Plastic
Type of Operator Extended Lever
Action Maintained / Maintained
Contact Form 1NO
Operator Head Material Polyamide
Cam No Cam
Color Black
NEMA Rating 1, 12, 13, 2, 3, 4, 4X
Bezel Material Plastic
Position 2
Bezel Color Black
Key Removal No Key
Standards CE Marked, CSA Certified File Number LR44087 Class 321103, UL Listed File Number E164353 CCN NKCR
Contact Rating 10A @ 600V AC
Switch Operation @ Position A O
NEMA Contact Rating Designation B600/Q600
Switch Operation @ Position B X
Switch Operation @ Position C No Third Position
Switch Operation @ Position D No Fourth Position
IP Rating 65
Electrical Shock Protection Class class II IEC 60536
[Ui] Rated Insulation Voltage 600 V 3)EN 60947-1
Contacts Type And Composition 1 NO
Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Product Certifications GL || BV || CSA || UL || LROS (Lloyds register of shipping) || DNV
[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1
Contacts Usage standard contacts
Device Presentation complete product
Product Or Component Type selector switch
Device Short Name XB5
Nema Degree Of Protection NEMA 13 || NEMA 4X
Tightening Torque 0.8-1.2 N.m EN 60947-1
Ambient Air Temperature For Operation -40-70°C
Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Head Type standard
Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
Operator Position Information 2 positions 90°
Contact Operation slow-break
Operator Profile black long handle
Contacts Material silver alloy (Ag/Ni)
Mechanical Durability 1000000 cycles
[Ie] Rated Operational Current 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage 6 kV EN 60947-1
Terminals Description Iso N°1 (13-14)NO
Ik Degree Of Protection IK06 IEC 50102
Resistance To High Pressure Washer 7000000 Pa 55°C 0.1 m
Shape Of Screw Head cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Ip Degree Of Protection IP67 IEC 60529 || IP69 || IP69K
Torque Value 0.14 N.m NO changing electrical state
Connections - Terminals screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
Shape Of Signaling Unit Head round
Protective Treatment TH
Electrical Reliability λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Ambient Air Temperature For Storage -40-70°C
Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1
Positive Opening without
Terminals Description Iso N°1 (13-14)NO

Description

Non-Illuminated Selector Switch, 22 mm, 2 Position, Maintained / Maintained Action, 1NO Contact Form, Type of Operator Extended Lever, Color Black, No Key Key Removal, Operator Head Material Polyamide, Basic Material Plastic, Bezel Material Plastic, Bezel Color Black, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation B600/Q600, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating 65, Cam No Cam, Switch Operation @ Position A O, Switch Operation @ Position B X
