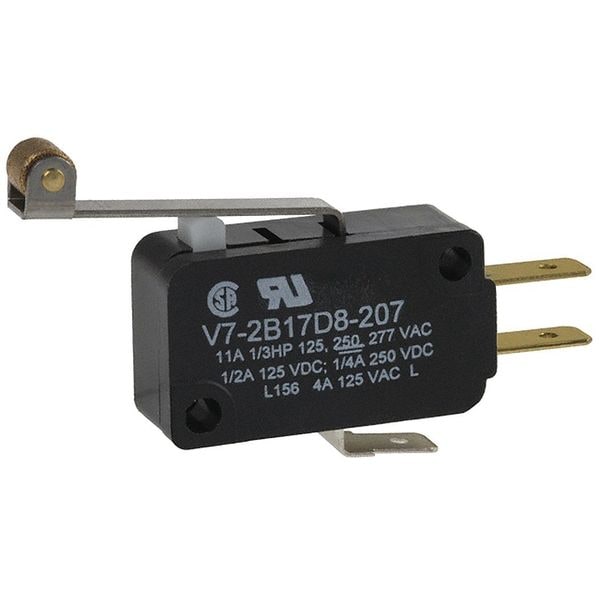

Snap Action Switch - V7 Series, SPDT, Long Roller Lever, 11A, Miniature

  • Mfr # V7-2B17D8-207

  • Zoro # G4584535

product price:  $4.89
/ea

Key Features

Actuator Type - Snap Action Switch
Lever, Long, Roller
AC Contact Rating - Snap Action Switch
11 A 1/3 HP 125 V, 250 V or 277 V
DC Contact Rating - Snap Action Switch
1 /2A 125 V; 1/4 A 250 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
1.35 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
V7-2B17D8-207
Zoro #
G4584535
UPC #
-
Country of Origin
Mexico

Dimensions

Lever Actuator Length - Snap Action Switch
1.35 in
Height - Snap Action Switch
0.63 in
Width - Snap Action Switch
1.14 in
Depth - Snap Action Switch
0.4 in
Actuator Length
1.35"
Mounting Dimension - Snap Action Switch
0.87 in Centers
Length
1.14"
Height
0.63"
Depth
0.4"
Mounting Dimension
0.41 x 0.87" Centers
Mounting Hole Diameter
1/8 in
Overall Height
0.63 in
Overall Width
1.14 in
Lever Actuator Length
1.35 in
Body Depth
0.4 in
Overall Depth
0.4 in
Body Width
1.14 in
Body Height
0.63 in

Details

Item
Miniature Snap Action Switch
Actuator Type - Snap Action Switch
Lever, Long, Roller
AC Contact Rating - Snap Action Switch
11 A 1/3 HP 125 V, 250 V or 277 V
DC Contact Rating - Snap Action Switch
1 /2A 125 V; 1/4 A 250 V
Contact Form- Switches
SPDT
Housing Material
PCT Polyester Thermoplastic
Voltage Rating
250VAC
Operating Force
0.5 N
Contact Form
1NO/1NC
Electrical Connection - Snap Action Switch
3/16 in Quick Connect
Release Force
0.1 ozf
Watertight - Snap Action Switch
No
Terminal Type
Quick Connect
Current Rating
3A
Standards
CSA, ENEC, RoHS, UL Listed
Series
V7
Differential Travel
0.025 in
Over Travel
0.065 in
Operating Temp. Range
-40 Degrees C to 85 Degrees C [-40 Degrees F to 185 Degrees F], options for 175 Degrees C [347 Degrees F]
Type of Actuator
Long Roller Lever
Max. Pretravel
0.115 in
AC Contact Rating
11 A @ 277 V
DC Contact Rating
0.25 A @ 250 V, 0.5 A @ 125 V
Operator Configuration
Standard
Contact Rating
11A 125-277V AC 0.25A 250V DC
Connection Configuration
Spade Tab, 0.188 in. in.Wide x 0.020 in. in.Thick
Type
Miniature Limit Switch
Connection
Quick Connect Terminal
Operating Temperature
-40°F (-40°C) to 185°F (85°C)
Current Rating - nominal
10A
Over-Travel
0.063 in (1.6mm) OT
Head
Roller Lever
Head Action
Spring Return, Standard
Differential-Travel - max
0.025 in (0.63mm) DT
Force to Operate
1.6 oz (0.44N) OF
Pre-Travel - max
0.11 in (2.8mm) PT
Center Mounting Hole Distance
0.88 in
Body Material
Polyester
Operating Force - Maximum
1.6 ozf
Electrical Connection
Quick Connect
Differential Travel - Maximum
0.025 in
Operating Temperature - Maximum
365 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Overtravel
0.063 in
Operating Force - Minimum
0.45 N
Actuator Style
Roller Lever
Pretravel
0.11 in
Mounting Hole Horizontal Center to Center Distance
22 mm

Description

Honeywell’s MICRO SWITCH V7 Miniature Snap Action Switch is constructed with materials and components rated for use in accordance with manufacturer specifications. This switch features a long roller lever actuator and features SPDT (Single Pole Double Throw) contact configuration; suitable for integration into compatible electrical circuits as specified by the user. The device operates with an operating force of 1.6 oz (0.44 N) and supports both AC and DC loads.

Key Features:

  • Actuator: Long roller lever, 1.35" length
  • Contact Form: SPDT (1NO/1NC)
  • Electrical Ratings: 11A @ 125–277V AC; 0.25A @ 250V DC; 0.5A @ 125V DC
  • Body Material: PCT polyester thermoplastic
  • Dimensions: Width – 1.14", Height – 0.63", Depth – 0.4"
  • Mounting Hole Distance: Center-to-center spacing of 0.87"; hole diameter of 1/8"
  • Connection Type: Quick connect terminals, spade tab (0.188" wide x 0.020" thick)
  • Travel Characteristics: Pretravel max – 0.11"; overtravel – 0.063"; differential travel max – 0.025"
  • Operating Temperature Range: -40°F to +185°F (-40°C to +85°C)
  • Standards Compliance: CSA, ENEC, RoHS, UL Listed
