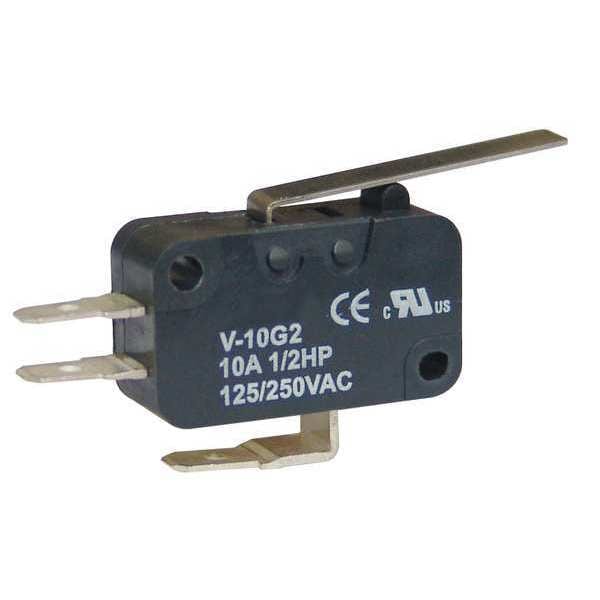

Miniature Snap Action Switch, Hinge, Lever Actuator, SPDT

  • Mfr # 6X292

  • Zoro # G0564164

product price:  $5.19
/ea

Key Features

Actuator Type - Snap Action Switch
Hinge, Lever
AC Contact Rating - Snap Action Switch
10 A @ 125 V; 10 A @ 250 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
1.07 in
Height - Snap Action Switch
0.62 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
6X292
Zoro #
G0564164
UPC #
190735544990
Country of Origin
China

Dimensions

Lever Actuator Length - Snap Action Switch
1.07 in
Height - Snap Action Switch
0.62 in
Width - Snap Action Switch
1.09 in
Actuator Length
1.07"
Mounting Dimension
0.87" Centers
Height
0.625"
Mounting Dimension - Snap Action Switch
0.87 in Centers
Length
1.09"
Overall Height
0.62 in
Body Height
0.62 in
Lever Actuator Length
1.07 in
Overall Width
1.09 in
Body Width
1.09 in

Details

Item
Miniature Snap Action Switch
Actuator Type - Snap Action Switch
Hinge, Lever
AC Contact Rating - Snap Action Switch
10 A @ 125 V; 10 A @ 250 V
Contact Form- Switches
SPDT
Release Force
0.25 ozf
Contact Form
1NO/1NC
Voltage Rating
125/250VAC
Differential Travel
0.029 in
Operating Temp. Range
-40 Degrees to 85 Degrees C
Electrical Connection - Snap Action Switch
3/16 in Quick Connect
Max. Pretravel
0.125 in
Over Travel
0.085 in
Terminal Type
3/16" Quick Connect
Current Rating
10A
Type of Actuator
Hinge Lever
Watertight - Snap Action Switch
No
Housing Material
Thermoplastic Case and Cover
Operating Force
1.31 oz
Series
V
AC Contact Rating
10 A @ 125 V, 10 A @ 250 V
Body Material
Thermoplastic
Operating Temperature - Minimum
-40 Degrees F
Actuator Style
Lever
Center Mounting Hole Distance
0.87 in
Differential Travel - Maximum
0.029 in
Operating Temperature - Maximum
185 Degrees F
Operating Force - Maximum
1.31 ozf
Operating Force - Minimum
0.36 N
Pretravel
0.125 in
Overtravel
0.085 in
Electrical Connection
Quick Connect
Switch Structure
SPDT
Mounting Hole Horizontal Center to Center Distance
22 mm

Description

Miniature Snap Action Switch, Hinge, Lever, AC Contact Rating - Snap Action Switch 10 A @ 125 V; 10 A @ 250 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1.07 in, Height - Snap Action Switch 0.62 in, Width - Snap Action Switch 1.09 in, Electrical Connection - Snap Action Switch 3/16 in Quick Connect, Mounting Dimension - Snap Action Switch 0.87 in Centers, Series V
