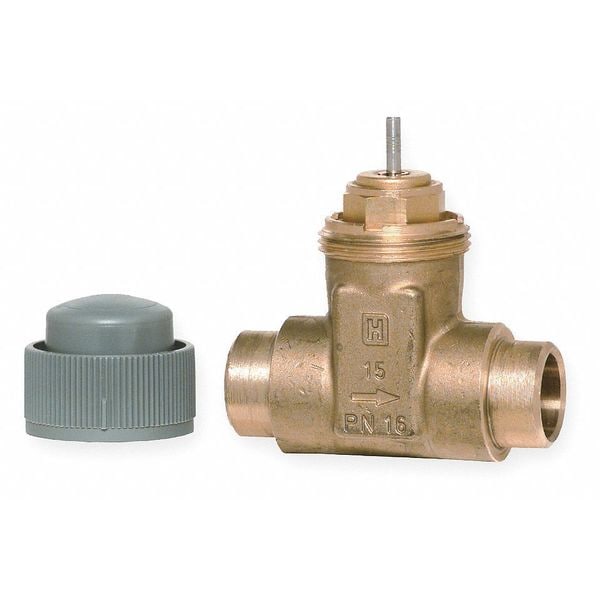

Honeywell Two-Way Sweat Valve, 1/2 In, 1.2 Cv V5852A2049 - main

Two-Way Sweat Valve, 1/2 In, 1.2 Cv

  • Mfr # V5852A2049

  • Zoro # G1832756

product price: $68.79
/ea

Key Features

Type
2-Way, Cartridge
For Use With
Water or Glycol Solution 50% Max
Agency Compliance
CRN
Safe Working Water PSI
240 psi
Description/Special Features
For Use With Series 1000 Actuators: M6410, M7410, M6435, M7435 & Mp958 Pneumatic Actuator
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
V5852A2049
Zoro #
G1832756
UPC #
085267149211
Country of Origin
Germany

Dimensions

Height (In.)
3 in
Connection Type/Size (In.)
Sweat 1/2
Depth (In.)
3 in
Width (In.)
3/4 in
Overall Height
3 in
Overall Length
2 11/32 in
Overall Depth
1 3/16 in
Port Connection Size
1/2 in

Details

Item
Hydronic Globe Valve
Type
2-Way, Cartridge
For Use With
Water or Glycol Solution 50% Max
Agency Compliance
CRN
Safe Working Water PSI
240 psi
Description/Special Features
For Use With Series 1000 Actuators: M6410, M7410, M6435, M7435 & Mp958 Pneumatic Actuator
Max. Water Temp. (Deg. F)
36 to 248
Includes
Installation Manual
Specifications
Long Stroke Allows Wider Range Of Control. Soft Valve Seat Provides Low Leakage Rate. Threaded Plastic Cover/Manual Handle Allows Manual Operation. Easily Installed In Areas Where Space Is Limited.
Coefficient of Volume
1.2
Safe Working Steam PSI
40.5 psi
Specific Valve Action
Stem Down to Close
Operating Temperature - Minimum
36 Degrees F
Rangeability
100:1
Operating Temperature - Maximum
230 Degrees F
Configuration
Straight-Thru
Close-Off Pressure
174 psi
Cartridge Material
Brass
Includes Actuator
Actuator Not Included
Valve Action
Normally Open
Stem Travel
1/4 in
Body Material
Brass
Flow Characteristic
Equal Percentage
Leakage Rate
0.01%
Port Connection Type
Sweat
Stem Material
Stainless Steel
For Media
Water-Glycol Solution to 50%
Port Connection Gender
Female
Coefficient of Volume (Cv)
1.2
Seat Material
Brass
ANSI Rating
ANSI Leakage Class IV
Body Pattern
Two-Way
Manufacturer Series
V58

Description

Hydronic Globe Valve, Actuator Control Pressure - Maximum Not Applicable, Actuator Control Pressure - Minimum Not Applicable, Actuator Control Signal Not Applicable, Actuator Input Voltage Not Applicable, Actuator Return Action Not Applicable, Actuator Type Not Applicable, ANSI Rating ANSI Leakage Class IV, Body Material Brass, Body Pattern Two-Way, Cartridge Material Brass, Close-Off Pressure 174 psi, Coefficient of Volume (Cv) 1.2, Configuration Straight-Thru
