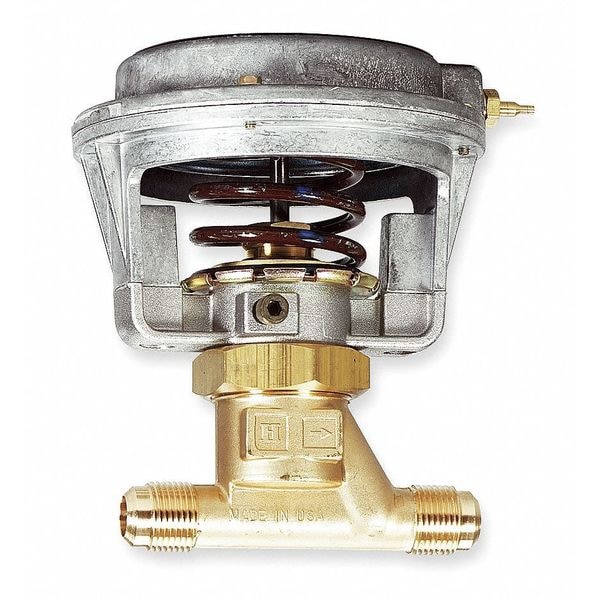

Honeywell Valve, Pneumatic VP513A1188 - main

Valve, Pneumatic

  • Mfr # VP513A1188

  • Zoro # G4878470

product price: $1,541.99
/ea
Free Shipping & Returns

Key Features

Body Material
Bronze
Overall Length
5 1/8 in
Overall Height
5 3/4 in
Spring Range (PSI)
3-7
Body Pressure Rating (PSI)
250 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VP513A1188
Zoro #
G4878470
UPC #
-
Country of Origin
Germany

Dimensions

Overall Length
5 1/8 in
Overall Height
5 3/4 in
Width (In.)
5 1/8 in
Height (In.)
5 3/4 in
Port Connection Size
1/2 in
Overall Depth
5 1/8 in

Details

Item
Hydronic Globe Valve
Body Material
Bronze
Spring Range (PSI)
3-7
Body Pressure Rating (PSI)
250 psi
Close Off Rating @ Main PSI
79 @ 13
Max. Controlled Medium Temp. (F)
250 Degrees F
Features
Rotating Actuator, Aligns Air Connection with Control Air Piping, Brass Lower Seat is Integral and Upper seat is Removable
Type
Unitary
Pipe (In.)
5/8 OD
Valve Type
2-Way NO
Max. Safe Air PSI
30 psi
Function
Integral Seat and Brass Plug with Removable Composition Disc Provides Equal Percentage Flow
Cv
2.5
Application
Chilled/Hot Water Control
Stem Material
Stainless Steel
Seat Material
Brass
For Media
Water
Close-Off Pressure
79 psi
Body Pattern
Two-Way
Configuration
Straight-Thru
Operating Temperature - Maximum
250 Degrees F
Valve Action
Normally Open
Flow Characteristic
Equal Percentage
Coefficient of Volume (Cv)
2.5
Operating Temperature - Minimum
35 Degrees F
Actuator Control Signal
Proportional
Specific Valve Action
Stem Down to Close
Port Connection Type
Flare
Manufacturer Series
VP513A
Allowable Pressure - Maximum
25 psi
Actuator Control Pressure - Minimum
3 psi
Includes Actuator
Actuator Included
Actuator Control Pressure - Maximum
10 psi
Actuator Type
Pneumatic

Description

Hydronic Globe Valve, Actuator Control Pressure - Maximum 10 psi, Actuator Control Pressure - Minimum 3 psi, Actuator Control Signal Proportional, Actuator Input Voltage Not Applicable, Actuator Return Action Not Applicable, Actuator Type Pneumatic, Allowable Pressure - Maximum 25 psi, Application Chilled/Hot Water Control, Body Material Bronze, Body Pattern Two-Way, Close-Off Pressure 79 psi, Coefficient of Volume (Cv) 2.5, Configuration Straight-Thru, Flow Characteristic Equal Percentage
