This item is Discontinued.

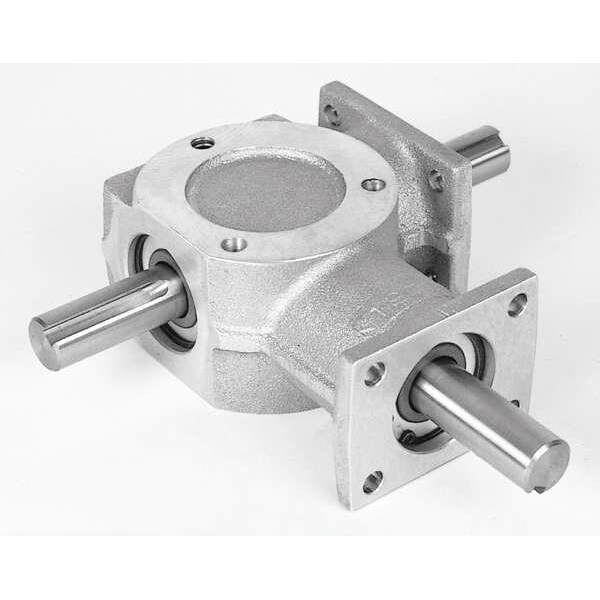

Hub City Gear Drive, Bevel, 1:1 AD2-1/1DESP

Gear Drive, Bevel, 1:1 (Discontinued)

  • Mfr # AD2-1/1DESP
  • Zoro # G4347402
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
AD2-1/1DESP
Zoro #
G4347402
UPC #
-
Country of Origin
United States

Dimensions

Dimension H
17/64 in
Overall Length
6.41 in
Dimension K
1.875 in
Dimension G
1.875 in
Dimension D
2 25/32 in
Output Shaft Height
4 3/4 in
Dimension F
0.937 in
Dimension C
3 5/8 in
Bore Dia.
5/8 in
Dimension W
3/16 in x 3/32 in x 1 7/32 in
Dimension A
2 1/8 in
Output Shaft Dia.
5/8 in
Dimension V
2.005 in/2.000 in
Dimension M
0.687 in
Dimension B
1 9/32 in

Details

Speed Reducer Type
Bevel
Bearings
Precision Ball
Rotation
Reversible
Finish
Tural
Standards
AGMA
Single/Double Output/Universal
Single Output
Item
Gear Drive
Pinion Material
Hardened Steel
Nominal Ratio
1:1
Number of Stages
1
Reducer Model No.
AD2
Mounting
Any Position Except Input Motor Shaft Up
Duty
Standard
Nominal Output RPM
1750
Max. Output Torque
78.70 in-lb
Input RPM
1750
Gear Material
8620 Steel
Max. Input HP
2.19
Housing Material
Cast Aluminum
Seal Type
Double Lip
Shaft Orientation
Right Angle
Gear Type
Spiral Bevel
Lubrication
Lubriplate 5555

Description

Gear Drive, Gear Type Spiral Bevel, Rotation Reversible, Gear Material 8620 Steel
