This item is Discontinued.

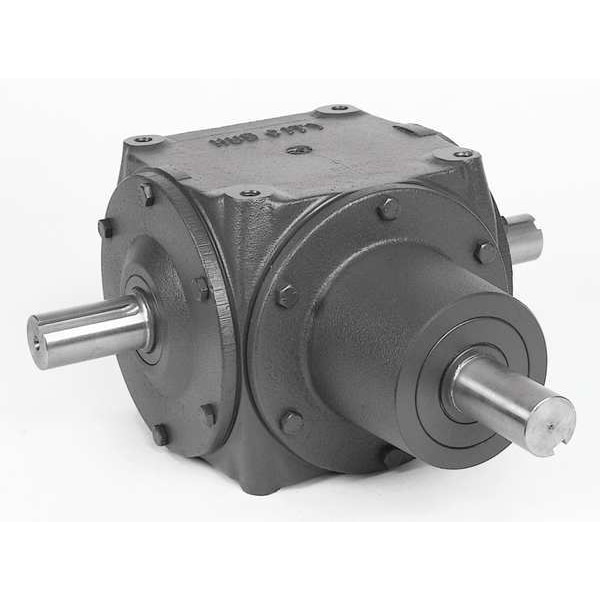

Hub City Gear Drive, Bevel, 2:1 800-2/1ABSP

Gear Drive, Bevel, 2:1 (Discontinued)

  • Mfr # 800-2/1ABSP
  • Zoro # G6439054
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
800-2/1ABSP
Zoro #
G6439054
UPC #
-
Country of Origin
United States

Dimensions

Output Shaft Dia.
1 1/2 in
Dimension C
16 3/32 in
Bore Dia.
1 1/2 in
Output Shaft Height
3 1/16 in
Dimension B
8 3/64 in
Overall Length
16.09 in
Dimension F
1/2 in
Dimension V
8 3/16 in
Dimension W
4 3/32 in

Details

Input RPM
1750
Standards
AGMA
Finish
Painted Gray
Overhung Load
750 lb
Housing Material
Rugged Ductile Iron
Max. Output Torque
4070 in-lb
Duty
Standard
Gear Material
8620 Steel
Base
Optional
Nominal Ratio
2:1
Gear Type
Spiral Bevel
Rotation
Reversible
Pinion Material
Hardened Steel
Bearings
Tapered Roller
Mounting
Any Position Except Input Motor Shaft Up
Nominal Output RPM
875
Shaft Orientation
Right Angle
Max. Input HP
56
Seal Type
Heavy-Duty Industrial
Reducer Model No.
800
Item
Gear Drive
Number of Stages
1
Speed Reducer Type
Bevel
Lubrication
Shipped Dry, Recommend 90W EP
Single/Double Output/Universal
Double Output

Description

Gear Drive, Gear Type Spiral Bevel, Rotation Reversible, Gear Material 8620 Steel
