This item is Discontinued.

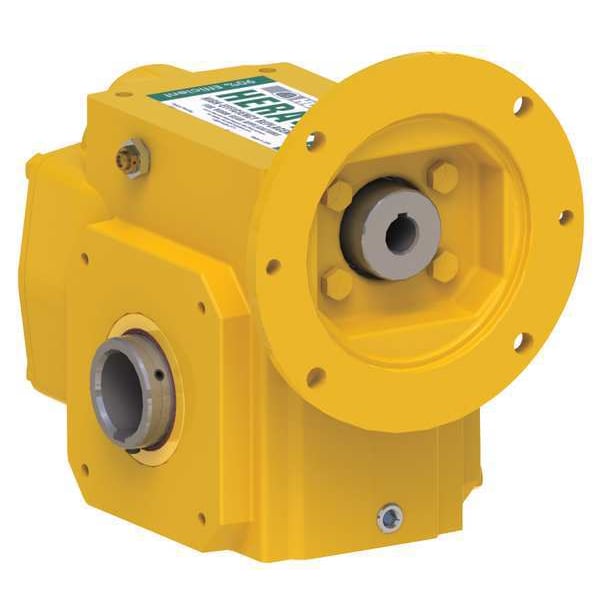

Hub City Speed Reducer, C-Face, 143TC, 50:1 0250-54079

Speed Reducer, C-Face, 143TC, 50:1 (Discontinued)

  • Mfr # 0250-54079
  • Zoro # G2622579
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
0250-54079
Zoro #
G2622579
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
1 1/4 in
Overall Length
9.51 in
Dimension H
2.38 in
Dimension D
2.500 in
Dimension DD
1.438 in
Output Shaft Dia.
1 1/4 in
Dimension L
4.501 in/4.503 in
Dimension M
0.875 in
Dimension K
5.875 in
Dimension U
1.250 in
Dimension B
1.175 in
Dimension G
143TC
Dimension A
4.880 in

Details

Item
Speed Reducer
Nominal Ratio
50:1
Input RPM
1750
Nominal Output RPM
35
Standards
USDA H1
Max. Input HP
1.53
Worm Center Distance
2.38 in to 3.25 in
Frame
143TC
Max. Output Torque
2600 in-lb
Mounting
Universal
Duty
Industrial
Output Torque @ 1/3 HP
535 in-lb
Output Torque @ 1.5 HP
2431 in-lb
Output Torque @ 1 HP
1621 in-lb
Number of Stages
2
Reducer Model No.
HERA45ES
Gear Material
8620 Steel
Output Torque @ 3/4 HP
1215 in-lb
Solid/Hollow Output Shaft
Hollow
Bearings
Ball/Tapered Roller
Output Torque @ 1/4 HP
405 in-lb
Gear Type
Helical-Hypoid
Lubrication
Mobil Glygoyle(R) 460
Pinion Material
Hardened Steel
Speed Reducer Type
C-Face
Finish
Acrylic Coated
Output Torque @ 1/2 HP
810 in-lb
Base
Optional
Seal Type
Double Lip
Rotation
Reversible
Housing Material
Cast Iron
Shaft Orientation
Right Angle

Description

Speed Reducer, Gear Type Helical-Hypoid, Rotation Reversible, Gear Material 8620 Steel
