  9. Back Box, 60 A, 250/600V AC, Not Rated Pole, NEMA 3, 4, 4X

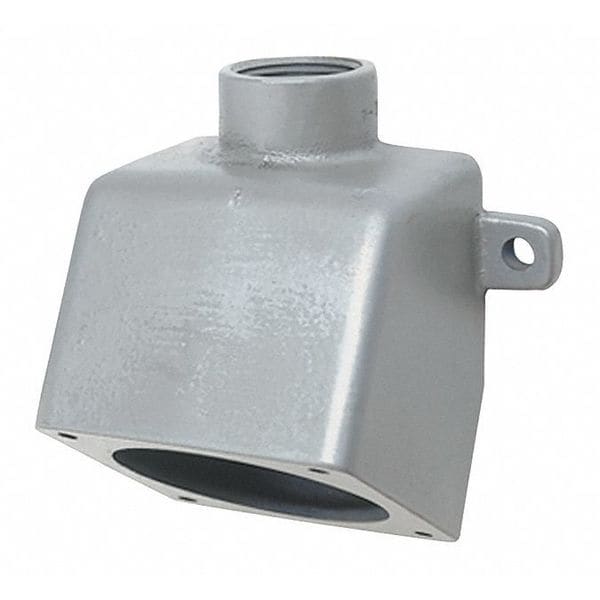

Hubbell Killark Back Box, 60 A, 250/600V AC, Not Rated Pole, NEMA 3, 4, 4X VRE36 - main

Back Box, 60 A, 250/600V AC, Not Rated Pole, NEMA 3, 4, 4X

  • Mfr # VRE36

  • Zoro # G5071020

product price: $129.99
/ea
Free Shipping & Returns

Key Features

Current Rating
60 A
Material
Copper-Free Aluminum
IP Rating
IP67
NEMA Enclosure Rating
3, 4, 4X
Includes
Mounting Feet
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VRE36
Zoro #
G5071020
UPC #
783936834542
Country of Origin
China

Dimensions

Length
4 7/8 in
Width
4 1/2 in
Length (Straight Wireway)
4 7/8 in
Overall Height
4.88 in
Overall Length
4.875 in
Hub Diameter
1 in
Overall Width
3.69 in
Hub Size
1"

Details

Item
Back Box
Current Rating
60 A
Material
Copper-Free Aluminum
IP Rating
IP67
NEMA Enclosure Rating
3, 4, 4X
Includes
Mounting Feet
Wire Connection Type
Screw Terminals
Flange Type
Flanged
For Use With
Versamate Series Receptacles
Housing Color
Gray
Cap Type
No Cap or Cover
Resistance Properties
Moisture Resistant
Box Type
Dead End
Number of Poles
Not Rated
Hub
1 in
Use With
Appleton Powertite Series Pin and Sleeve
Angle
15 Degrees
Number of Wires
0
Standards
CSA LR111846, UL E10757
Finish
Epoxy/Polyester
Compatible with Series
Versamate(R)
Mount Type
Surface
Material Type
Metallic
Hub Type
Dead End
For Location
Indoor, Outdoor
For Environment
Corrosive, Hazardous Location
Voltage Rating
250/600V AC
Box Angle
15 Degrees
Market
Industrial
Hazardous Location Specification
Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G
Number of Gangs
1
Series
VersaMate

Description

Back Box, Box Angle 15 Degrees , Current Rating 60 A, Hub Diameter 1 in, Hub Type Dead End, Material Copper-Free Aluminum, Mount Type Surface, NEMA Enclosure Rating 3, 4, 4X, Number of Gangs 1, For Use With Versamate Series Receptacles, Hazardous Location Specification Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Housing Color Gray, Includes Mounting Feet, Material Type Metallic, Resistance Properties Moisture Resistant, Standards CSA LR111846, UL E10757
