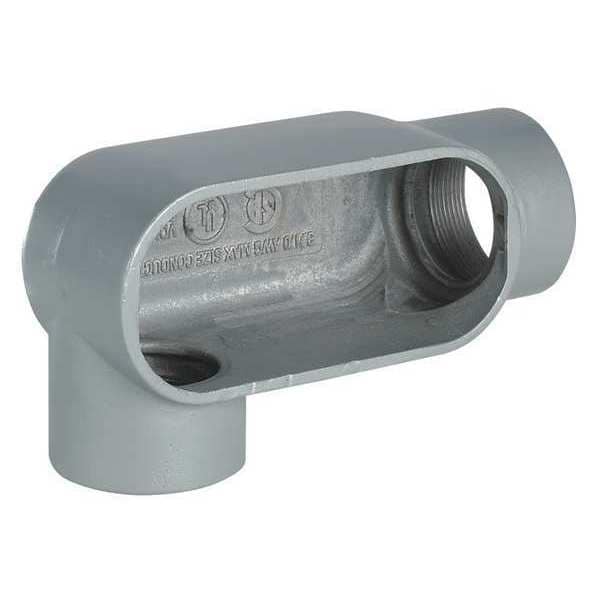

Hubbell Killark Conduit Body, Flat Back, LR Body, 3" Hub LR87 - main

Conduit Body, Flat Back, LR Body, 3" Hub

  • Mfr # LR87

  • Zoro # G5071781

product price: $144.99
/ea
Free Shipping & Returns

Key Features

Conduit Outlet Body Type
Conduit Outlet Body
Hazardous Location
Yes
Hub Size
3 in
Series
Duraloy 7
Conduit Outlet Body Material
Iron
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LR87
Zoro #
G5071781
UPC #
783936011271
Country of Origin
Mexico

Dimensions

Hub Size
3 in
Conduit Outlet Body Hub Size
3 in
Conduit Outlet Hub Size
3"
Thread Size
3 in
Overall Height
5 in
Compatible Conduit Trade Size
3 in
Overall Length
12 in
Overall Width
6 3/4 in
Trade Size
3 in
Length
12 in
Height
5 in
Width
6.750 in
Dimensions
12 in x 6.75 in x 5 in
Each - Width
6.750 in

Details

Conduit Outlet Body Type
Conduit Outlet Body
Item
Conduit Outlet Body
Hazardous Location
Yes
Series
Duraloy 7
Conduit Outlet Body Material
Iron
Conduit Outlet Body Style
LR
Material
Iron
Conduit Outlet Body Capacity
131.5 cu in
Includes
Set Screw Hubs
Conduit Outlet Body Hub Style
Threaded
For Use With
IMC, RMC
Special Features
Set Screw Hubs
Color
Gray
Standards
CSA, UL
Back Type
Flat
Form
Form 7
Body Style
LR
Body Type
Conduit Outlet Body
Connection Type
Threaded
Thread Gender
Female
Hazardous Location Rating
Class I, Division 2, Class I, Zone 2
Shape
LR
Connection Orientation
90 Degrees
Compatible Conduit Type
IMC, RMC
Thread Type
NPT
Number of Hubs
2
Compatible Cover
870, 870C, 870CG, 870CGSA, 870CSA, 870G, 870GSA, 870SA
Body Capacity
131.5 cu in
Hub Style
Threaded
Finish
Powder Coated
Type
Conduit Body
Finish Type
Powder Epoxy Paint
Application
To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
CSA File Number
LR11852
UL File Number
E3397
Hub Pattern
LR
Hazardous Rating(s)
Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).

Description

Conduit Outlet Body, Overall Width 6 3/4 in, Overall Height 5 in, Overall Length 12 in, Trade Size 3 in, Compatible Conduit Trade Size 3 in, Hub Size 3 in, Compatible Cover 870, 870C, 870CG, 870CGSA, 870CSA, 870G, 870GSA, 870SA, Iron, Duraloy 7, Compatible Conduit Type IMC, RMC, Back Type Flat, Body Capacity 131.5 cu in, Body Style LR, Body Type Conduit Outlet Body, Color Gray, Connection Orientation 90 Degrees , Connection Type Threaded, Finish Powder Coated, For Use With IMC, RMC
