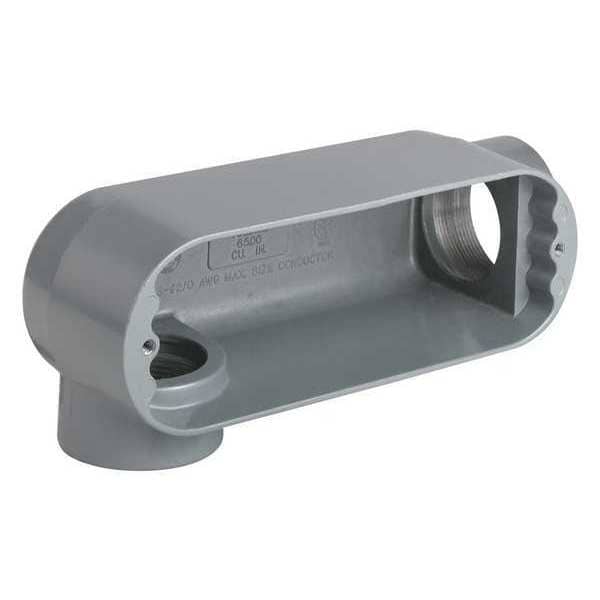

Hubbell Killark Conduit Body, LR Body, Flat Back, Form 5 OLR-7M - main

Conduit Body, LR Body, Flat Back, Form 5

  • Mfr # OLR-7M

  • Zoro # G5071495

product price: $128.99
/ea
Free Shipping & Returns

Key Features

Conduit Outlet Body Type
Conduit Outlet Body
Hazardous Location
Yes
Hub Size
2 1/2 in
Series
O
Conduit Outlet Body Material
Iron
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
OLR-7M
Zoro #
G5071495
UPC #
783936480688
Country of Origin
India

Dimensions

Hub Size
2 1/2 in
Conduit Outlet Body Hub Size
2 1/2 in
Conduit Outlet Hub Size
2-1/2"
Overall Height
4 in
Overall Length
14 in
Overall Width
6 in
Trade Size
2 1/2 in
Compatible Conduit Trade Size
2 1/2 in
Thread Size
2 1/2 in
Height
4 in
Width
6.000 in
Length
14 in
Dimensions
14 in x 6 in x 4 in
Each - Width
6.000 in

Details

Item
Conduit Outlet Body
Conduit Outlet Body Type
Conduit Outlet Body
Hazardous Location
Yes
Series
O
Conduit Outlet Body Material
Iron
Conduit Outlet Body Style
LR
Material
Iron
Conduit Outlet Body Capacity
142.0 cu in
Includes
Set Screw Hubs
Conduit Outlet Body Hub Style
Threaded
For Use With
IMC, RMC
Special Features
Set Screw Hubs
Color
Gray
Standards
CSA, UL
Back Type
Flat
Form
Form 5
Body Style
LR
Compatible Conduit Type
IMC, RMC
Hazardous Location Rating
Class I, Division 2, Class I, Zone 2
Hub Style
Threaded
Connection Type
Threaded
Body Capacity
142 cu in
Connection Orientation
90 Degrees
Shape
LR
Number of Hubs
2
Body Type
Conduit Outlet Body
Thread Type
NPT
Thread Gender
Female
Finish
Powder Coated
Compatible Cover
OL-78M
Hazardous Rating(s)
Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
Application
To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
Type
Conduit Body
Hub Pattern
LR
CSA File Number
LR11852
UL File Number
E3397
Finish Type
Powder Epoxy Paint

Description

Conduit Outlet Body, Overall Width 6 in, Overall Height 4 in, Overall Length 14 in, Trade Size 2 1/2 in, Compatible Conduit Trade Size 2 1/2 in, Hub Size 2 1/2 in, Compatible Cover OL-78M, Iron, O, Compatible Conduit Type IMC, RMC, Back Type Flat, Body Capacity 142 cu in, Body Style LR, Body Type Conduit Outlet Body, Color Gray, Connection Orientation 90 Degrees , Connection Type Threaded, Finish Powder Coated, For Use With IMC, RMC, Hazardous Location Yes
