  15. Hazardous Location Safety Switch, Nonfusible, 3PST, Three Phase, NEMA 3, 4, 4X, 7, 9, Rotary Handle

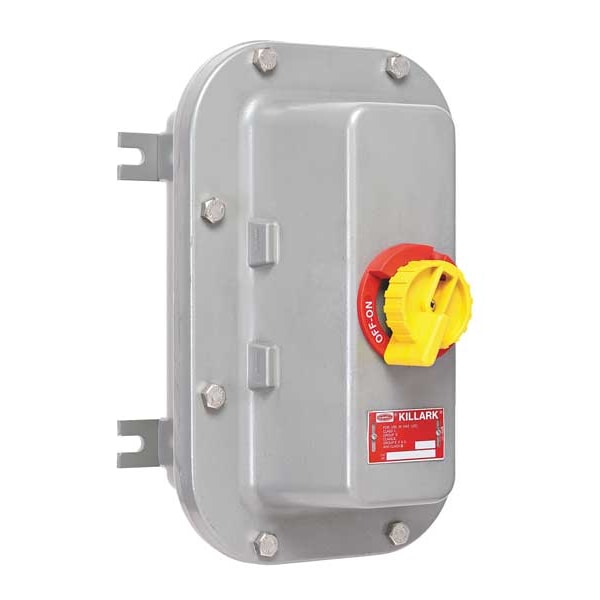

Hubbell Killark Hazardous Location Safety Switch, Nonfusible, 3PST, Three Phase, NEMA 3, 4, 4X, 7, 9, Rotary Handle B7NFD26A - main

CAD Drawings

Download CAD Files

Hazardous Location Safety Switch, Nonfusible, 3PST, Three Phase, NEMA 3, 4, 4X, 7, 9, Rotary Handle

  • Mfr # B7NFD26A

  • Zoro # G2196275

CAD Available
product price: $2,240.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Protection Method
Nonfusible
Contact Form
3PST
Current Rating
60 A
Phase
Three
Environment
Indoor/Outdoor
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
B7NFD26A
Zoro #
G2196275
UPC #
783936009766
Country of Origin
United States

Dimensions

Depth
7 13/16 in
Height
13 1/16 in
Width
8 1/8 in
Standard Conduit Size
2 in
Maximum Enclosure Depth
6.31 in

Details

Item
Hazardous Location Safety Switch
Protection Method
Nonfusible
Contact Form
3PST
Current Rating
60 A
Phase
Three
Environment
Indoor/Outdoor
Enclosure Type
NEMA 3, 4, 4X, 7, 9
HP
40 HP
Voltage
600 V
Handle Color
Red
Handle Type
Rotary Handle
Housing Material
Aluminum
Standards
cCSAus
Safety Rating
Class I, Div. 1 & 2, Groups B,C,D, Class l, Zones 1 & 2, Groups llB+ H2, llA, Class II, Div. 1 & 2, Groups E,F,G, Class III
Includes
Adder
Number of Wires
3 Wire, No Neutral
Material
Aluminum
Fusible / Nonfusible
Nonfusible
Amps
60 A
Number of Poles
3
Neutral Assembly
Not Available
Material of Construction
Copper Free Aluminum
Duty
Heavy Duty
Series
B7NFD Series
Operator
Rotary Handle
Electrical Connection
Bolt
Use
Hazardous Locations; Outdoors or Indoors in Damp, Wet and Dirty Locations; In Areas where Frequent Washdowns, Heavy Rain, or Water Spray Routinely Occurs
Neutral Assembly Included
No
Features
316 Stainless Steel Cover Bolts, Gasketed Flange with Silicone O-Ring, Gray Powder Polyester Painted Exterior, Rotary Handle Operating Mechanism with Lockout
Mounting
Wall
Horsepower @ 240V AC
20 hp
NEC Hazardous Location Classification
Class I, Division 1 & 2, Groups B, C, D, Class I, Zone 1 & 2, Groups IIB+H2, IIA, Class II, Division 1 & 2, Groups E, F, G, Class III, Division 1 & 2
Maximum Operating Temperature
40 Degrees C
Mounting Style
Surface
Horsepower @ 600V AC
40 hp
Horsepower @ 480V AC
40 hp
Frequency Rating
60 Hz
Primary Voltage
600 VAC
Mounting Type
Wall
Action
3P
CSA File Number
LR11714
CAD Available
Yes

Description

Hazardous Location Safety Switch, Contact Form 3PST, Current Rating 60 A, Depth 7 3/4 in, Duty Heavy Duty, Electrical Connection Bolt, Enclosure Type Enclosed, Environment Indoor/Outdoor, Features 316 Stainless Steel Cover Bolts, Gasketed Flange with Silicone O-Ring, Gray Powder Polyester Painted Exterior, Rotary Handle Operating Mechanism with Lockout, For Fuse Class Not Applicable, Height 13 in, Horsepower @ 240V AC 20 hp, Horsepower @ 480V AC 40 hp, Horsepower @ 600V AC 40 hp
