  6. Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, M12, 3 Wires, Unshielded

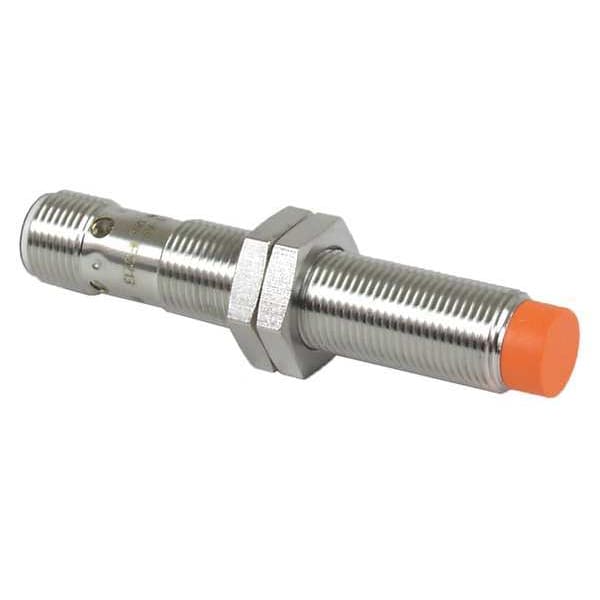

Ifm Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, M12, 3 Wires, Unshielded IFS213 - main

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, M12, 3 Wires, Unshielded

  • Mfr # IFS213

  • Zoro # G7551695

product price:  $43.39
/ea

Key Features

Style
Cylindrical, Inductive
Overall Diameter
12 mm
Proximity Sensing Method
Inductive
Body Material
Brass
Proximity Sensor Power Requirement
10 to 30V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
IFS213
Zoro #
G7551695
UPC #
094720814054
Country of Origin
Germany

Dimensions

Overall Diameter
12 mm
Length
70 mm
Dimensions [mm]
M12 x 1 / L = 70
Overall Height
70 mm

Details

Item
Proximity Sensor
Style
Cylindrical, Inductive
Proximity Sensing Method
Inductive
Body Material
Brass
Proximity Sensor Power Requirement
10 to 30V DC
Electrical Connection
M12
Output Circuit Type
PNP
Output Circuit Number of Wires
3
Sensing Face Shielding
Unshielded
Sensing Distance - Maximum
7 mm
AC Voltage Rating
Not Rated
DC Voltage Rating
10-30V DC
Output Circuit Contact Form
NO
Standards
EN 61000-4-2 ESD, EN 55011, EN 61000-4-3 HF Radiated, EN 61000-4-4 Burst, EN 61000-4-5 Surge, EN 61000-4-6 HF Conducted, UL E174191, UL A003
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
700 Hz
IP Rating
IP67
Max. Current Load
100mA
Description/Special Features
Overload And Short-Circuit Protection, Yellow LED Output Indication
Operating Temp. Range
-13 Degrees to 158 Degrees F
Includes
(2) Lock Nuts
Sensing range [mm]
7
Operating distance [mm]
0...5.7
Correction factor
steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Max. voltage drop switching output DC [V]
2.5
Mounting
non-flush mountable
Display
switching status 4 x LED, yellow
UL approval
Ta 0...40°C Enclosure type Type 1 power supply Hazardous voltage UL Approval no. A003 File number UL E174191
Special feature
Gold-plated contacts; Increased sensing range
Increased sensing range
yes
Overload protection
yes
Current consumption [mA]
< 10
Operating voltage [V]
10...30 DC
Protection class
II
MTTF [years]
1528
Ambient temperature [°C]
-25...70
Application
Industrial applications / factory automation
Switch point drift [% of Sr]
-10...10
EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-5 Surge 0,5 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B
Real sensing range Sr [mm]
7± 10 %
Permanent current rating of switching output DC [mA]
100
Items supplied
lock nuts: 2
Hysteresis [% of Sr]
3...15
Reverse polarity protection
yes
Max. leakage current [mA]
0.5
Thread designation
M12 x 1
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
Embedded software included
yes
Switching frequency DC [Hz]
700
Electrical design
PNP
Protection
IP 67
Materials
brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated
Short-circuit protection
yes
Housing
threaded type
Ambient temperature [°C]
-25...70
Electrical Installation Type
Direct Connector
Operating Temperature - Maximum
158 Degrees F
Body Finish
Bronze Coated
Operating Temperature - Minimum
-13 Degrees F
Switching Frequency
700 Hz
Includes Indicator Lights
Indicator Lights Included
Output Circuit Current - Maximum
100 mA
Number of Pins
4
Output Circuit Voltage - Maximum
2.5 V DC

Description

Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 10 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 700 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 7 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, IP Rating IP67, Case Material Brass White Bronze Coated, Length 70 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
