Hubbell Killark

Incandescent Light Fixture, A-23/PS-25

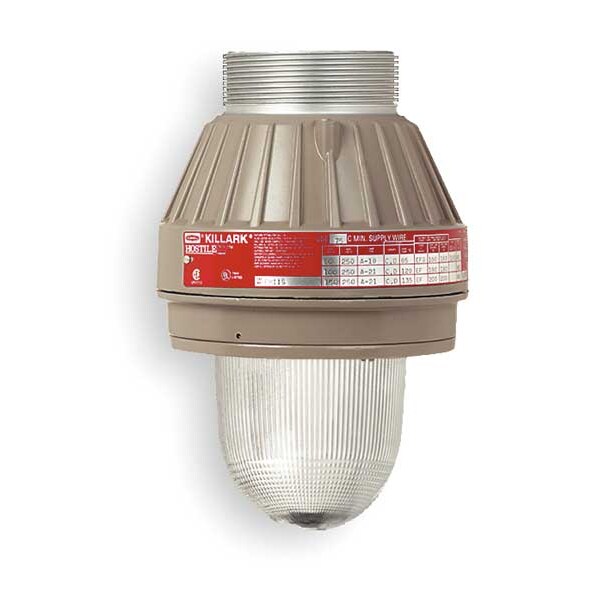

Hubbell Killark Incandescent Light Fixture, A-23/PS-25 EMI20
Hover or click to zoom Tap to zoom
$500.30
  • Item: Incandescent Light Fixture
  • Fixture Type: Hazardous Location
  • Fixture Wattage: 150/200/300
  • Lamp Watts: 150/200/300
  • Lamp Type: Incandescent
  • Lamp Included: No
  • Ambient Temp. Range: -40 Degrees F
  • Mounting: Ceiling/Pendant/Stanchion/Wall
See full product details
This item ships free.

Total: $500.30

Hubbell Killark #EMI20 Specifications

  • Item: Incandescent Light Fixture
  • Fixture Type: Hazardous Location
  • Fixture Wattage: 150/200/300
  • Lamp Watts: 150/200/300
  • Lamp Type: Incandescent
  • Lamp Included: No
  • Ambient Temp. Range: -40 Degrees F
  • Mounting: Ceiling/Pendant/Stanchion/Wall
  • Length: 7 7/16 in
  • Height: 10 5/16 in
  • Housing Finish: Powder Epoxy Paint
  • Width: 7 7/16 in
  • Lamp Quantity: 1
  • Suggested Lamp Item No.: 2PLK5
  • Bulb Designation: A-23/PS-25
  • Housing Material: Aluminum
  • Standards: NEMA 3, NEMA 4, NEMA 4X, 7CD, 9EFG, CSA C22.2 No. 137-M1981, UL Marine Type Electric Lighting Fixtures, UL 1598 Listed, UL 844 Listed
  • Lumens: 6,360 lm
  • Lens Material: Glass
  • Fixture Voltage: 120 to 277V AC
  • Fixture Type - Decorative and Surface Mount Fixtures: Hazardous Location Pendant
  • Item - Decorative and Surface Mount Fixtures: Traditional Surface Mount Fixture
  • Mounting Location: Ceiling, Luminaire, Pendant, Stanchion, Wall
  • Overall Length: 13 in
  • Lumens per Watt: 21 lm/W
  • Safety Rating: Class I, Division 1 and 2, Group C, D, Class I, Zone 1 and 2, Group llB, llA, Class II, Division 1 and 2, Group E, F, G, Class III, Division 1 and 2
  • Lighting Technology: Incandescent
  • Ingress Protection Rating: 66
  • For Bulb Type: Incandescent
  • Mounting Style: Luminaire
  • Temperature Code: T4
  • Hazardous Class: Class I/Division 1, Class I/Division 2, Class II/Division 1, Class II/Division 2, Class III/Division 1, Class III/Division 2
  • Emergency Battery Backup: No
  • Min. Ambient Temp.: -40 Degrees F
  • Color Temperature: 2300K
  • Overall Width: 8 in
  • For Number of Bulbs: 1
  • Max. Fixture Wattage: 300 W
  • For Max. Bulb Wattage: 300 W
  • Lamp Watts - Fixtures: 300 W
  • Shape: Circular
  • Overall Height: 7 1/2 in
  • Series: EM
  • Housing Color: Tan
  • CA Title 24 Compliant: No
  • Number of Bulbs: 1
  • Product Type: Incandescent Light Fixture
  • Light Technology: Incandescent
  • Country of Origin (subject to change): United States

Description

Incandescent Light Fixture, Hazardous Location Fixture Type, Incandescent Lamp Type, Lamp Quantity 1, Bulb Designation A-23/PS-25, Lamp Watts 150/200/300, Suggested Lamp Item No. 2PLK5, Fixture Wattage 150/200/300, No Lamp Included, Ambient Temp. Range -40 Degrees F, Housing Material Copper-Free Aluminum, Tan Housing Finish, Ceiling/Pendant/Stanchion/Wall Mounting, Length 7 7/16 in, Height 10 5/16 in, Width 7 7/16 in
