  9. LEDFix, 16W, 8 1/64"L, 4 3/8"W, 10 7/64"H

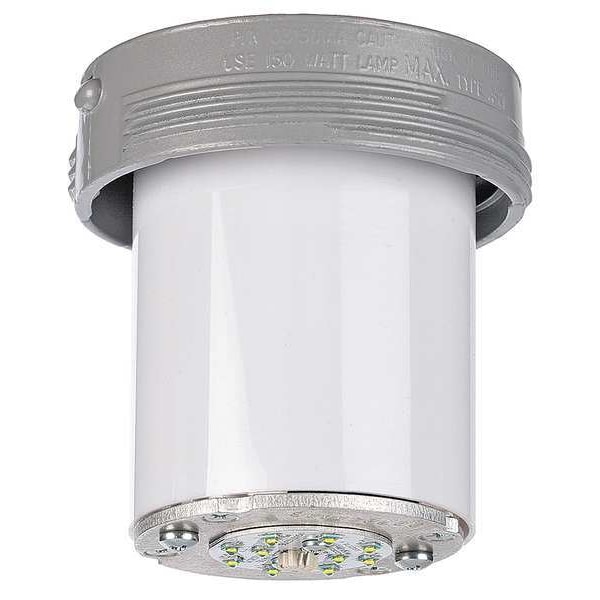

Hubbell Killark LEDFix, 16W, 8 1/64"L, 4 3/8"W, 10 7/64"H VSL1630 - main

LEDFix, 16W, 8 1/64"L, 4 3/8"W, 10 7/64"H

  • Mfr # VSL1630

  • Zoro # G4630604

product price: $500.99
/ea
Free Shipping & Returns

Key Features

Standards
CSA C22.2 No. 137-M1981 Electric Luminaries for Use In Hazardous Locations, UL 1598 Listed for Luminaires, UL 844 Listed for Lighting Fixtures for Hazardous Locations, UL 8750 Listed for LED Lighting
Lumens
1625
Lighting Technology
LED
Housing Material
Aluminum
Voltage
120 to 277V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VSL1630
Zoro #
G4630604
UPC #
783936090795
Country of Origin
United States

Dimensions

Length
4 3/4 in
Width
4 in
Nominal Height
3 3/4 in
Height
3 3/4 in
Nominal Width
4 in
Nominal Length
4 3/4 in
Overall Height
10 7/64 in
Overall Width
4 3/8 in
Overall Length
8 1/64 in
Dimensions
8.02 in x 4.38 in x 10.11 in

Details

Item
LED Fixture
Standards
CSA C22.2 No. 137-M1981 Electric Luminaries for Use In Hazardous Locations, UL 1598 Listed for Luminaires, UL 844 Listed for Lighting Fixtures for Hazardous Locations, UL 8750 Listed for LED Lighting
Lumens
1625
Lighting Technology
LED
Housing Material
Aluminum
Voltage
120 to 277V AC
Fixture Wattage
16
Fixture Warranty
5 yr.
Fixture Housing Color
Gray
Dimmable
No
Color Temperature
5000K
Lamp Included
Yes
Lamp Watts - Fixtures
16 W
Max. Fixture Wattage
16 W
Number of Light Bars
0
Includes
Fixture Body
Finish
Powder Epoxy Paint
Mounting
Ceiling/Pendant/Wall
Housing Finish
Epoxy Powder Coated
Color Rendering Index
70.0
Fixture Type
V Series
Lumens Per Watt
101.6
Mounting Bracket Item Number
22P055, 22P056, 22P057, 22P058, 22P059, 22P060, 22P061
Emergency Battery Backup
No
Lamp Type
LED
Fixture Temp. Range
-40 Degrees to 40 Degrees C
Item - Decorative and Surface Mount Fixtures
LED Surface Mount Fixture
Fixture Type - Decorative and Surface Mount Fixtures
Hazardous Location Pendant
Fixture Housing Material
Aluminum
Fixture Rated Life
60,500 hr
Linkable Up To
Unlinkable
Description/Special Features
16W V SERIES LED ASY 120-277V AC 50/60HZ
Lamp Watts
16
LED Replacement For
100W INC
Ambient Temp. Range
-40 Degrees to 131 Degrees F
IP Rating
IP66
Fixture Voltage
120 to 277V AC
Light Color
Cool White
Type
Aluminum LED Fixture
Application
Killark ‚¬ËœVSL‚¬„¢ Series LED fixtures are designed for installations where moisture, dirt, dust, corrosion and vibration may be present, or NEMA 3 and 4 areas where wind, water, snow or high ambients can be expected. VSL‚¬„¢s are sized to replace ‚¬Å“Utility‚¬ type fixtures (incandescent or CFL‚¬„¢s) in hallways, closets, elevator pits, docks, stairwells, access tunnels, and mechanical rooms. These fixtures can be used in locations made hazardous by the presence of flammable vapors or gases or combustible dusts as defined by the NEC. Typical applications include manufacturing plants, and certain chemical and petrochemical processing facilities, sewage treatment plants, off-shore and dockside installations, and garage areas
Lens Material
Luminaire
Lumens per Watt
101.6 lm/W
Min. Ambient Temp.
-40 Degrees F
Series
VSL
Ingress Protection Rating
66
Mounting Style
Ceiling
Max. Ambient Temp.
131 Degrees F
Safety Rating
Class I, Division 2, Groups A, B, C, D, Class I, Zone 2, Groups IIC,IIB,IIA, Class II, Division 2, Groups F, G, Class III, Division 1 and 2
CA Title 24 Compliant
No
Temperature Code
T5
For Max. Bulb Wattage
16 W
For Bulb Type
LED
Hazardous Class
Class I/Division 2, Class II/Division 2, Class III/Division 1, Class III/Division 2
Mounting Location
Ceiling, Pendant, Wall
Shape
Circular
Housing Color
Gray
Mounting Type
Luminaire Only
Wattage
16 W
Voltage Rating
120-277 VAC
Material
Aluminum, Copper Free (less than 4/10 of 1%)
Frequency
50/60 Hz
Cycle Time
10,000 hrs
Light Source
LED
Package Net Weight
5

Description

LED Light Fixture, Lighting Technology LED, Lumens 1,625 lm, Overall Height 10 1/8 in, Overall Length 8 in, Overall Width 4 3/8 in, Safety Rating Class I, Division 2, Groups A, B, C, D, Class I, Zone 2, Groups IIC,IIB,IIA, Class II, Division 2, Groups F, G, Class III, Division 1 and 2, Color Temperature 5000K, Emergency Battery Backup No, 120 to 277V AC, Dimmable No, Ambient Temp. Range -40 Degrees to 131 Degrees F, CA Title 24 Compliant No, Color Rendering Index 70.0, For Bulb Type LED
