Shop LITHONIA LIGHTING

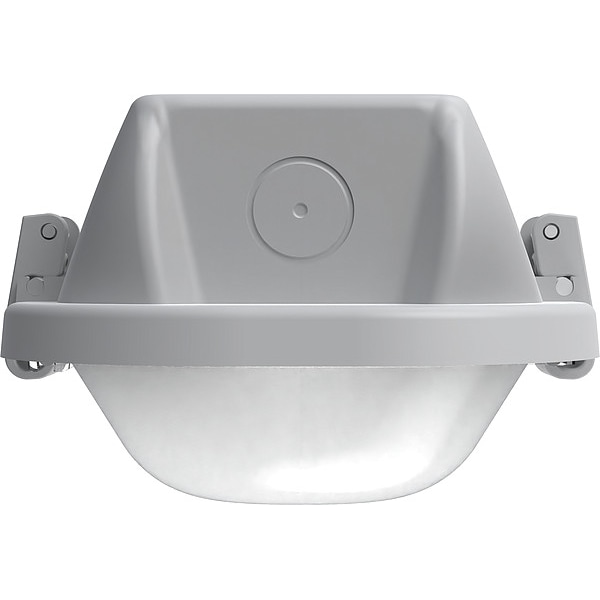

Vapor Tight LED Fixture, 8 ft L, 87 W

  • Mfr # CSVT L96 ALO4 MVOLT SWW3 80CRI

  • Zoro # G808389731

product price:
$
291.99
/ea
Free Shipping & Returns

Key Features

Voltage
120/277V AC
Housing Material
Polycarbonate
LED Replacement For
(2) lamp 32W T8, (2) Lamp 54W T5H0, (3) lamp 32W T8, (4) lamp 32W T8, 100-150W HID
Max. Ambient Temp.
30 Degrees C
Min. Ambient Temp.
-40 Degrees C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CSVT L96 ALO4 MVOLT SWW3 80CRI
Zoro #
G808389731
UPC #
00194995069446
Country of Origin
Mexico

Dimensions

Nominal Length
8 ft
Overall Width
5 3/8 in
Overall Height
3 3/4 in
Overall Length
98 1/4 in
Manufacturers Warranty Length
5 yr
Wire Rope Length
98 1/4 in
Length
98 1/4 in

Details

Item
Vapor Tight LED Fixture
Voltage
120/277V AC
Housing Material
Polycarbonate
LED Replacement For
(2) lamp 32W T8, (2) Lamp 54W T5H0, (3) lamp 32W T8, (4) lamp 32W T8, 100-150W HID
Max. Ambient Temp.
30 Degrees C
Min. Ambient Temp.
-40 Degrees C
Lens Shape
Curved
Warranty
5 yr
Dimming Method
0-10V
Fixture Type
Vapor Tight
Housing Color
Gray
Mounting Style
Suspended, Surface
Light Technology
LED
Lumens
6,000 lm, 8,000 lm, 10,000 lm
Standards
CSA, NOM
Color Temperature
3500K, 4000K, 5000K
Overall Bulb Shape
Integrated LED
For Bulb Type
LED
Linkable
Yes
Lumens per Watt
114 lm/W, 129 lm/W
Sensor Type
No Sensor
Lighting Certification
DLC
Linkable Up To
70 Fixtures
Color Rendering Index
80
Emergency Battery Backup
No
Max. Fixture Wattage
87 W
For Max. Bulb Wattage
87 W
IP Rating
IP65, IP66
Series
CSVT
Fixture Ballast Type
No Ballast Required
Dimmable
Yes
Lens Material
Frosted Polycarbonate
Light Color
White
Rated Life
50,000 hr
Green Certification or Other Recognition
DesignLights Consortium (DLC)(R) Listed
Bulb Included
Integrated LED
Light Output
6,000 lm, 8,000 lm, 10,000 lm
Color Selectable
Selectable
Maximum Fixture Wattage
87 W
For Use With
Aircraft Cable, Chain, Stem
Ambient Temperature - Maximum
86 Degrees F
Lighting Technology
LED
Ambient Temperature - Minimum
-40 Degrees C
Hazardous Location Rating
Not Rated
Light Distribution Shape
Medium
Lumen Selectable
Selectable
Ballast Type
No Ballast Required
NEMA Enclosure Rating
Not Rated

Description

8 ft, Lens Shape Curved, 3500K, 4000K, 5000K, 6,000 lm, 8,000 lm, 10,000 lm, 114 lm/W, 129 lm/W, Max. Fixture Wattage 87 W, LED, Sensor Type No Sensor, Mounting Style Pendant, Surface, Suspended, Linkable No, For Bulb Type LED, LED Replacement For 2, 3 or 4-lamp 32W T8, 2-lamp 54W T5H0, 100-150W HID, Bulb Included Integrated LED, Dimmable Yes, CSVT..
