  9. LightFixTank, LED, 90W, 13 43/64"L, 5 3/8"H

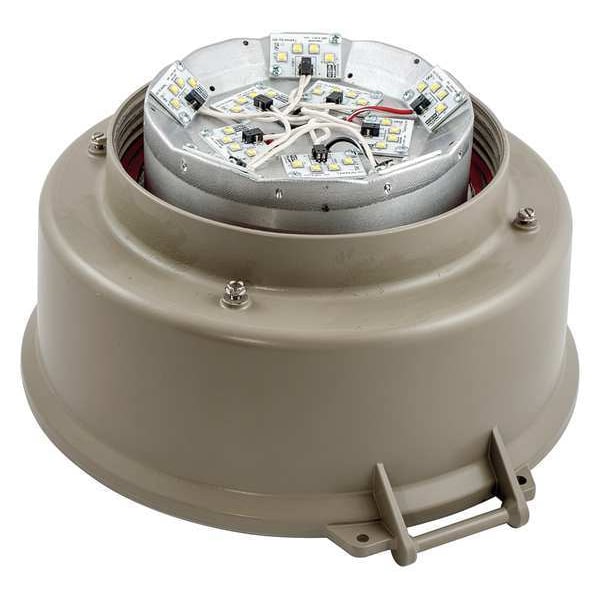

Hubbell Killark LightFixTank, LED, 90W, 13 43/64"L, 5 3/8"H VM4LC09030WW - main

LightFixTank, LED, 90W, 13 43/64"L, 5 3/8"H

  • Mfr # VM4LC09030WW

  • Zoro # G8728781

product price: $2,361.99
/ea
Free Shipping & Returns

Key Features

Standards
NEMA 3, NEMA 4X, cCSAus Certified, Marine Rated (US Only), Listed for Wet Locations
Lumens
12,300 lm
Lighting Technology
LED
Housing Material
Aluminum
Voltage
120 to 277V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VM4LC09030WW
Zoro #
G8728781
UPC #
783936082486
Country of Origin
United States

Dimensions

Length
13 43/64 in
Nominal Width
13 43/64 in
Width
13 43/64 in
Height
5 3/8 in
Nominal Height
5 3/8 in
Nominal Length
13 43/64 in
Overall Length
13 43/64 in
Overall Height
5 3/8 in
Overall Width
13 43/64 in

Details

Item
Light Fixture Tank
Standards
NEMA 3, NEMA 4X, cCSAus Certified, Marine Rated (US Only), Listed for Wet Locations
Lumens
12,300 lm
Lighting Technology
LED
Housing Material
Aluminum
Voltage
120 to 277V AC
Fixture Wattage
90
Lamp Type
LED
Fixture Housing Color
Tan
Fixture Voltage
120 to 277V AC
Color Rendering Index
70
Emergency Battery Backup
No
Lumens Per Watt
113.0
Description/Special Features
Class I, II, III, Suitable for Wet Locations
Max. Fixture Wattage
90 W
Fixture Rated Life
55,000 hr
Lamp Included
Yes
Ambient Temp. Range
-40 Degrees to 149 Degrees F
Mounting
Surface/Suspended
Lamp Watts - Fixtures
90 W
Dimmable
No
Fixture Housing Material
Aluminum
Light Color
Cool White
Fixture Type - Decorative and Surface Mount Fixtures
Hazardous Location Pendant
Fixture Warranty
5 yr.
Housing Finish
Epoxy Powder Coated
Finish
Epoxy Powder Coated
IP Rating
IP66
Fixture Type
Hazardous Location
LED Replacement For
250W MH/400W HPS
Number of Light Bars
0
Lamp Quantity
40
Item - Decorative and Surface Mount Fixtures
LED Surface Mount Fixture
Linkable Up To
Unlinkable
Fixture Temp. Range
-40 Degrees to 55 Degrees C
Color Temperature
5000K
Lamp Watts
90
Lumens per Watt
136.7 lm/W
Ingress Protection Rating
66
Hazardous Class
Class I/Division 2, Class II/Division 1, Class II/Division 2, Class III/Division 1, Class III/Division 2
CA Title 24 Compliant
No
Temperature Code
T4
Mounting Style
Swing Barell Nut
Min. Ambient Temp.
-40 Degrees F
Safety Rating
Class I, Division 2, Group A, B, C, D, Class I, Group IIC, IIB, IIA, Class II, Divisions 1 and 2, Group E, F, G, Class III, Divisions 1 and 2, Zone 2
Max. Ambient Temp.
149 Degrees F
For Max. Bulb Wattage
90 W
Shape
Circular
Series
VM4L
For Bulb Type
LED

Description

Light Fixture Tank, Lighting Technology LED, Lumens 12,300 lm, Overall Height 5 3/8 in, Overall Length 13 11/16 in, Overall Width 13 11/16 in, Safety Rating Class I, Division 2, Group A, B, C, D, Class I, Group IIC, IIB, IIA, Class II, Divisions 1 and 2, Group E, F, G, Class III, Divisions 1 and 2, Zone 2, Color Temperature 5000K, Emergency Battery Backup No, 120 to 277V AC, Dimmable No, Ambient Temp. Range -40 Degrees to 149 Degrees F, CA Title 24 Compliant No, Color Rendering Index 70
