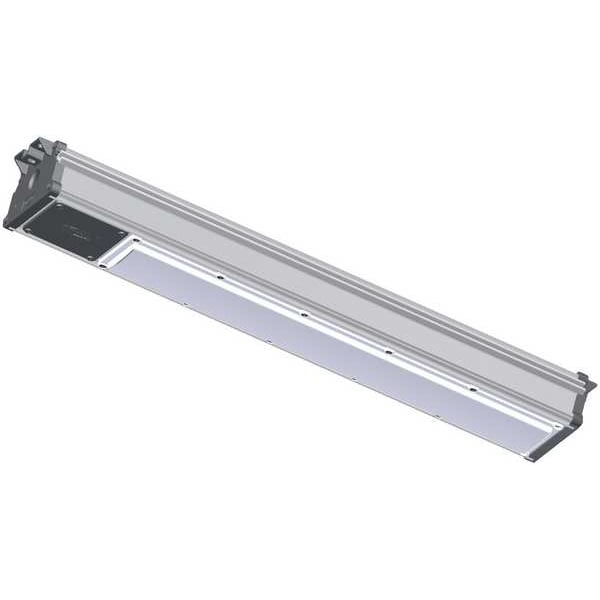

Linear LED, 3321 lm, 120 to 277VAC, 28 W

Mfr # LAL2830D
Zoro # G001059400

1,024.99

Free Shipping & Returns

Key Features

Standards

Class I, Division 2, Groups A, B, C, D, Class I, Zone 2, Groups IIC, IIB, IIA, Class II, Divisions 1 & 2, Groups E, F, G, Class III, Divisions 1 & 2, Zone 2, Zone 21

Lumens

3,321 lm

Lighting Technology

LED

Housing Material

Aluminum

Fixture Voltage

120 to 277V AC

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: LAL2830D
Zoro #: G001059400
UPC #: 783936123271
Country of Origin: United States

Dimensions

Overall Length: 32 5/8 in
Overall Height: 3 7/8 in
Overall Width: 5 3/4 in
Nominal Size - Fixtures: 31 in x 5.75 in x 4 in
Nominal Length: 3 ft
Wire Rope Length: 32 5/8 in
Length: 32 5/8 in

Details

Item: Linear LED
Standards: Class I, Division 2, Groups A, B, C, D, Class I, Zone 2, Groups IIC, IIB, IIA, Class II, Divisions 1 & 2, Groups E, F, G, Class III, Divisions 1 & 2, Zone 2, Zone 21
Lumens: 3,321 lm
Lighting Technology: LED
Housing Material: Aluminum
Fixture Voltage: 120 to 277V AC
Ingress Protection Rating: 66
Lens Material: Polycarbonate
Safety Rating: Class I, Division 2, Groups A, B, C, D, Class I, Zone 2, Groups IIC, IIB, IIA, Class II, Divisions 1 & 2, Groups E, F, G, Class III, Divisions 1 & 2, Zone 2, Zone 21
Finish: Unfinish
Lamp Watts: 28 W
Color Temperature: 5000K
Lighting Certification: Unrated
Color Rendering Index: 70
Lamp Type: Integrated LED
For Max. Bulb Wattage: 28 W
Ambient Temp. Range: -40 Degrees to 149 Degrees F
Mounting Location: Pendant, Surface
Max. Fixture Wattage: 28 W
For Bulb Type: Integrated LED
Includes: Endcaps, Screw, Wiring
Bulbs Included: Yes
Emergency Battery Backup: No
Housing Finish: Unfinish
Max. Ambient Temp.: 65 Degrees C
Lumens per Watt: 118.6 lm/W
Fixture Shape: Linear
BAA Compliant: No
Number of Bulbs: 0
Min. Ambient Temp.: -40 Degrees C
CA Title 24 Compliant: No
Temperature Code: T5
Series: LAL
Dimming Method: No Dimming
Light Color: White
Dimmable: No
Mounting Style: Surface
Color Selectable: Not Selectable
Ambient Temperature - Minimum: -40 Degrees C
Hazardous Location Rating: Class I, Div 2, Group A, B, C, D, Class II, Div 1 and 2, Group E, F, G
LED Replacement For: Lamp 55W
Light Output: 3,321 lm
Linkable: No
Lumen Selectable: Not Selectable
Voltage: 120/277V AC
Light Distribution Shape: Type V
Lens Shape: Flat
IP Rating: IP66
NEMA Enclosure Rating: 3, 4, 4X
Bulb Included: Yes
Ambient Temperature - Maximum: 149 Degrees F
Linkable Up To: Unlinkable
Housing Color: Gray
Maximum Fixture Wattage: 28 W
Ballast Type: Electronic

Description

3 ft, Lens Shape Flat, 5000K, 3,321 lm, 118.6 lm/W, Max. Fixture Wattage 28 W, Sensor Type Not Applicable, Mounting Style Surface, Linkable No, For Bulb Type Integrated LED, LED Replacement For Lamp 55W, Bulb Included Yes, Dimmable No, LAL
