  11. Motor Starter, Toggle, 20A, 3/4In Hubs, 3P

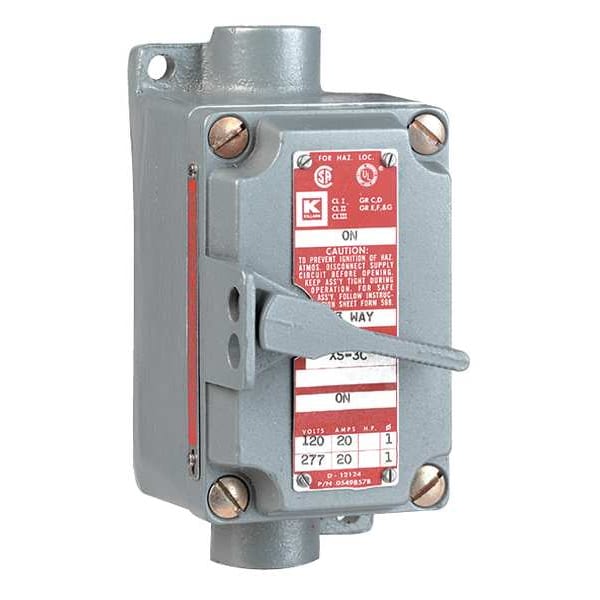

Hubbell Killark Motor Starter, Toggle, 20A, 3/4In Hubs, 3P XSX-53 - main

Motor Starter, Toggle, 20A, 3/4In Hubs, 3P

  • Mfr # XSX-53

  • Zoro # G1631201

product price: $445.99
/ea
Free Shipping & Returns

Key Features

Operator
Toggle
Type
Aluminum Manual Motor Starting Switch Without Overload Protection
Enclosure NEMA Rating
7, 9
Depth
4 in
Number of Required Thermals
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XSX-53
Zoro #
G1631201
UPC #
783936933511
Country of Origin
United States

Dimensions

Depth
4 in
Height
6 in
Width
3 in
Hub Size
3/4 in
Hub Diameter
0.75 in
Mounting Hole Distance - Height
5.25 in
Overall Depth
7.63 in
Overall Width
5.88 in
Overall Height
4.13 in
Mounting Hole Distance - Width
2.25 in
Length
7.625 in
Dimensions
7.625 in x 5.875 in x 4.125 in
Size
7.625 in x 5.875 in x 4.125 in

Details

Operator
Toggle
Type
Aluminum Manual Motor Starting Switch Without Overload Protection
Enclosure NEMA Rating
7, 9
Number of Required Thermals
1
Amps AC
20 A
No. of Thermal Units Required
None
Item
Motor Starter Switch
Starter Type
Manual
Number of Poles
3
Max. Voltage
600V AC
HP @ 115VDC
2 hp
Hub Style
Feed-Thru
HP @ 3 Phase - 230V
3 hp
Description/Special Features
(2) 3/4 in Hubs on Opposing Ends
HP @ 3 Phase - 200V
3 hp
HP @ 3 Phase - 460-575V
5 hp
Standards
CSA
Number of Gangs
1
Material
Copper-free aluminum
Series
XSX
Horsepower @ 115V DC
2 hp
Horsepower @ Three Phase - 208V AC
3 hp
Hazardous Location Specification
Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2
Contact Material
Aluminum
Terminal Connection Type
Screw Clamp
Horsepower @ Single Phase - 240V AC
3 hp
Phase
3
Horsepower @ Three Phase - 600V AC
10 hp
Current AC
20 A
Hub Type
Feed Through
Maximum Voltage Rating
600V AC
Frequency
60 Hz
Includes Pilot Light
Yes
Horsepower @ Three Phase - 480V AC
10 hp
Horsepower @ Three Phase - 240V AC
7 1/2 hp
Starter Style
NEMA
NEMA Enclosure Rating
NEMA 3
Mounting Style
Surface
Horsepower @ Single Phase - 120V AC
2 hp
Frequency Rating
60 Hz
Horsepower - Maximum
10
CSA File Number
LR11714
Special features
Enclosures are cast copper-free aluminum alloy. Operating shaft is stainless steel. Ground flange joint between bolted cover and box provide required flame path. Provisions for padlocking switch in either "ON" or "OFF" position is standard.
Hazardous Rating(s)
Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Power Factor
0.9
Voltage Rating
600 V
Application
Provides manual starting and stopping of small AC or DC motors. Motor running protection when overload heaters are used. XSX Series (without overload protection) is ideally suited for across-the-line applications where a positive disconnect means is requi

Description

Motor Starter Switch, Number of Gangs 1, Current AC 20 A, Hazardous Location Specification Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2, Horsepower @ Single Phase - 120V AC 2 hp, Horsepower @ Single Phase - 240V AC 3 hp, Horsepower @ Three Phase - 208V AC 3 hp, Horsepower @ Three Phase - 240V AC 7 1/2 hp, Horsepower @ Three Phase - 480V AC 10 hp, Horsepower @ Three Phase - 600V AC 10 hp, Includes Pilot Light Yes, Number of Poles 3
