Leviton

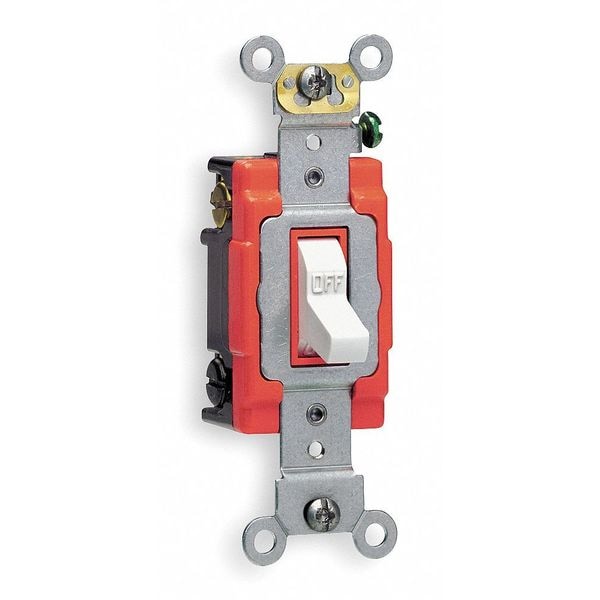

Wall Swtch, 2-Pole, 120/277V, 20A, Wht, Toggl

product price: $9.15
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Switch Type Double Pole
  • Switch Style Toggle
  • Amps AC 20 A
  • Color White
  • Voltage AC 120 to 277
See all product information

Product Information

Dimensions

Minimum Wire Size 14 AWG
Maximum Wire Size 10 AWG
Mount Hole Center-to-Center Height 2.4 in

Details

Item Wall Switch
Switch Type Double Pole
Switch Style Toggle
Amps AC 20 A
Color White
Voltage AC 120 to 277
Locking No
Switch Function Maintained
Wiring Method Back, Side
Application Environment Industrial
Antimicrobial No
Standards ANSI C-73, NEMA WD-6, NEMA WD-1, NOM 57, Rated V-2 Per UL 94, RoHS Compliant
Rated HP 1
Description/Special Features Quiet Switch
Voltage Rating 120/277V AC
Features 10 Year Limited
Horsepower Rating 2 hp
For Environment Industrial
Current Rating 20 A
Strap Material Steel
Minimum Operating Temperature -40 Degrees F
Contact Material Silver Alloy
Grounding Grounded
Wire Connection Type Screw Terminals
Maximum Operating Temperature 149 Degrees F
Housing Material Thermoplastic
Market Commercial, Industrial
Pilot Light No
Number of Switches 1
Illuminated No
Nightlight No

Description

Wall Switch, Color White, Current Rating 20 A, Illuminated No, Pilot Light No, Switch Function Maintained, Switch Type Double Pole, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 2 hp, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Mount Hole Center-to-Center Height 2.4 in, Nightlight No, Number of Switches 1, Standards ANSI C-73, NEMA WD-6, NEMA WD-1, NOM 57, Rated V-2 Per UL 94, RoHS Compliant, Strap Material Steel
