  6. Pin & Slve Plug, 200A, 4P, 4W, 600VAC/250VDC

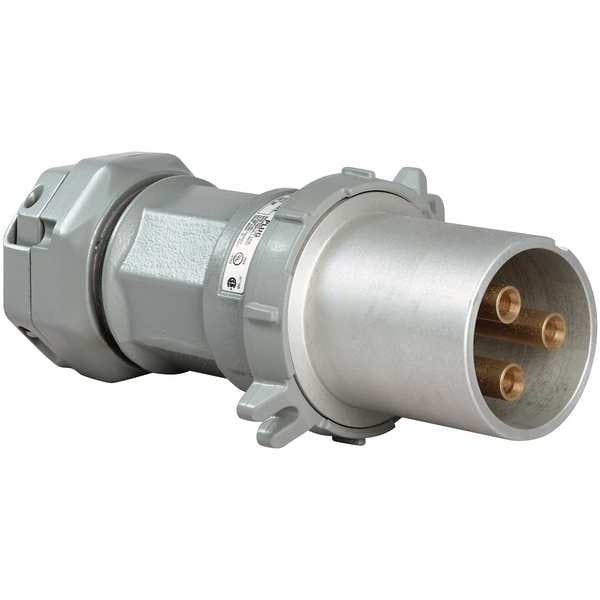

Hubbell Killark Pin & Slve Plug, 200A, 4P, 4W, 600VAC/250VDC VP204513-S39 - main

Pin & Slve Plug, 200A, 4P, 4W, 600VAC/250VDC

  • Mfr # VP204513-S39

  • Zoro # G1998963

product price:  $2,008.99
/ea
Free Shipping & Returns

Key Features

Voltage
600V AC/250V DC
Amps - Plugs and Receptacles
200 A
Amps
200 A
Voltage - Plugs and Receptacles
600V AC / 250V DC
Standards
CSA Certified LR111846, UL E10757
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VP204513-S39
Zoro #
G1998963
UPC #
783936832937
Country of Origin
United States

Dimensions

Maximum Wire Size
1 AWG
Face Diameter
4.063 in
Outside Diameter
6.688 in
Minimum Wire Size
1 AWG
Overall Length
12.625 in
Width
6.38 in
Height
6.38 in
Length
12.62 in
Dimensions
12.62 in x 6.38 in x 6.38 in

Details

Item
Pin and Sleeve Plug
Voltage
600V AC/250V DC
Amps - Plugs and Receptacles
200 A
Amps
200 A
Voltage - Plugs and Receptacles
600V AC / 250V DC
Standards
CSA Certified LR111846, UL E10757
Number of Wires
4
Number of Poles
4
Switch Rated
No
Grounding Style
Style 1
Material
Copper Free Aluminum with Electro Statically Applied Epoxy, Powder Finish
Features
Box Terminals with Gripper Ribs Securely Clamp Conductors, Octagonal Body Style, Suitable for Type P Marine Cable
Phase
Three
Housing Material
Metallic
For Environment
Cold, Corrosive, Hazardous Location, Marine, Wet
Hazardous Location Specification
Class I, Div 1 and 2, Group A, B, C, D
Power Indicating Light
No
Market
Industrial
Connection Orientation
Straight
Wire Connection Type
Screw Terminals
Shrouded
Yes
IP Rating
Not Rated
NEMA Enclosure Rating
4X
For Location
Indoor, Outdoor
Housing Material Finish
Baked Powder Epoxy/Polyester Coated
Current Rating
200 A
Grounding
Grounded
Reverse Service
Yes
Voltage Rating
250V DC, 600V AC
Housing Color
Gray
Hz
50-400 Hz
Type
Pin & Sleeve
Finish
Baked Powder Epoxy/Polyester Finish
Application
Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Reï¬neries, Chemical Plants, Grain Facilities , Textile Manufacturing, Food Processing Facilities
Amperage Rating
200 A
Style
Style I
Finish Type
Baked Powder Epoxy/Polyester Finish
Series
VersaMate
Grommet Range
1.0-2.5
Frequency Rating
50-400 Hz

Description

Pin and Sleeve Plug, Current Rating 200 A, Hazardous Location Specification Class I, Div 1 and 2, Group A, B, C, D, Horsepower Rating Not Applicable, Housing Color Gray, IP Rating Not Rated, Number of Poles 4, Number of Wires 4, Phase Three, Voltage Rating 250V DC, 600V AC, Wire Connection Type Screw Terminals, Cap Type Not Applicable, Connection Orientation Straight, Face Diameter 4.063 in, Grounding Grounded, Grounding Style Style 1, Housing Material Copper-Free Aluminum
